Product Details:
|
| Model: | HSKT10 | Shock Pulse: | Half Sine |
|---|---|---|---|
| Acceleration Range (m/s2): | 20----2000 | Pulse Duration Range (ms): | 0.2~11 |
| High Light: | shock test machine,shock test equipment |
||

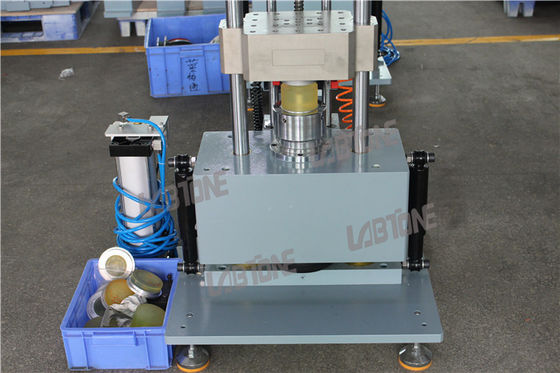

Half sine Shock Test Systems Meets Battery Testing UN/DOT 38.3 for GP Batteries
Test Item Size
Each customer has unique requirements for their dynamic testing equipment. It is important to know the size and weight of test items to correctly configure the appropriate testing equipment. The size of your largest test item will help determine the table surface area. The maximum payload will help determine the shock system performance category.
The precise-type high-acceleration shock tester can provide all half-sine short wave specification specified in JESD22-B110. To meet them, merely change different shock rubber-pad on shock seat. The wave is complete with high repeatability, able to provide user accurate test result.
Conform to different test specs such as JESD22-B110 and IEC spec.
Shock testing systems Specifications
| Model | HSKT10 | HSKT10D |
| Table size (mm) | 200 x200 | 210 x 210 |
| Specimen max weight(kg) | 10 | 10 |
| Shock pulse | Half-sine | |
| Acceleration range (m/s2) | 20----1500 | 20----10000 |
| Pulse duration range (ms) | 0.5~11 | 0.2~11 |
| Seismic base | Pneumatic springs device | |
| Utility reqyurements | AC220V 50Hz 5A Air pressure:more than 0.5Mpa | |
Company profile:
Labtone Test Equipment Co., Ltd. is a +15 year China manufacture of reliable, cost-effective equipments. Our superior products mainly include: Vibration Test Systems, Shock Test Systems, Bump Test Systems, Drop Tester, Packaging Transportation Simulators, and Combined Environmental Test Chambers.
Labtone started business in 2002 in a plant located in Shenzhen and moved to our new, expanded 6,000 square meter facility in Dongguan, Guangdong in 2015. Today, our products are found around the world in electronics, automotive, aerospace, telecommunication, optoelectronics instrument and industrial machinery applications. Our experience and commitment to new product development has resulted in products that are easy to use, accurate and designed for decades of service.
Labtone products carry a one-year(12months) warranty. We provide comprehensive factory services and supports, technical literatures, manuals and guides as well as having qualified staffs and experts to solve your problems.
We sincerely invite you to visit our factory.
