Product Details:
|
Name: | Shock Test Machine With Dual Mass Shock Amplifier Perform Half Sine 10000G 0.2ms | Table Size: | 200 X 250mm |
---|---|---|---|
Specimen Max Weight(kg): | 10 | Shock Pulse: | Half Sine |
Acceleration Range (m/s2): | 20----15000g | Pulse Duration Range (ms): | 0.2~18 |
Highlight: | shock test machine,shock test equipment |
Shock Test Machine With Dual Mass Shock Amplifier Perform Half sine 10000G 0.2ms

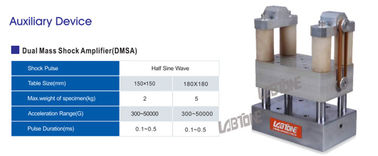

The shock Test system is composed of shock tester, control console and dual mass shock amplifier.

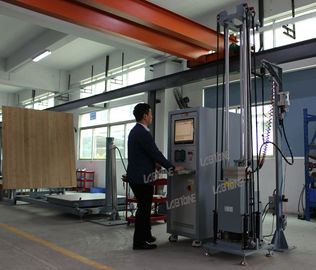

High Speed Drop Shock Tester Specification
Model | HSKT10 | HSKT10D | G-HSKT15 | G-HSKT30 | G-HSKT35 |
Table Size(mm) | 200 x 250 | 300 x 300 | 250 x 250 | 250 x 250 | 250 x 250 |
Max. Payload (kg) |
10 | 25 | 10 | 10 | 10 |
Shock Pulse | Half Sine Wave | ||||
Acceleration Range(G) |
20~2000 (bare table) |
20~10000 (bare table) |
20~15000 (bare table) |
20~30000 (bare table) |
20~35000 (bare table) |
Pulse Duration(ms) | 0.2~18 | 0.1~11 |
Model | SKT30 | SKT50 | SKT100 | SKT200 | SKT300 | SKT600 | SKT1000 | ||
Table Size (cm) | 40 x 40 | 50 x 60 | 70 x 80 | 100 x 100 | 120 x 120 | 150 x 150 | 200 x 200 | ||
Max. Specimen Weight(kg) | 30 | 50 | 100 | 200 | 300 | 600 | 1000 | ||
Max. Acceleration (G) |
Half Sine | 600 | 600 | 600 | 500 | 500 | 300 | 300 | |
Saw-tooth | 100 | 100 | 100 | 100 | 100 | 100 | 100 | ||
Square | 150 | 150 | 150 | 100 | 100 | 100 | |||
Pulse duration (ms) |
Half Sine | 30—0.5 | 30~1 | 30~1 | 30~2 | 20~3 | 20~3 | 20~3 | |
Saw-tooth | 18~6 | 18~6 | 18~6 | 18~6 | 18~6 | 16~6 | 18~6 | ||
Square | 30~6 | 30~6 | 30~6 | 30~6 | 30~6 | 30~6 | |||
Controller cabinet dimension(cm) | W55*D50*H80 | ||||||||
Machine weight(Kg) | 1900 | 2300 | 3200 | 4200 | 8500 | 15500 | 21500 | ||
Power supply | 3(phase) AC380V 50/60Hz Compressed air 0.5~0.8MPa | ||||||||
Standards | GB/T2423-2008 GJB1217 GJB360.23 GJB150 GJB548 MIL-STD-202F IEC-68-2-27 MIL-STD-883E MIL-STD-810F ISTA UL |
Application
Apply high acceleration to computer's parts, digital cameras, smart phones, tablets, mobiles, displays, small household appliances, and mobile products for the Product fragility testing.
HSKT is the best Shock Machine to make sure the product, smartphones, tablets, computers and others mobiles can withstand shock. Apply high acceleration to computer's parts, Batteries , smart phones, tablets, laptop, cellular phones, and mobile products for product fragility test.
The equipment conforms to such testing specifications as GB/T2423-2008, GJB150, GJB360, GJB548, GJB1217, UN38.3, MIL-STD-202F, IEC-68-2-27, MIL-STD-810F, MIL-STD-883E, etc.
High Speed Drop Shock Tester Main Feature
Presales:
In-Sales:
After-Sales:
Details images :
