Shock Impact High Acceleration Shock Test Equipment for Electronic Products Test

Shock Impact High Acceleration Shock Test Equipment for Electronic Products Test
Shock Impact High Acceleration Shock Test Equipment for Electronic Products Test Shock Impact High Acceleration Shock Test Equipment for Electronic Products Test Shock Impact High Acceleration Shock Test Equipment for Electronic Products Test

Large Image :  Shock Impact High Acceleration Shock Test Equipment for Electronic Products Test

Product Details:
Place of Origin: CHINA
Brand Name: LABTONE
Certification: CE, ISO
Model Number: HSKT10
Payment & Shipping Terms:
Minimum Order Quantity: 1SET
Price: Negotiable
Packaging Details: International wooden case
Delivery Time: 45 working days
Payment Terms: T/T
Supply Ability: 15 Sets / Month
Contact Now

Shock Impact High Acceleration Shock Test Equipment for Electronic Products Test

Description
Model: HSKT10 Table Size: 200 X 250 Mm
Specimen Max Weight(kg): 10 Kg Shock Pulse: Half Sine
Acceleration Range: 20-2000 G Pulse Duration Range: 0.2~18 Ms
High Light:

mechanical shock test

,

shock test machine



Shock Impact High Acceleration Shock Test Equipment for Electronic Products Test





Product description


The precise-type high-acceleration shock tester can provide all half-sine short wave specification specified in JESD22-B110. To meet them, merely change different shock rubber-pad on shock seat. The wave is complete with high repeatability, able to provide user accurate test result.
Conform to different test specs such as JESD22-B110 and IEC spec.

  • TouchTest Shock 2 Controller for easy and safe operation
  • Forged aluminum table design for generating high acceleration shock pulses
  • Electric hoist lifting and positioning system enables precise drop repeatability
  • Floating Seismic Base to limit the shock energy that transmits to the floor
  • Full range of applications training programs available
  • Worldwide Customer Service department



Parameter:



Main parameters of the shock tester HSKT10
Operating platform 200 × 250 mm
Max. load 10KG
Peak acceleration 20 to 2000G
Pulse duration 0.2~18ms
Equipment dimensions 660 × 700 × 1900 mm
Equipment weight 820 kg
Power supply AC 220V±10％50Hz,2kVA
Compressed Air great than 0.5Mpa
Shock measuring and analyzing system
Input channels 2 channels
Sampling frequency 192KHz
Pulse duration 50-1ms
Communication interface USB2.0
Supportive standard ISO, UN38.3,MIL-STD-810, user defined
Operating system Microsoft Windows7/10
System acceleration sensor
Brand LAB
Model 23108
Output mode Charge type
Sensitivity 10pC/g
Frequency range 0.5 to 12KHz
Acceleration range 2000G
Operating environment -40 to +160℃




Product Option Highlights
  • Customized table mounting patterns available
  • Acceleration Kits to increase velocity change performance
  • Low Impulse Kits to extend low level testing capability
  • Dual Mass Shock Amplifiers to generate extremely high acceleration levels (10,000g+)
  • Additional Shock Pulse Programmers for short and long duration half sine, trapezoidal, and terminal peak sawtooth shock pulses
  • Test Partner Data Acquisition and instrumentation for data collection and analysis





Warranty: 12 months from delivery, lifelong time maintainance.

After-sale service: feedback within 4-8 hours after get the call or email.

Service: OEM, ODM



Certificate: China official third-party calibration report / CE Certification



Welcome to contact us with your vibration test inquiry.





Company Profile:



Labtone Test Equipment Co., Ltd. is a +15 year China manufacture of reliable, cost-effective equipments. Our superior products mainly include: Vibration Test Systems, Shock Test Systems, Bump Test Systems, Drop Tester, Packaging Transportation Simulators, and Combined Environmental Test Chambers.

Labtone started business in 2002 in a plant located in Shenzhen and moved to our new, expanded 6,000 square meter facility in Dongguan, Guangdong in 2015. Today, our products are found around the world in electronics, automotive, aerospace, telecommunication, optoelectronics instrument and industrial machinery applications. Our experience and commitment to new product development has resulted in products that are easy to use, accurate and designed for decades of service.

Labtone products carry a one-year(12months) warranty. We provide comprehensive factory services and supports, technical literatures, manuals and guides as well as having qualified staffs and experts to solve your problems.

We sincerely invite you to visit our factory.

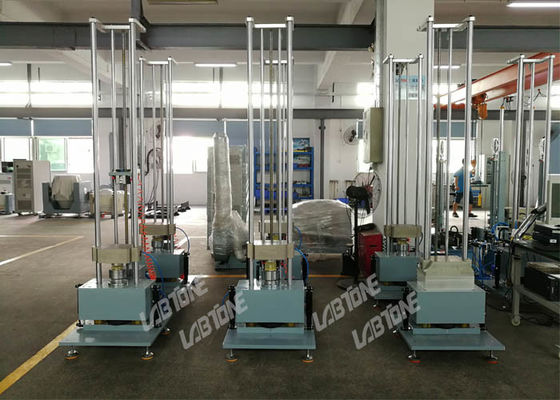

Detailed Picturers:





Shock Impact High Acceleration Shock Test Equipment for Electronic Products Test 0



Shock Impact High Acceleration Shock Test Equipment for Electronic Products Test 1
