Product Details:
|
| Max. Payload: | 300kg | Max. Dimension Of Specimen: | 1200x1200x1600 Mm |
|---|---|---|---|
| Max. Shock Distance: | 3-5 Meter (discussible) | Impact Velocity Range: | 1 - 2.1 M/s |
| Stanards: | ASTM, ISTA, ISO | Power Supply: | 3ph 380V 50/60Hz |
| High Light: | shock test machine,shock test equipment |
||

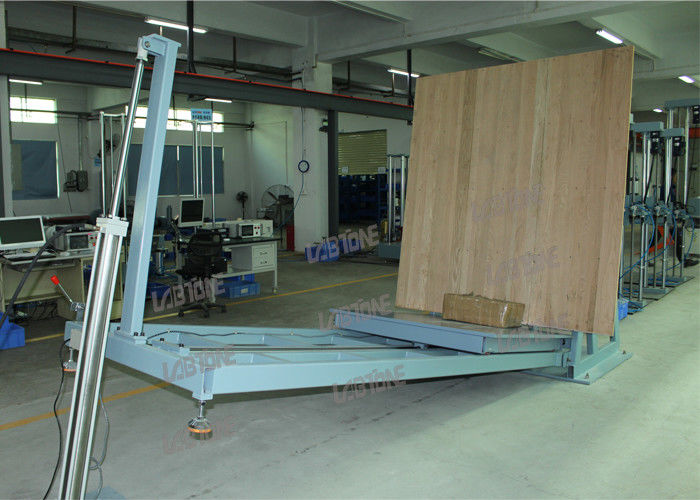

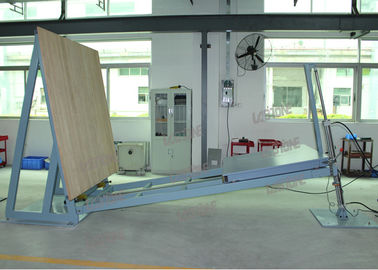

Inclined Impact Testing Machine for Carriage Testing with ASTM Standard
Features:
■The system is operated pneumatically, fast operation, safe and reliable.
■ The angle between the guide surface and the horizontal level is 10°.
■ Perfect protection device and safety interlock device to ensure the safety of the operator.
■ Accept special customization, additional installation speed measuring device, provide accurate impact velocity measurement.
Product Application:
Inclined impact tester is simulated the impact strength of packaging in the real circumstance of transportation, for example, the transportation of goods. This product is applied to the scientific research institutions, colleges, packaging technique test centers, packaging material manufacturers and foreign trade or transportation departments.
Technical Parameter:
|
Max. Payload |
200, 300 KG |
|
Max. Impact Velocity |
2.8 m/s |
|
Max. Shock Distance |
5M(or discussion) |
|
Tolerance of Shock Distance |
±3% |
|
Max. Size of Specimen |
1200*1200*1600 mm |
|
Sliding trolley |
600×550×2500 mm |
|
Impact base size |
1800*2000 mm |
| Power | 3phase 380v 50/60Hz |
|
Standards |
JB/T6868-93 ISO2248-1972(E) |
Product Detail:
Simulation Animatronic Customer Triceratops are covered with air bubble film before put them into the wooden case,which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless,moisture corrosion, good transparency etc
| Pre-sales service |
| Technical Advisory: Testing method, laboratory planning and advice |
| Equipment Selection: Type-selecting scheme,FAQ |
| Product testing scheme |
| Selling service |
| Customer Communication,progress communication |
| Before installation, we will provide guidance of preparation , equipment debugging, equipment commissioning |
| Cooperate with measuring if need the third party verification |
| After-sale service |
| Quality assurance period for one year,lifelong maintenance. |
| Technical guidance |
| Feedback within 2 hours after get the call. |
| Accept OEM,Design service,Buyer lable |
