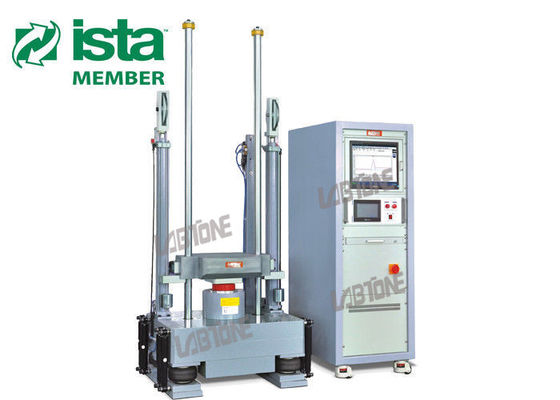

Mechanical Shock Test Machine for 1000kg load Li-ion Battery Test 150G@6ms 100G@11ms

Mechanical Shock Test Machine for 1000kg load Li-ion Battery Test 150G@6ms 100G@11ms
Mechanical Shock Test Machine for 1000kg load Li-ion Battery Test 150G@6ms 100G@11ms Mechanical Shock Test Machine for 1000kg load Li-ion Battery Test 150G@6ms 100G@11ms Mechanical Shock Test Machine for 1000kg load Li-ion Battery Test 150G@6ms 100G@11ms

Large Image :  Mechanical Shock Test Machine for 1000kg load Li-ion Battery Test 150G@6ms 100G@11ms

Product Details:

Place of Origin: CHINA
Brand Name: LABTONE
Certification: CE, ISO
Model Number: SKT1000

Payment & Shipping Terms:

Minimum Order Quantity: 1SET
Price: Negotiable
Packaging Details: International wooden case
Delivery Time: 45 working days
Payment Terms: T/T
Supply Ability: 15 Sets / Month
Detailed Product Description
Table Size: 200*200(CM) Max. Specimen Weight: 1000 Kg
Max. Acceleration: Half Sine: 300G Machine Dimension: 250*220*310 (cm)
Controller Cabinet Dimension: W55*D50*H80 (cm) Machine Weight: 19500 (Kg)
Name: Mechanical Shock Test Machine For Li-ion Battery Test 150G@6ms 100G@11ms
High Light:

mechanical shock test

,

shock test machine

Mechanical Shock Test Machine for Li-ion Battery Test 150G@6ms 100G@11ms​





Product description


Standard Shock Test System is the most popular model for testing small to mid-size components and systems. The Programmer allows the operator to perform the two shock pulse waveforms commonly used for fragility testing—short duration half sine and long duration trapezoidal shock pulses. The combination of table size, payload capacity, and pulse quality make this shock test machine the preferred choice for many applications.



Feature



· Generation of Trapezoidal Pulse and Half-sine Pulse.

· Equivalent Drop Test of Packaged Freights.

· The controller can easily set the testing conditions.

· Rebound Brake Mechanism.

· High Rigid Shock Table.

· Seismic Base.

· Self-check Security System.



Applications



· Fragility test of products.

· Shock standard test of products.

· Fragility test for digital cameras, smartphones, tablets, mobiles, displays, small household appliances, cosmetics, electronic parts, large-sized office machines, refrigerators and etc.

· Shock standard test for digital cameras, smartphones, tablets, mobiles, displays, small household appliances, cosmetics, electronic parts large-sized office machines, refrigerators and etc.

· Free drop equivalent test packaged freights.







Product Option Highlights



  1.  Low-frequency Seismic Base to limit the shock energy that transmits to the floor
  2. Customized table mounting patterns available
  3.  Low Impulse Kits to extend the low-level testing capability
  4.  Dual Mass Shock Amplifiers to generate extremely high acceleration levels (10,000g+)
  5.  Hold Down Fixtures for securing test items
  6.  Additional Shock Pulse Programmers for long duration half sine and terminal peak sawtooth shock pulses
  7.  Opposing Force Gas Programmers for longer duration half sine shock pulses (30+ msec)
  8.  Test Partner Data Acquisition and instrumentation for data collection and analysis





Shock testing systems Specifications



Model SKT30 SKT50 SKT100 SKT200 SKT300 SKT600 SKT1000
Table size (cm) 40*40 50*60 70*80 100*100 120*120 150*150 200*200
Maximum Specimen Weight(Kg) 30 50 100 200 300 600 1000
Max acceleration(G) half-sine 600 600 600 500 500 300 300
saw-tooth waveform 100 100 100 100 100 100 100
square 150 150 150 150 100 100 100
Pulse Duration (ms) half-sine 40—0.2 40~1 40~1 30~2 20~3 20~3 20~3
saw-tooth waveform 18~6 18~6 18~6 18~6 18~6 18~6 18~6
square   30~6 30~6 30~6 30~6 30~6 30~6
Machine Dimension(cm) 120*110*245 130*140*260 130*120*260 150*130*260 200*160*300 230*180*310 250*220*310
Controller cabinet Dimension(cm) W55*D50*H80
Machine Weight(Kg) 1900 2300 3200 4200 8500 15500 19500
Utility 3-phase AC380V 50/60Hz 0.5~0.8MPa
Requirements
Conforming standards GB/T2423-2008 GJB1217 GJB360.23 GJB150 GJB548 MIL-STD-202F IEC-68-2-27 MIL-STD-883E MIL-STD-810F ISTA UL
