2000G Half Sine Shock Test Machine , Mechanical Shock Test System with Controller

2000G Half Sine Shock Test Machine , Mechanical Shock Test System with Controller
2000G Half Sine Shock Test Machine , Mechanical Shock Test System with Controller 2000G Half Sine Shock Test Machine , Mechanical Shock Test System with Controller 2000G Half Sine Shock Test Machine , Mechanical Shock Test System with Controller

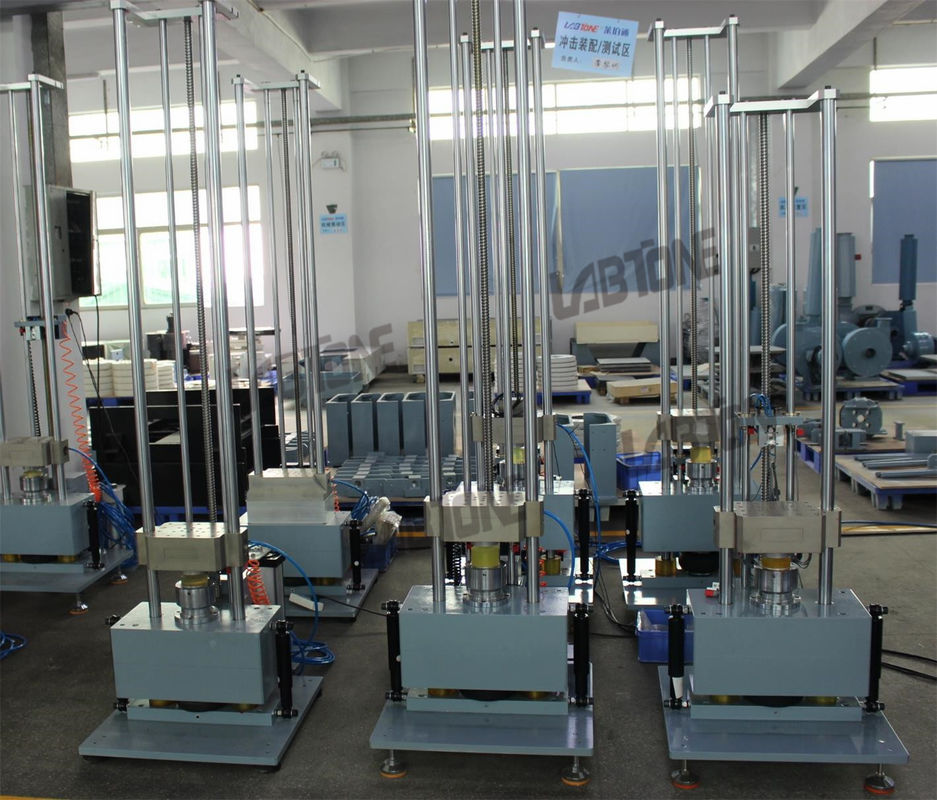

Large Image :  2000G Half Sine Shock Test Machine , Mechanical Shock Test System with Controller

Product Details:

Place of Origin: CHINA
Brand Name: LABTONE
Certification: CE, ISO
Model Number: HSKT10

Payment & Shipping Terms:

Minimum Order Quantity: 1SET
Price: Negotiable
Packaging Details: International wooden case
Delivery Time: 45 working days
Payment Terms: T/T
Supply Ability: 15 Sets / Month
Detailed Product Description
Model: HSKT10 Table Size: 200 X 250 Mm
Specimen Max Weight: 10 Kg Shock Pulse: Half Sine
Acceleration Range: 20-2000 G Pulse Duration Range: 0.2~18 Ms
High Light:

mechanical shock test

,

shock test equipment



2000G Half Sine Shock Test Machine , Mechanical Shock Test System with Controller





Shock testing systems Specifications


Model HSKT10 HSKT30
Table size (mm) 200x250 300x300
Shock pulse Half sine
Maximum Specimen Weight(Kg) 10 30
Acceleration Range(G) 20 ~ 2000 20 ~ 1500
Pulse Duration (ms) 0.2~18 0.5~30
Machine Dimension(mm) 660x700x2380 720x680x1890
Utility
Requirements
AC220V 50Hz 5A,Air pressure: more than 0.5Mpa
Machine Weight(Kg) 820 650





Product description



The HSKT series shock test system is mainly applicable to shock resistance tests in such fields as electronic products, battery products, aerospace, ship, military industry, automotive parts and transportation. Shock testsare in form of half sine wave, saw tooth wave or trapezoidal wave. Shock tests can be carried out by selecting different waveform generators.





Features :



-Free drop type shock tester using hydraulic lifting and HP fluid braking;

-Use of pneumatic-hydraulic boosting and strong friction brake to prevent secondary shock braking;

-Shock measurement device: single-channel data acquisition, simultaneous acceleration data measurement, storage, report printing, -data callback, database management of two channels.

-Use of rubber module, producing a wide range of half sine pulse with arbitrary action time.

-Availability for equivalent drop test of packing boxes.

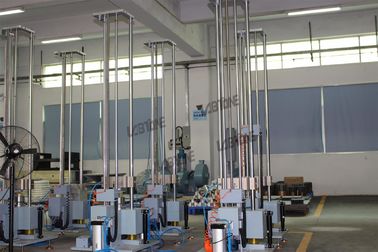

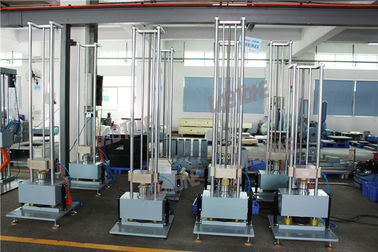

2000G Half Sine Shock Test Machine , Mechanical Shock Test System with Controller 02000G Half Sine Shock Test Machine , Mechanical Shock Test System with Controller 1
