0.2-18ms Mechanical Shock Test Machine with Sensor and Shock Measurement Analyzer

0.2-18ms Mechanical Shock Test Machine with Sensor and Shock Measurement Analyzer
0.2-18ms Mechanical Shock Test Machine with Sensor and Shock Measurement Analyzer

Large Image :  0.2-18ms Mechanical Shock Test Machine with Sensor and Shock Measurement Analyzer

Product Details:

Place of Origin: CHINA
Brand Name: LABTONE
Certification: CE, ISO
Model Number: HSKT10

Payment & Shipping Terms:

Minimum Order Quantity: 1SET
Price: Negotiable
Packaging Details: International wooden case
Delivery Time: 45 working days
Payment Terms: T/T
Supply Ability: 15 Sets / Month
Detailed Product Description
Model: HSKT10 Table Size: 200 X 250 Mm
Specimen Max Weight: 10 Kg Shock Pulse: Half Sine
Acceleration Range: 20-2000 G Pulse Duration Range: 0.2~18 Ms
High Light:

mechanical shock test

,

shock test machine



0.2-18ms Mechanical Shock Test Machine with Sensor and Shock Measurement Analyzer





Main performance

    - Free drop type shock tester using hydraulic lifting and HP fluid braking;Use of pneumatic-hydraulic boosting and strong friction brake to prevent -
    - secondary shock braking;
    - Shock measurement device: single-channel data acquisition, simultaneous acceleration data measurement, storage, report printing, data callback, database management of two channels.
    - Use of rubber module, producing a wide range of half sine pulse with arbitrary action time.
    - Availability for equivalent drop test of packing boxes.






Product Features

  • TouchTest Shock Controller for easy and safe operation
  • Forged aluminum table design for generating high acceleration shock pulses
  • Acceleration Kit to increase velocity change performance
  • Electric hoist lifting and positioning system enables precise drop repeatability
  • Floating Seismic Base to limit the shock energy that transmits to the floor
  • Full range of applications training programs available
  • Worldwide Customer Service department

Applications

  • Apply high acceleration to computer's parts, digital cameras, smart phones, tablets, mobiles, displays, small household appliances, and mobile products for the Product fragility testing.



Equipment composition



No. Equipment name Model Qty.
1 Shock tester HSKT10 1set
3 Shock Controller SKC-1 1 set
4 Shock measuring and analyzing system ST-2 1 set
5 Sensor LAB 1pcs
6 Computer Acer 1 set
7 Waveform generator HB01 1 set
8 Safety device Audible and visual alarm 1 set
9 Attached accessories Tools, clamps/instructions, installation disc, etc. 1 set





Technical Specifications



Model HSKT10 HSKT30
Table size (mm) 200x250 300x300
Shock pulse Half sine
Maximum Specimen Weight(Kg) 10 30
Acceleration Range(G) 20 ~ 2000 20 ~ 1500
Pulse Duration (ms) 0.2~18 0.5~30
Machine Dimension(mm) 660x700x2380 720x680x1890
Utility
Requirements
AC220V 50Hz 5A,Air pressure: more than 0.5Mpa
Machine Weight(Kg) 820 650

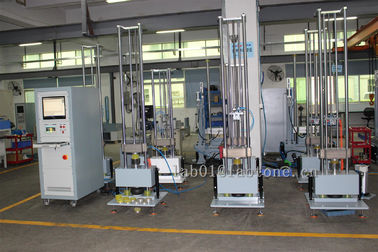

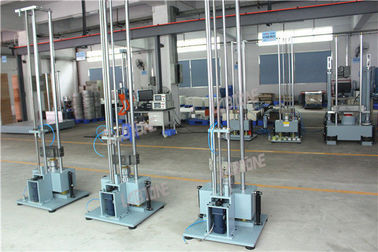

Detaied Pictures:

0.2-18ms Mechanical Shock Test Machine with Sensor and Shock Measurement Analyzer 00.2-18ms Mechanical Shock Test Machine with Sensor and Shock Measurement Analyzer 1
