Half Sine Mechanical Shock Test Machine For Battery Pack Testing Meet GB/T2423-2008

Half Sine Mechanical Shock Test Machine For Battery Pack Testing Meet GB/T2423-2008
Half Sine Mechanical Shock Test Machine For Battery Pack Testing Meet GB/T2423-2008 Half Sine Mechanical Shock Test Machine For Battery Pack Testing Meet GB/T2423-2008 Half Sine Mechanical Shock Test Machine For Battery Pack Testing Meet GB/T2423-2008

Large Image :  Half Sine Mechanical Shock Test Machine For Battery Pack Testing Meet GB/T2423-2008

Product Details:
Place of Origin: CHINA
Brand Name: LABTONE
Certification: CE, ISO
Model Number: SKT500
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Plywood Case with Vacuum Packing
Delivery Time: 30-35 working days
Payment Terms: L/C, T/T
Supply Ability: 15 Sets Per Month
Contact Now

Half Sine Mechanical Shock Test Machine For Battery Pack Testing Meet GB/T2423-2008

Description
Table Size:: 1200 X 1200mm Specimen Max Weight:: 500kg
Max. Acceleration: 300g Pulse Duration Range:: 3~20ms
Shock Pulse:: Half Sine Wave,Saw-tooth Wave,Square Wave Highlight:: Mechanical Shock Test Machine, Shock Test Equipment
Highlight:

Half Sine shock test machine

,

Mechanical shock tester for battery packs

,

Shock test system with GB/T2423-2008

Mechanical Shock Test Machine For Electrical Connectors Meet EIA-364-27B



Product Description


Shock test is used to accurately measure the product fragility and evaluate the protective ability of product packaging. To do a boundary assessment on complete product breakage, industrial standard shock pulse or company’s internal standards, we can provide the most advanced shock test system to meet your application requirements.

Suitable shock tests for aviation, aerospace, marine, military, consumer electronics, automobiles, home appliances and display devices.

By selecting different waveform generators, it can perform half sinusoidal wave, sawtooth wave, or trapezoidal wave.





Technical Specifications



Model SKT50 SKT100 SKT200 SKT300 SKT500 SKT1000 SKT1500
Table size (cm) 40 x 40 50 x 60 70 x 80 100 x 100 120 x 120 150 x 150 200 x 200
Maximum Specimen Weight(Kg) 50 100 200 300 500 1000 1500
Max acceleration(G) half sine 600 600 600 500 500 300 300
saw-tooth waveform 100 100 100 100 100 100 100
square 100 100 100 60 50 50 50
Pulse Duration (ms) half sine 30~1 30~2 30~2 20~3 20~3 20~3 20~3
saw-tooth waveform 18~6 18~6 18~6 18~6 18~6 18~6 18~6
square 12~6 12~6 12~6 12~6 12~6 12~6 12~6
Machine Dimension(cm) 82x90x195 120x105x245 130x120x260 150x130x260 200x160x300 230x180x310 250x250x310
Controller cabinet Dimension(cm) W55 x D50 x H80
Machine Weight(Kg) 1050 2000 3200 4200 8500 15500 21500
Utility 3-phase AC380V 50/60Hz 0.5~0.8MPa
Requirements
Conforming standards GB/T2423-2008 GJB1217 GJB360.23 GJB150 GJB548 MIL-STD-202F IEC-68-2-27 MIL-STD-883E MIL-STD-810F ISTA UL





Application Standards

GB/T2423-2008, GJB1217, GJB360.23, GJB150, GJB548, MIL-STD-202F, IEC-68-2-27, MIL-STD-883E, MIL-STD-810F, ISTA, UL


Application Industry

Aviation, Aerospace, Vessel, Military industry, Consumer Electronics, Automobile, Household Appliances, Display Device etc.


Features

  • User-friendly touching screen operation.Half sine, square waveform shock pulse programmers.High rigidity shock tables.
  • Half sine, square waveform shock pulse programmers.
  • High rigidity shock tables.
  • A full range of safety features.
  • Apply air and hydraulic pressurization, strong friction brake avoiding secondary shock.
  • Apply air spring suspension, hydraulic damping shockproof system, no shock impact on the surrounding, without foundation.

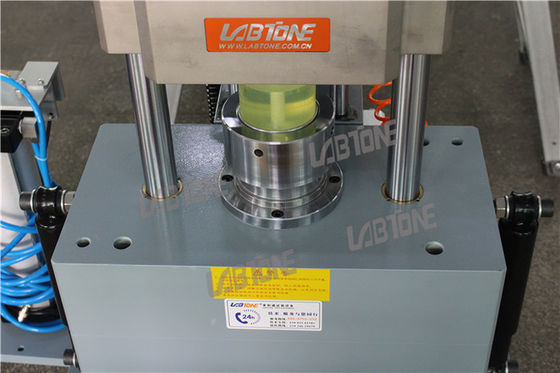

Half Sine Mechanical Shock Test Machine For Battery Pack Testing Meet GB/T2423-2008 0




Warranty: 12 months after installation, lifelong time maintainance.

Certificate: China official Third-party Calibration Report / CE Certification

Our Services


Pre-sales service
Technical Advisory: Testing method, laboratory planning and advice
Equipment Selection: Type-selecting scheme,FAQ
Product testing scheme
Selling service
Customer Communication,progress communication
Before installation, we will provide guidance of preparation , equipment debugging, equipment commissioning
Cooperate with measuring if need the third party verification
After-sale service
Quality assurance period for one year,lifelong maintenance.
Technical guidance
Feedback within 2 hours after get the call.
Accept OEM,Design service,Buyer lable




Detailed picture​:

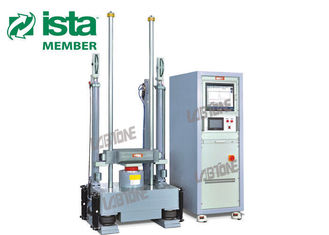

Half Sine Mechanical Shock Test Machine For Battery Pack Testing Meet GB/T2423-2008 1

Half Sine Mechanical Shock Test Machine For Battery Pack Testing Meet GB/T2423-2008 2
