Half Sinusoidal Wave Shock Testing System, 500kg Acceleration Shock Testing System, 500g Acceleration Shock Testing System

Half Sinusoidal Wave Shock Testing System, 500kg Acceleration Shock Testing System, 500g Acceleration Shock Testing System
Half Sinusoidal Wave Shock Testing System, 500kg Acceleration Shock Testing System, 500g Acceleration Shock Testing System Half Sinusoidal Wave Shock Testing System, 500kg Acceleration Shock Testing System, 500g Acceleration Shock Testing System Half Sinusoidal Wave Shock Testing System, 500kg Acceleration Shock Testing System, 500g Acceleration Shock Testing System

Large Image :  Half Sinusoidal Wave Shock Testing System, 500kg Acceleration Shock Testing System, 500g Acceleration Shock Testing System

Product Details:
Place of Origin: CHINA
Brand Name: LABTONE
Certification: CE, ISO
Model Number: SKT500
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Plywood Case with Vacuum Packing
Delivery Time: 30-35 working days
Supply Ability: 15 Sets Per Month
Contact Now

Half Sinusoidal Wave Shock Testing System, 500kg Acceleration Shock Testing System, 500g Acceleration Shock Testing System

Description
Max. Specimen Weight:: 500kg Pulse Duration Range (ms):: 3~20ms
Acceleration Range (m/s2):: 500G Table Size:: 120*120cm
Machine Weight: 8500kg Highlight:: Half Sinusoidal Wave Shock Testing System, 500kg Acceleration Shock Testing System, 500g Acceleration Shock Testing System
Highlight:

Half Sinusoidal Wave Shock Test System

,

500kg Acceleration Shock Testing System

,

500g Acceleration Shock Testing System

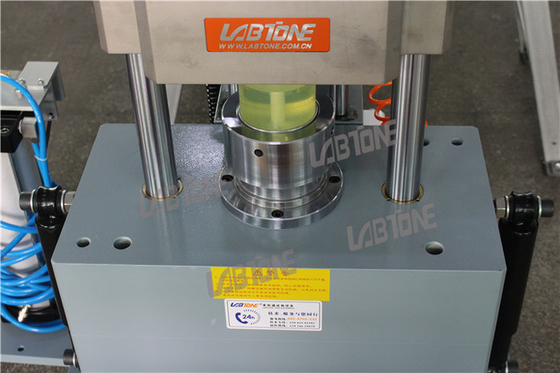

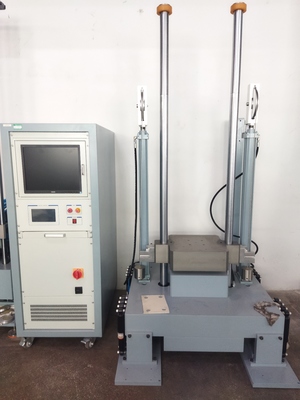

Shock Test Systems include a seismic base, a table, a lifting system, guide columns, a braking system, shock pulse generators, and control console.

The test specimen is mounted on the table, The table is dropped onto the base and is stopped by a braking system after it rebounds from the table



Machine control functions and brake pressurization adjustments are made through the computer system

Shock Test Machine Specifications



Specifications

Model SKT50 SKT100 SKT200 SKT300 SKT500 SKT1000 SKT1500
Table size (cm) 40 x 40 50 x 60 70 x 80 100 x 100 120 x 120 150 x 150 200 x 200
Maximum Specimen Weight(Kg) 50 100 200 300 500 1000 1500
Max acceleration(G) half sine 600 600 600 500 500 300 300
saw-tooth waveform 100 100 100 100 100 100 100
square 100 100 100 60 50 50 50
Pulse Duration (ms) half sine 30~1 30~2 30~2 20~3 20~3 20~3 20~3
saw-tooth waveform 18~6 18~6 18~6 18~6 18~6 18~6 18~6
square 12~6 12~6 12~6 12~6 12~6 12~6 12~6
Machine Dimension(cm) 82x90x195 120x105x245 130x120x260 150x130x260 200x160x300 230x180x310 250x250x310
Controller cabinet Dimension(cm) W55 x D50 x H80
Machine Weight(Kg) 1050 2000 3200 4200 8500 15500 21500
Power supply 3-phase AC380V 50/60Hz 0.5~0.8MPa
Conforming standards

GB/T2423-2008 GJB1217 GJB360.23 GJB150 GJB548 MIL-STD-202F IEC-68-2-27

MIL-STD-883E MIL-STD-810F ISTA UL



Company profile:



Labtone Test Equipment Co., Ltd. is a +22 year China manufacture of reliable, cost-effective equipment. Our superior products mainly include Vibration Test Systems, Shock Test Systems, Bump Test Systems, Drop Tester, Packaging Transportation Simulators, and Combined Environmental Test Chambers.



Labtone started a business in 2002 in a plant located in Shenzhen and moved to our new, expanded 6,000 square meter facility in Dongguan, Guangdong in 2015. Today, our products are found around the world in electronics, automotive, aerospace, telecommunication, optoelectronics instrument, and industrial machinery applications. Our experience and commitment to new product development have resulted in products that are easy to use, accurate and designed for decades of service.



Labtone products carry a one-year(12months) warranty. We provide comprehensive factory services and supports, technical literature, manuals, and guides as well as having qualified staff and experts to solve your problems.



We sincerely invite you to visit our factory.



shock test machine Services



Presales:

  • Technical consultation: test method, laboratory planning, and suggestion.
  • Equipment selection: selection scheme, FAQ.
  • Product testing scheme.



In-Sales:

  • Customer communication and progress report.
  • Guidance for pre-installation preparation, equipment commissioning and test run.
  • Calibration (when Third Party’s verification is required).



After-Sales:

  • Technical training: operation of equipment, daily maintenance, common fault diagnosis, and troubleshooting.
  • Scheduled on-site service: Detection of the problem as soon as possible in order to eliminate equipment and anthropogenic hazards. This is to ensure long term and stable equipment operation as well as delivery of the latest technical information.
  • Technical support: special paid services are provided according to the customer’s needs.



WorkShop



Half Sinusoidal Wave Shock Testing System, 500kg Acceleration Shock Testing System, 500g Acceleration Shock Testing System 0Half Sinusoidal Wave Shock Testing System, 500kg Acceleration Shock Testing System, 500g Acceleration Shock Testing System 1


Half Sinusoidal Wave Shock Testing System, 500kg Acceleration Shock Testing System, 500g Acceleration Shock Testing System 2
