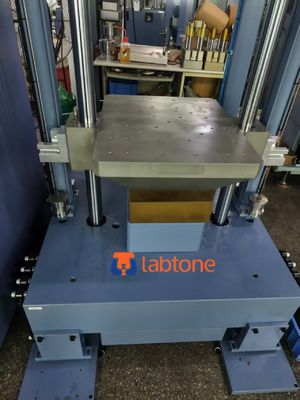

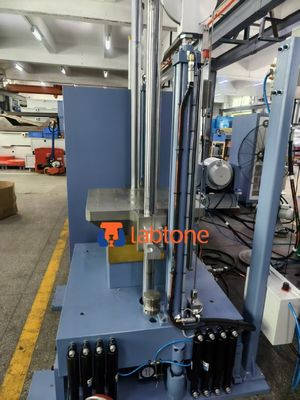

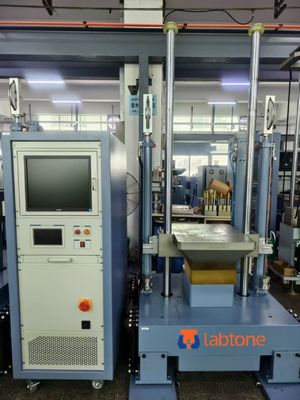

Shock Test System Performs Mechanical Shock Test 175g 3ms Of IEC62133 Battery Test

Shock Test System Performs Mechanical Shock Test 175g 3ms Of IEC62133 Battery Test
Shock Test System Performs Mechanical Shock Test 175g 3ms Of IEC62133 Battery Test Shock Test System Performs Mechanical Shock Test 175g 3ms Of IEC62133 Battery Test Shock Test System Performs Mechanical Shock Test 175g 3ms Of IEC62133 Battery Test

Large Image :  Shock Test System Performs Mechanical Shock Test 175g 3ms Of IEC62133 Battery Test

Product Details:
Place of Origin: CHINA
Brand Name: LABTONE
Certification: CE, ISO
Model Number: SKT50
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Plywood Case with Vacuum Packing
Delivery Time: 30-35 working days
Supply Ability: 15 Sets Per Month
Contact Now

Shock Test System Performs Mechanical Shock Test 175g 3ms Of IEC62133 Battery Test

Description
Max. Specimen Weight:: 50 Kg Machine Weight:: 2300 (Kg)
Acceleration Range (m/s2):: Half Sine: 600G Table Size:: 50*60 （CM）
Highlight:: Shock And Drop Testing, Mechanical Testing Equipment
Highlight:

Shock test system for IEC62133

,

Mechanical shock test system 175g

,

Battery shock test system 3ms

Product description


Standard Shock Test System is the most popular model for testing small to mid-size components and systems. The Programmer allows the operator to perform the two shock pulse waveforms commonly used for fragility testing—short duration half sine and long duration trapezoidal shock pulses. The combination of table size, payload capacity, and pulse quality makes this shock test machine the preferred choice for many applications.





Specifications



Model SKT30 SKT50 SKT100 SKT200 SKT300 SKT600
Table size (cm) 40*40 50*60 70*80 100*100 120*120 150*150
Maximum Specimen Weight(Kg) 30 50 100 200 300 600
Max acceleration(G) half sine 600 600 600 500 500 300
saw-tooth waveform 100 100 100 100 100 100
square 150 150 150 150 100 100
Pulse Duration (ms) half sine 40—0.2 40~1 40~1 30~2 20~3 20~3
saw-tooth waveform 18~6 18~6 18~6 18~6 18~6 18~6
square   30~6 30~6 30~6 30~6 30~6
Machine Dimension(cm) 120*110*245 130*140*260 130*120*260 150*130*260 200*160*300 230*180*310
Controller cabinet Dimension(cm) W55*D50*H80
Machine Weight(Kg) 1900 2300 3200 4200 8500 15500
Utility Requirements 3-phase AC380V 50/60Hz 0.5~0.8MPa
Conforming standards GB/T2423-2008 GJB1217 GJB360.23 GJB150 GJB548 MIL-STD-202F IEC-68-2-27 MIL-STD-883E MIL-STD-810F ISTA UL





Product Features



  • TouchTest Shock 2 Controller for easy and safe operation
  • Cast aluminum table design to produce high quality shock pulses
  • Damage Boundary Programmer for generating 2 msec half sine and long duration trapezoidal shock pulses
  • Electric hoist lifting and positioning System enables precise drop repeatability
  • Full range of applications training programs available
  • Worldwide Customer Service department


Shock testing systems Applications:



  • Fragility test of products.
  • Shock standard test of products.
  • Fragility test for digital cameras, smart phones, tablets, mobiles, displays, small household appliances, cosmetics, electronic parts, large-sized office machine, refrigerator and etc.



Shock Test System Performs Mechanical Shock Test 175g 3ms Of IEC62133 Battery Test 0
