Table Size 300 X 300 Mm Shock Test System For Battery And Electronics With Payload 30kg

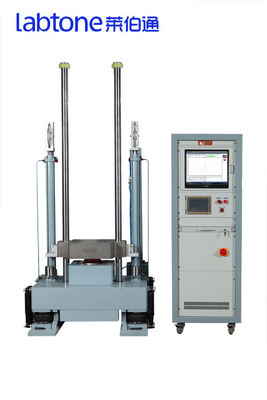

Large Image : Table Size 300 X 300 Mm Shock Test System For Battery And Electronics With Payload 30kg

Product Details:

Place of Origin:	China
Brand Name:	LABTONE
Certification:	CE,ISO
Model Number:	HSKT30

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	wooden case
Delivery Time:	30-60days
Payment Terms:	L/C, T/T
Supply Ability:	15 Sets / Month

Contact Now

Table Size 300 X 300 Mm Shock Test System For Battery And Electronics With Payload 30kg

Description

Table Size::	300 X 300 Mm	Specimen Max Weight::	30 Kg
Shock Pulse::	Half Sine	Acceleration Range::	20-1500 G
Pulse Duration Range::	0.5~30 M/s
Highlight:	Electronics Shock Test System , 30kg Shock Test System , Battery Shock Test System

Description

The precise-type high-acceleration shock tester can provide all half-sine short wave specification specified in JESD22-B110. To meet them, merely change different shock rubber-pad on shock seat. The wave is complete with high repeatability, able to provide user accurate test result.
Conform to different test specs such as JESD22-B110 and IEC spec.

Technical Specifications

Model	HSKT10	HSKT30
Table size (mm)	200x250	300x300
Shock pulse	Half sine
Maximum Specimen Weight(Kg)	10	30
Acceleration Range(G)	20 ~ 2000	20 ~ 1500
Pulse Duration (ms)	0.2~18	0.5~30
Machine Dimension(mm)	660x700x2380	720x680x1890
Utility Requirements	AC220V 50Hz 5A,Air pressure: more than 0.5Mpa
Machine Weight(Kg)	820	650

Specifications

TouchTest Shock 2 Controller for easy and safe operation
Forged aluminum table design for generating high acceleration shock pulses
Acceleration Kit to increase velocity change performance
Electric hoist lifting and positioning system enables precise drop repeatability
Floating Seismic Base to limit the shock energy that transmits to the floor
Full range of applications training programs available
Worldwide Customer Service department

Product Option Highlights

Customized table mounting patterns available
Dual Mass Shock Amplifiers to generate extremely high acceleration levels (30,000g+)
Additional Shock Pulse Programmers for short and long duration half sine, trapezoidal, and terminal peak sawtooth shock pulses
Test Partner Data Acquisition and instrumentation for data collection and analysis

Warranty:

12 months from delivery, lifelong time maintainance.

After-sale service:

Presales:

Technical consultation: test method, laboratory planning and suggestion.
Equipment selection: selection scheme, FAQ.
Product testing scheme.

In-Sales:

Customer communication and progress report.
Guidance for pre-installation preparation, equipment commissioning and test run
Calibration (when Third Party’s verification is required)

After-Sales:

Technical training: operation of equipment, daily maintenance, common fault diagnosis and troubleshooting.
Scheduled on-site service: Detection of problem as soon as possible in order to eliminate equipment and anthropogenic hazards. This is to ensure long term and stable equipment operation as well as delivery of latest technical information.
Technical support: special paid services are provided according to customer’s needs.

Packaging:

Vacuum packing + Plywood case

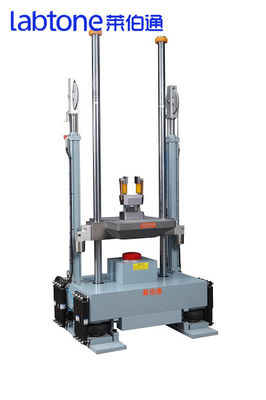

Table Size 300 X 300 Mm Shock Test System For Battery And Electronics With Payload 30kg 1
