High Speed Shock Test System Complies With CE / ISO Standards 30kg Payload

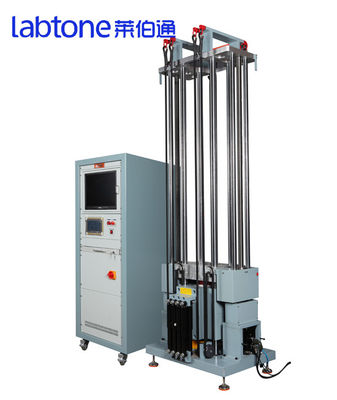

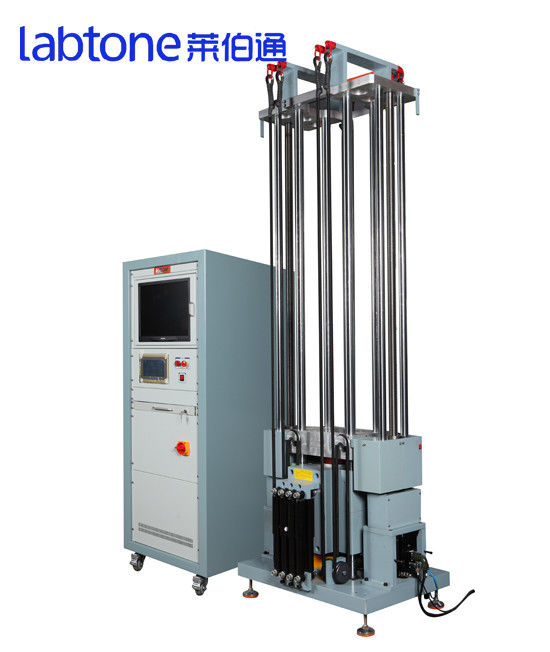

Large Image : High Speed Shock Test System Complies With CE / ISO Standards 30kg Payload

Product Details:

Place of Origin:	CHINA
Brand Name:	LABTONE
Certification:	CE, ISO
Model Number:	HSKT30

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	negotiable
Packaging Details:	International plywood case
Delivery Time:	45 working days
Payment Terms:	T/T
Supply Ability:	15 Sets / Month

Contact Now

High Speed Shock Test System Complies With CE / ISO Standards 30kg Payload

Description

Model:	HSKT30	Table Size:	300*300mm
Max. Payload:	30kg	Shock Pulse:	Half Sine Force
Acceleration Range:	20~1500g	Pulse Duration:	0.5~30ms
Highlight:	1500g Acceleration Shock Test System , Shock Test System 30kg Payload , Half Sine Force Impact Test System

30kg Payload High Speed Shock Test System Complies With CE/ISO Standards

Description

Shock test is used to accurately measure the product fragility and evaluate the protective ability of product packaging. Regardless whether you want to do a boundary assessment on complete product breakage, industrial standard shock pulse or company's internal standards, we can provide the most advanced shock test systems to meet your application requirements.

Application

Main applications: mobile phones, computer components, optical components, connectors, etc, also used to test the shock absorbance ability of materials.

Specifications

Model	HSKT10	HSKT30	USKT30
Table size (mm)	200*250	300*300	300*300
Max. Payload (kg)	10	30	30
Shock Pulse	Half Sine Wave
Acceleration Range (g)	20~2000(bare table)	20~1500(bare table)	20~10000(bare table)
Pulse Duration (ms)	0.2~18	0.5~30	0.2~18
Max. Drop Height (mm)	1500	1200	1200
Machine Dimension (mm)	6607002380	72006801890	135012503300
Power Supply	AC220V 50Hz 5A, Compressed Air: more than 0.5Mpa Mpa
Machine Weight (kg)	820	650	1850

Applicable Standards

GB/T2423-2008, GJB1217, GJB360.23, GJB150, GJB548, MIL-STD-202F, IEC-68-2-27, MIL-STD-883E, MIL-STD-810F, ISTA, UL.

FAQ

1. How to select the suitable shock test system model?

Depends on the specimen weight, dimension and testing requirement.

2. The purpose of shock test?

Evaluate the product's structural integrity and functional stability under non-repetitive strong impact conditions during use.
Evaluate the fragility of the outer packaging of the product to protect the structural and functional integrity of the product during transportation.
When rhe product is installed on a platform where a collision may occur, it is necessary to assess and test the strength (fracture), rigidity (deformation), of the device used to fix the product on the platform, and the impact on the product.
Evaluate the impact of possible throw, drop, and free fall on product performance during loading and unloading, transportation or installation, and debugging.

Service

Pre-Sales Service

Technical consultation: test method, laboratory planning and suggestion.
Equipment selection: selection scheme, FAQ.
Product testing scheme.
Customer communication and progress report.

In-sales

Customer communication and progress report.
Guidance for pre-installation preparation, equipment commissioning and test run.
Calibration (when third party's verification is required).

After-Sales Service

Technical training: operation of equipment, daily maintenance, common fault diagnosis and troubleshooting.
Scheduled on-site service: Detection of problem as soon as possible in order to eliminate equipment and anthropogenic hazards. This is to ensure long term and stable equipment operation as well as delivery of latest technical information.
Technical support: special paid services are provided according to customer’s needs.
