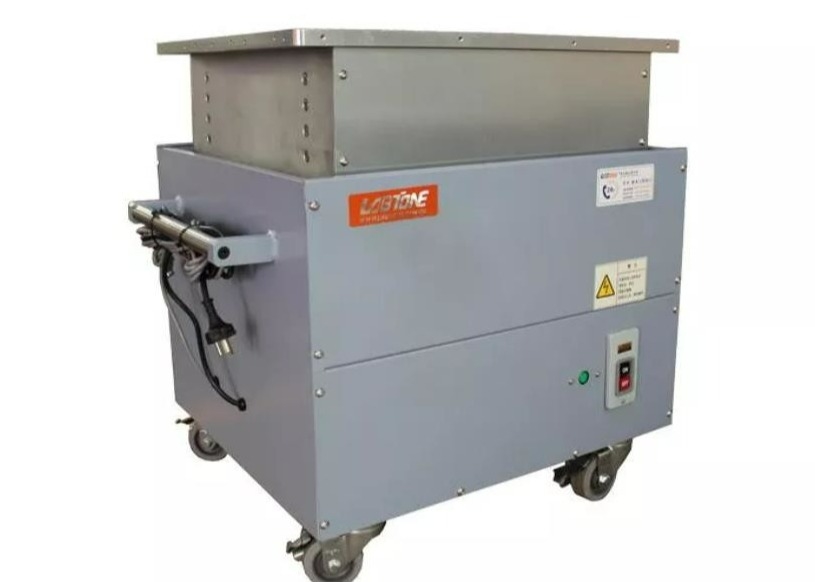

Mechanical Vibration Testing Machine , High Load Mechanical Shaker Table

Mechanical Vibration Testing Machine , High Load Mechanical Shaker Table
Mechanical Vibration Testing Machine , High Load Mechanical Shaker Table

Large Image :  Mechanical Vibration Testing Machine , High Load Mechanical Shaker Table

Product Details:

Place of Origin: China
Brand Name: Labtone
Certification: CE
Model Number: RV8000

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: International standard wooden case
Delivery Time: 30-35 Working Days
Supply Ability: 15 Sets / Month
Detailed Product Description
Product Name: Vertical Vibration Table Amplitude Range: 0-2.6 Mmp-p
Acceleration Range: 0~11g Max. Payload: 300 Kg
Table Dimention: 1000 X 800 Mm Waveform: Sine Wave
Frequency Range: 10-60 Hz Vibration Direction: Vertical
High Light:

Payload 300kg Vibration Testing Machine

,

Stepless Vibration Testing Machine

,

Vertical Mechanical Shaker Table

High Load Mechanical Vibration Testing Machine





Application


Mechanical vibration test machine applies to electronic products, components, module, mechanical and electrical products, instruments and meters and other transportation vibration simulation test. It meets the standards of GB, UL, IEC vibration test and reliability test.




Specifications



Model RV3000 RV8000
Table Size (L*W) 600*500mm 1000*800mm
Frequency Range 5~100Hz 10~60Hz
Amplitude Range 0~3mmp-p 0~2.6mmp-p
Acceleration Range 0~11G 0~11G
Max.Payload 100kg 300kg
Control Interface (compatible interface)IBM PC Serial port Rs232 9P/USB port
Test Method Fixed frequency.sweep frequency(linear/logarithm),multi-stage random
Waveform Sine Wave
Vibration Direction Vertical
Power Supply AC 220V/50Hz
Size 750*550*690 1000*800*655mm
Weight 250kg 500kg





Features

  1. Apply centrifugal excitation to yield low mechanical noise.
  2. Adopts 4-points synchronous reverse movement to yield platform.
  3. Stepless amplitude adjustment to satisfy test requirements of different products.
  4. Windows standard control interface in Chinese and English, capable of printing reports, simple operation.
  5. Comes with damping airbag (caster); no need for special foundation.



Customer Services



Presales

  • Technical consultation: test method, laboratory planning and suggestion.
  • Equipment selection: selection scheme, FAQ.
  • Product testing scheme.

In-Sales

  • Customer communication and progress report.
  • Guidance for pre-installation preparation, equipment commissioning and test run.
  • Calibration (when Third Party’s verification is required).

After-Sales

  • Technical training: operation of equipment, daily maintenance, common fault diagnosis and troubleshooting.
  • Scheduled on-site service: Detection of problem as soon as possible in order to eliminate equipment and anthropogenic hazards. This is to ensure long term and stable equipment operation as well as delivery of latest technical information.
  • Technical support: special paid services are provided according to customer’s needs.





Company Profile



Labtone Test Equipment Co., Ltd. is a +19 year china manufacture in the filed of environmental testing system.



Our superior products mainly include: Vibration Test Systems, Shock Test Systems, BumpTest Machine, Drop Tester, Transportation Simulators and etc.



Labtone started business in 2002 in a plant located in Shenzhen and moved to our new, expanded 6,000 square meter facility in Dongguan, Guangdong in 2015. Today, our products are found around the world in electronics, automotive, aerospace, telecommunication, optoelectronics instrument and industrial machinery applications. Our experience, and commitment to new product development, has resulted in products that are easy to use, accurate and designed for decades of service.



Labtone products carry a one year(12months) warranty, we provide comprehensive factory services and supports, technical literatures, manuals and guides as well as having qualified staffs and experts to help solve your problems.



With reasonable price, high performance, long term reliability and outstanding service, we sincerely hope you can give us the opportunity to serve your organization.
