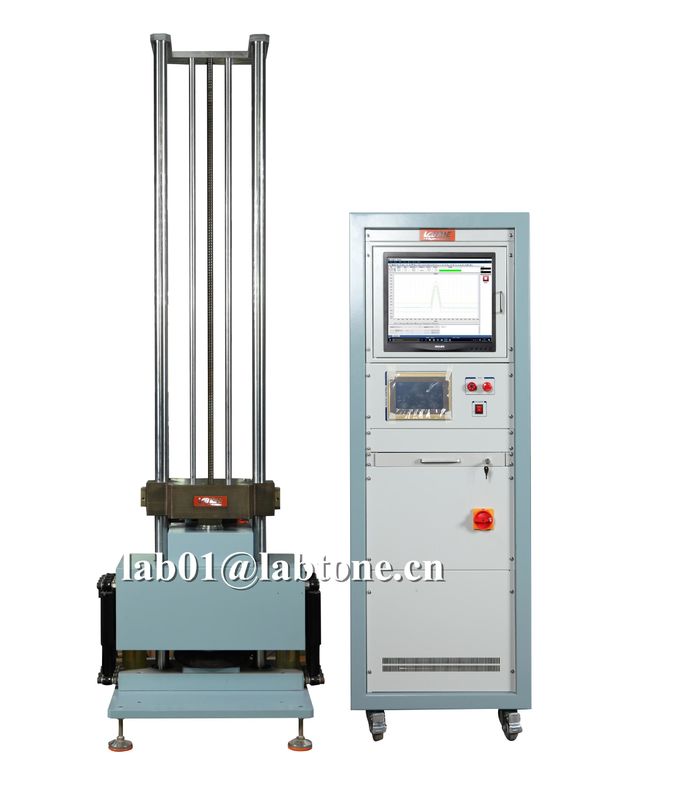

Shock Testing Equipment Perform Half-Sine Waveform 3500g @ 0.25ms

Shock Testing Equipment Perform Half-Sine Waveform 3500g @ 0.25ms
Shock Testing Equipment Perform Half-Sine Waveform 3500g @ 0.25ms
Shock Testing Equipment Perform Half-Sine Waveform 3500g @ 0.25ms Shock Testing Equipment Perform Half-Sine Waveform 3500g @ 0.25ms Shock Testing Equipment Perform Half-Sine Waveform 3500g @ 0.25ms Shock Testing Equipment Perform Half-Sine Waveform 3500g @ 0.25ms

Large Image :  Shock Testing Equipment Perform Half-Sine Waveform 3500g @ 0.25ms

Product Details:
Place of Origin: CHINA
Brand Name: LABTONE
Certification: CE, ISO
Model Number: JESD-HS20
Payment & Shipping Terms:
Minimum Order Quantity: 1SET
Price: to be discussed
Packaging Details: International plywood case
Delivery Time: 45 working days
Payment Terms: T/T
Supply Ability: 15 Sets / Month
Contact Now

Shock Testing Equipment Perform Half-Sine Waveform 3500g @ 0.25ms

Description
Table Size: 200 × 250 Mm Max. Load: 20 Kg
Warranty Period: 1 Year After Installation Power Supply: AC 220V±10％ 50Hz，0.5KVA
Machine Size: 660 × 700 × 1900 Mm Machine Weight: 820 Kg
High Light:

Half Sine Wave Shock Testing Equipment

,

JESD22-B104C Shock Testing Equipment

,

Half Sine Wave Shock Testing Machine



Shock Testing Equipment Perform Half-sine 3500g @ 0.25ms





Description of Shock Test Equipment

The Mechanical Shock Test Method is intended to evaluate component(s) for use in electrical equipment.It is intended to determine the compatibility of the component(s) to withstand moderately severe shocks as a result of suddenly applied forces or abrupt change in motion produced by handling, transportation or field operation. Mechanical Shock of this type may disturb operating characteristics, particularly if the shock pulses are repetitive. This is a destructive test intended component qualification. It is normally applicable to cavity-type packages.Comply with JESD22-B104C, JESD22-B110B test standards.




Technical Specifications of Shock Test Equipment



Main parameters of the shock tester SKT10-HB
Operating platform 200 × 250 mm
Max. load 10 KG
Peak acceleration 15 to 2000G
Pulse duration 0.2~18ms
Equipment dimensions 660 × 700 × 1900 mm
Equipment weight 820 kg
Power supply AC 220V±10％ 50Hz,2kVA
Compressed Air great than 0.5Mpa
Shock measuring and analyzing system
Input channels 2 channels
Sampling frequency 192KHz
Pulse duration 50-1ms
Communication interface USB2.0
Supportive standard ISO, UN38.3, MIL-STD-810, user defined
Operating system Microsoft Windows7/10
System acceleration sensor
Brand LAB
Model 23108
Output mode Charge type
Sensitivity 10pC/g
Frequency range 0.5 to 12KHz
Acceleration range 2000G
Operating environment -40 to +160℃





Other Models:



Model SKT50 SKT100 SKT200 SKT300 SKT500 SKT1000 SKT1500
Table size (cm) 40 x 40 50 x 60 70 x 80 100 x 100 120 x 120 150 x 150 200 x 200
Maximum Specimen Weight(Kg) 50 100 200 300 500 1000 1500
Max acceleration(G) half sine 600 600 600 500 500 300 300
saw-tooth waveform 100 100 100 100 100 100 100
square 100 100 100 60 50 50 50
Pulse Duration (ms) half sine 30~1 30~2 30~2 20~3 20~3 20~3 20~3
saw-tooth waveform 18~6 18~6 18~6 18~6 18~6 18~6 18~6
square 12~6 12~6 12~6 12~6 12~6 12~6 12~6
Machine Dimension(cm) 82x90x195 120x105x245 130x120x260 150x130x260 200x160x300 230x180x310 250x250x310
Controller cabinet Dimension(cm) W55 x D50 x H80
Machine Weight(Kg) 1050 2000 3200 4200 8500 15500 21500
Utility 3-phase AC380V 50/60Hz 0.5~0.8MPa
Requirements
Conforming standards GB/T2423-2008 GJB1217 GJB360.23 GJB150 GJB548 MIL-STD-202F IEC-68-2-27 MIL-STD-883E MIL-STD-810F ISTA UL






Warranty: 12 months from delivery, lifelong time maintainance.

After-sale service: feedback within 4-8 hours after get the call or email.

Service: OEM, ODM



Certificate: China official third-party calibration report / CE Certification





Customer Service



Service timeliness



When a fault report is received from customer〈including telephone, fax and email〉:

LABTONE will respond within 4-8 hours (working time), provide solutions and eliminate faults within 12-24 hours. After the equipment's guarantee period ended, supplier still has obligation to provide users with technical supports and after-sales services.



Presales:

  • Technical consultation: test method, laboratory planning and suggestion.
  • Equipment selection: selection scheme, FAQ.
  • Product testing scheme.

In-Sales:

  • Customer communication and progress report.
  • Guidance for pre-installation preparation, equipment commissioning and test run
  • Calibration (when Third Party’s verification is required)



After-Sales:

  • Technical training: operation of equipment, daily maintenance, common fault diagnosis and troubleshooting.
  • Scheduled on-site service: Detection of problem as soon as possible in order to eliminate equipment and anthropogenic hazards. This is to ensure long term and stable equipment operation as well as delivery of latest technical information.
  • Technical support: special paid services are provided according to customer’s needs.
