50kg Payload Impact Shock Test System For Electric Product Impact Testing With 50*60cm Table

China 50kg Payload Impact Shock Test System For Electric Product Impact Testing With 50*60cm Table supplier
50kg Payload Impact Shock Test System For Electric Product Impact Testing With 50*60cm Table supplier 50kg Payload Impact Shock Test System For Electric Product Impact Testing With 50*60cm Table supplier

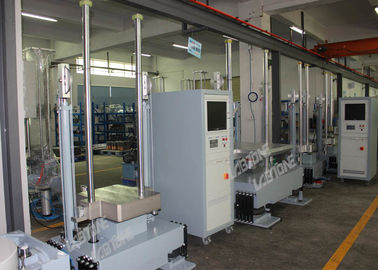

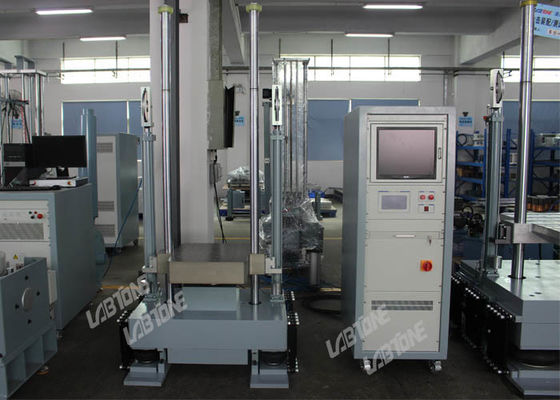

Large Image :  50kg Payload Impact Shock Test System For Electric Product Impact Testing With 50*60cm Table

Product Details:

Place of Origin: CHINA
Brand Name: LABTONE
Certification: CE, ISO
Model Number: SKT50

Payment & Shipping Terms:

Minimum Order Quantity: 1SET
Price: Negotiable
Packaging Details: International wooden case
Delivery Time: 45 working days
Payment Terms: T/T, L/C
Supply Ability: 15 Sets / Month
Contact Now
Detailed Product Description
Product Name: Impact Shock Tester Machine Max. Specimen Weight: 50kg
Max. Acceleration: Half Sine: 600G Machine Dimension: 120x105x245 Cm
Machine Weight: 2000kg Power Supply: 3 Phase AC 380V 50Hz
Table Size: 50x60cm Compressed Air: 0.5-0.8MPa



50kg Payload Impact Shock Tester Machine For Electric Product Impact Testing With 50*60cm Table​





Applicable Standards: GB/T2423-2008;GJB1217;GJB360.23;GJB150;GJB548;MIL-STD-202F;IEC-68-2-27;MIL-STD-883E;MIL-STD-810F;ISTA;UL.





Specification



Model SKT50
Table Size 50*60cm
Max Specimen Weight 50kg
Max Acceleration(Half Sine) 600G
Pulse Duration(Half Sine) 30-1ms
Machine Dimension 120*105*245cm
Controller Cabinet Dimension W55*D50*H80(cm)
Machine weight 2000kg
Power Supply 3PH AC380V 50Hz
Certification ISO;CE



Applicable Industries: Suitable shock test for aviation,aerospace,marine,military,consumer electronics,automobiles,home appliances and display devices.



Features:



  • convenient touch screen operation;



  • complete safety protection systems;



  • utilize pneumohydraulic booster and braking systems to prevent multiple impact;



  • with air spring shock absorber and hydraulic shock damping mechanism,there will be no influence of impact on the surrounding and no foundation requirement.




The Application of Shock Test:



Shock test is used to accurately measure the product fragility and evaluate the protective ability of product packaging.Regardless whether you want to do a boundary assessment on complete product breakage, industrial standard shock pulse or company's internal standards, we can provide the most advanced shock test systems to meet your application requirements.



Suitable shock test for aviation,aerospace,marine,military,consumer electronics,automobiles,home appliances and display devices.



By selecting different waveform generator, can perform:half sinusoidal wave, sawtooth wave, trapezoidal wave.


FAQ:



How do you attach the hardware you’re testing to your shaker?

By means of a fixture, usually aluminum or magnesium for lightness coupled with rigidity. They can be cast, or smaller fixtures machined from solid stock. Most fixtures are welded.



How do you control shakers?

If we’re looking for resonances in the product we’re testing, we command the shaker to shake the product at one frequency at a time but to vary that test frequency, to sweep it over a range of frequencies.But more realistically, we command the shaker to vibrate randomly and to excite all the resonances simultaneously.Control commands go into the keyboard of a specially-programmed computer.



What are those resonances?Are they bad?

Have you ever noticed the steering wheel moving with rather large displacement amplitude, larger than the input to the column? That magnification is called resonance. Possibly it annoys you. There’s a slight chance that in a few years that whipping of the steering column might cause bending fatigue failure.When we shake an automotive or ship or land vehicle instrument, we're looking for, for example, portions of printed wiring boards (PWBs) responding with greater motion than we're inputting. That flexing may damage PWB wiring, it may damage the attached components, and it will damage the soldered connections between components and the PWB.
