Product Details:
|
| Name: | 35000g High Acceleration Shock Test System With 30x 30cm Table | Operating Table: | 300x300mm |
|---|---|---|---|
| Specimen Max Weight(kg): | 30kg | Shock Pulse: | Half Sine |
| Acceleration Range (m/s2): | 20----10000g | Pulse Duration Range (ms): | 0.2~11 |
| Dual Mass Shock Amplifier: | DMSA150 | Table: | 150x105mm |
| Acceleration: | 30000g | Pulse Duration: | 0.06ms~0.3ms |
| Payload: | 2.5kg | ||
| Highlight: | shock test machine,shock test equipment |
||

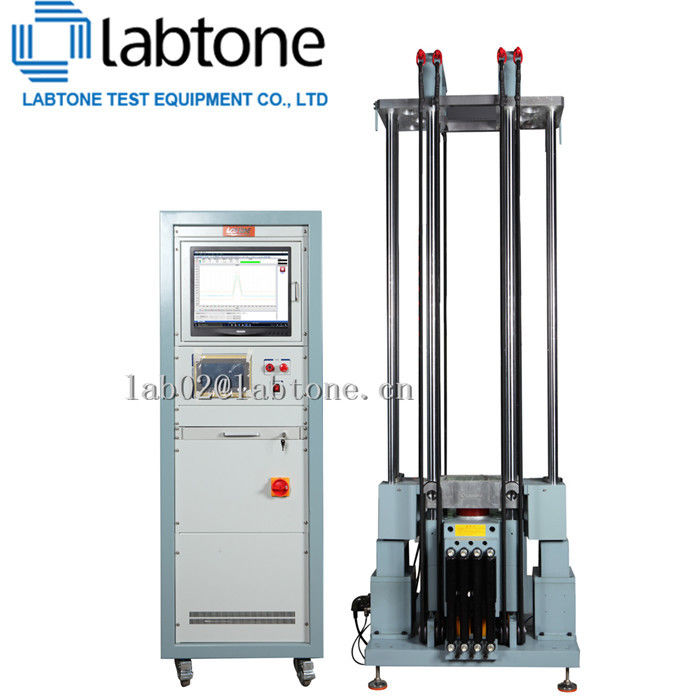

35000g High Acceleration Mechanical Shock Test System With 30x 30cm table
High Acceleration Shock Tester is a high acceleration impact machine, which is designed to carry out specific high acceleration impact test of microdevices.
High Acceleration Shock Tester includes a seismic base, a table, a lifting system, guide columns and a brake system, a shock pulse generator and a shock wave measuring instrument.
The specimen is mounted on the table. The table is accelerated to the base by the elastic system and is stopped by a braking system after it rebounds from the base.
The table is guided on vertical chrome-plated guide columns. The guide rods are also used as the surface against which the table brake system reacts.
System Specifications
This section includes the system specifications, system performance, and shock capabilities.
| Model | G-HSKT30 |
| Table size | 300 mm x 300 mm |
| Base weight | 550kg |
| Table weight | 40kg |
| Machine weight | 1680kg |
| Max. Specimen weight | 30kg |
| Maximum Duration | 11ms |
| Minimum Duration | 0.2ms |
| Lowest Drop Height | 10mm |
| Highest Drop Height | 1500mm |
System Performance
| Model | G-HSKT30 |
| Half sine | |
| Max.velocity | 18.6m/s |
| Max. acceleration | 10000g |
| Max. Specimen weight | 30kg |
| Model | DMSA150 |
| Duration range | 0.06ms~0.3ms |
| Max. Velocity change | 25m/s |
| Max. acceleration | 35000g |
| Max. Specimen weight | 6kg |
Standard Shock Test Machine
| Model | SKT30 | SKT50 | SKT100 | SKT200 | SKT300 | SKT600 | SKT1000 | ||
| Table Size (cm) | 40 x 40 | 50 x 60 | 70 x 80 | 100 x 100 | 120 x 120 | 150 x 150 | 200 x 200 | ||
| Max. Specimen Weight(kg) | 30 | 50 | 100 | 200 | 300 | 600 | 1000 | ||
|
Max.
Acceleration (G)
|
Half Sine | 600 | 600 | 600 | 500 | 500 | 300 | 300 | |
| Saw-tooth | 100 | 100 | 100 | 100 | 100 | 100 | 100 | ||
| Square | 150 | 150 | 150 | 100 | 100 | 100 | |||
|
Pulse duration
(ms)
|
Half Sine | 30—0.5 | 30～1 | 30～1 | 30～2 | 20～3 | 20～3 | 20～3 | |
| Saw-tooth | 18～6 | 18～6 | 18～6 | 18～6 | 18～6 | 16～6 | 18～6 | ||
| Square | 30～6 | 30～6 | 30～6 | 30～6 | 30～6 | 30～6 | |||
| Machine dimension(cm) | 120*110*245 | 130*140*260 | 130×120×260 | 150×130×260 | 200×160×300 | 230×180×310 | 250×220×310 | ||
| Controller cabinet dimension(cm) | W55*D50*H80 | ||||||||
| Machine weight(Kg) | 1900 | 2300 | 3200 | 4200 | 8500 | 15500 | 21500 | ||
| Power supply | 3(phase) AC380V 50/60Hz Compressed air 0.5～0.8MPa | ||||||||
| Standards | GB/T2423-2008 GJB1217 GJB360.23 GJB150 GJB548 MIL-STD-202F IEC-68-2-27 MIL-STD-883E MIL- |
||||||||
