150G 6ms Shock Testing System With Table 40 X 40cm For Half Sine Shock Test

150G 6ms Shock Testing System With Table 40 X 40cm For Half Sine Shock Test
150G 6ms Shock Testing System With Table 40 X 40cm For Half Sine Shock Test 150G 6ms Shock Testing System With Table 40 X 40cm For Half Sine Shock Test 150G 6ms Shock Testing System With Table 40 X 40cm For Half Sine Shock Test

Large Image :  150G 6ms Shock Testing System With Table 40 X 40cm For Half Sine Shock Test

Product Details:
Place of Origin: CHINA
Brand Name: LABTONE
Certification: CE, ISO
Model Number: G-HSKT30
Payment & Shipping Terms:
Minimum Order Quantity: 1SET
Price: Negotiable
Packaging Details: International wooden case
Delivery Time: 45 working days
Payment Terms: T/T
Supply Ability: 15 Sets / Month

150G 6ms Shock Testing System With Table 40 X 40cm For Half Sine Shock Test

Description
Name: Shock Testing System With Table 40 X 40cm For Half Sine Shock Test 150g 6ms Table Size: 400 X 400
Specimen Max Weight(kg): 30 Shock Pulse: Half Sine
Acceleration Range (m/s2): 20----1000g Pulse Duration Range (ms): 0.5~30
High Light:

mechanical shock test

,

shock test machine

150G 6ms Shock Testing System With Table 40 X 40cm For Half Sine Shock Test





Product description



The shock testing system of SKT series are mainly applicable to shock resistance tests in such fields as electronic products, aerospace, shipping, military industry, automotive parts and transportation. SKT Series can be equipped with optional shock pulse programmers to generate a wide range of short duration half sine, sawtooth, or trapezoidal. The equipment conforms to such testing specifications as GB/T2423-2008, GJB150, GJB360, GJB548, GJB1217, UN38.3, MIL-STD-202F, IEC-68-2-27, MIL-STD-810F, MIL-STD-883E, etc.



Mechanical Shock Test Machine Specification



Model HSKT10 HSKT10D G-HSKT15 G-HSKT30 G-HSKT35
Table Size(mm) 200 x 250 300 x 300 250 x 250 250 x 250 250 x 250

Max. Payload

(kg)

10 25 10 10 10
Shock Pulse Half Sine Wave
Acceleration Range(G)

20~2000

(bare table)

20~10000
(bare table)
20~15000
(bare table)
20~30000
(bare table)
20~35000
(bare table)
Pulse Duration(ms) 0.2~18 0.1~11






Model SKT30 SKT50 SKT100 SKT200 SKT300 SKT600 SKT1000
Table Size (cm) 40 x 40 50 x 60 70 x 80 100 x 100 120 x 120 150 x 150 200 x 200
Max. Specimen Weight(kg) 30 50 100 200 300 600 1000



Max.

Acceleration (G)

Half Sine 600 600 600 500 500 300 300
Saw-tooth 100 100 100 100 100 100 100
Square   150 150 150 100 100 100



Pulse duration

(ms)

Half Sine 30—0.5 30~1 30~1 30~2 20~3 20~3 20~3
Saw-tooth 18~6 18~6 18~6 18~6 18~6 16~6 18~6
Square   30~6 30~6 30~6 30~6 30~6 30~6
Controller cabinet dimension(cm) W55*D50*H80
Machine weight(Kg) 1900 2300 3200 4200 8500 15500 21500
Power supply 3(phase) AC380V 50/60Hz Compressed air 0.5~0.8MPa
Standards GB/T2423-2008 GJB1217 GJB360.23 GJB150 GJB548 MIL-STD-202F IEC-68-2-27 MIL-STD-883E MIL-STD-810F ISTA UL





Customer Services



Presales:

  • Technical consultation: test method, laboratory planning and suggestion.
  • Equipment selection: selection scheme, FAQ.
  • Product testing scheme.



In-Sales:

  • Customer communication and progress report.
  • Guidance for pre-installation preparation, equipment commissioning and test run.
  • Calibration (when Third Party’s verification is required).



After-Sales:

  • Technical training: operation of equipment, daily maintenance, common fault diagnosis and troubleshooting.
  • Scheduled on-site service: Detection of problem as soon as possible in order to eliminate equipment and anthropogenic hazards. This is to ensure long term and stable equipment operation as well as delivery of latest technical information.
  • Technical support: special paid services are provided according to customer’s needs.



Details images :

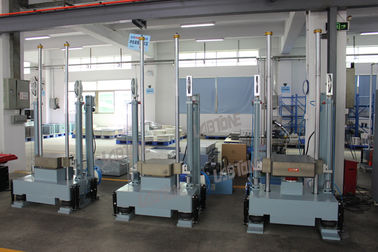

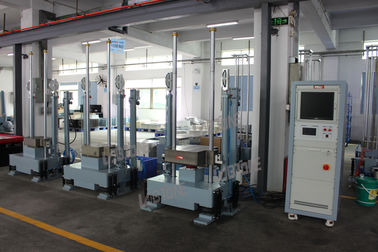

150G 6ms Shock Testing System With Table 40 X 40cm For Half Sine Shock Test 0150G 6ms Shock Testing System With Table 40 X 40cm For Half Sine Shock Test 1



150G 6ms Shock Testing System With Table 40 X 40cm For Half Sine Shock Test 2
