Product Details:
|
| Model: | HSTK10 | Table Size: | 200 X 250 Mm |
|---|---|---|---|
| Specimen Max Weight: | 10 Kg | Shock Pulse: | Half Sine Wave |
| Acceleration Range: | 20-2000 G | Pulse Duration Range: | 0.2~18 Ms |
| High Light: | mechanical shock test,shock test machine |
||
10kg Load Shock Testing Equipment for Small and Lightweight Product Shock Testing
Products are inevitably affected by impact, bump, free fall, tumbling, etc. during production, transportation, loading and unloading as well as during the use of the products. All of these are transient excitation on the object, causing the object to produce mechanical characteristics of high speed, acceleration, strain rate, etc instantly. These kind of characteristics are completely different from that in static load, and may cause problems to the object in terms of structural strength and stability and sometimes the object may fail. Therefore, it is necessary to study the effect of impact and reproduce the shock environment, to assess the structural strength and performance of the object under shock environment.
Technical Specifications
| Model | HSKT10 | HSKT30 |
| Table size (mm) | 200x250 | 300x300 |
| Shock pulse | Half sine | |
| Maximum Specimen Weight(Kg) | 10 | 30 |
| Acceleration Range(G) | 20 ~ 2000 | 20 ~ 1500 |
| Pulse Duration (ms) | 0.2~18 | 0.5~30 |
| Machine Dimension(mm) | 660x700x2380 | 720x680x1890 |
| Utility Requirements |
AC220V 50Hz 5A,Air pressure: more than 0.5Mpa | |
| Machine Weight(Kg) | 820 | 650 |
Application standards
GB/T2423-2008, GJB1217, GJB360.23, GJB150, GJB548, MIL-STD-202F, IEC-68-2-27, MIL-STD-883E, MIL-STD-810F, ISTA, UL
Application Industries:
Aviation,aerospace,vessel,military industry,consumer electronics ,automobile,household appliances, display device etc.
Features
Warranty: 12 months from delivery, lifelong time maintainance.
After-sale service: feedback within 4-8 hours after get the call or email.
Service: OEM, ODM
Certificate: China official Third-party Calibration Report / CE Certification
Welcome to contact us with your test inquiry.
| Pre-sales service |
| Technical Advisory: Testing method, laboratory planning and advice |
| Equipment Selection: Type-selecting scheme,FAQ |
| Product testing scheme |
| Selling service |
| Customer Communication,progress communication |
| Before installation, we will provide guidance of preparation , equipment debugging, equipment commissioning |
| Cooperate with measuring if need the third party verification |
| After-sale service |
| Quality assurance period for one year,lifelong maintenance. |
| Technical guidance |
| Feedback within 2 hours after get the call. |
| Accept OEM,Design service,Buyer lable |

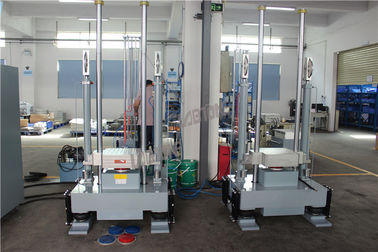

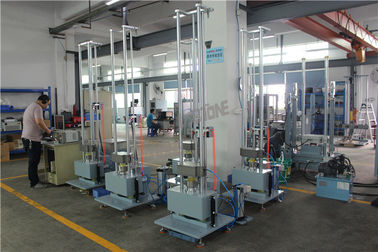

Detailed picture:
