Half-sine Shock Test Machine with PC-based Control System Meet IEC/EN 61960 Standard

China Half-sine Shock Test Machine with PC-based Control System Meet IEC/EN 61960 Standard supplier
Half-sine Shock Test Machine with PC-based Control System Meet IEC/EN 61960 Standard supplier Half-sine Shock Test Machine with PC-based Control System Meet IEC/EN 61960 Standard supplier Half-sine Shock Test Machine with PC-based Control System Meet IEC/EN 61960 Standard supplier

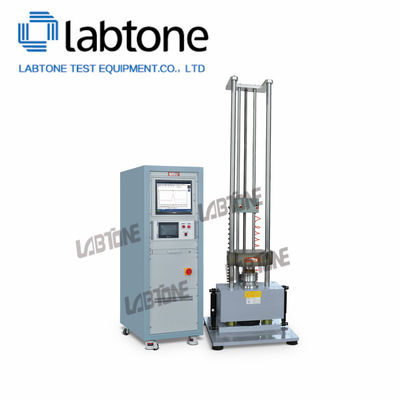

Large Image :  Half-sine Shock Test Machine with PC-based Control System Meet IEC/EN 61960 Standard

Product Details:

Place of Origin: CHINA
Brand Name: LABTONE
Certification: CE, ISO
Model Number: HSKT10

Payment & Shipping Terms:

Minimum Order Quantity: 1SET
Price: Negotiable
Packaging Details: International wooden case
Delivery Time: 45 working days
Payment Terms: T/T
Supply Ability: 15 Sets / Month
Contact Now
Detailed Product Description
Model: HSKT10 Table Size: 200 X 250 Mm
Specimen Max Weight: 10 Kg Shock Pulse: Half Sine Wave
Acceleration Range: 20-2000 G Pulse Duration Range: 0.2~18 Ms



Half-sine Shock Test Machine with PC-based Control System Meet IEC/EN 61960 Standard



Shock Test System:

Shock tests accurately measure the fragility of products and evaluate how they respond to specific shock inputs. Shock test data is key information when determining if your product is capable of withstanding its intended distribution and use environment.


High Speed Shock Test Systems were developed to achieve the most demanding defense, aerospace, and electronics shock testing specifications. These highly specialized shock systems can generate incredible impact velocities.




Specifications:


Main parameters of the shock tester HSKT10
Operating platform200 × 250 mm
Max. load10KG
Peak acceleration20 to 2000G
Pulse duration0.2~18ms
Equipment dimensions660 × 700 × 1900 mm
Equipment weight820 kg
Power supplyAC 220V±10%50Hz,2kVA
Compressed Airgreat than 0.5Mpa
Shock measuring and analyzing system
Input channels2 channels
Sampling frequency192KHz
Pulse duration50-1ms
Communication interfaceUSB2.0
Supportive standardISO, UN38.3,MIL-STD-810, user defined
Operating systemMicrosoft Windows7/10
System acceleration sensor
BrandLAB
Model23108
Output modeCharge type
Sensitivity10pC/g
Frequency range0.5 to 12KHz
Acceleration range 2000G
Operating environment-40 to +160℃



Shock system design standards:

GB/T2423-2008, GJB1217, GJB360.23, GJB150, GJB548, MIL-STD-202F, IEC-68-2-27, MIL-STD-883E, MIL-STD-810F, ISTA, UL


Applications:

aviation,aerospace,vessel,military industry,consumer electronics ,automobile,household appliances, display device etc.


Shock tester Features:

  • User-friendly touching screen operation.Half sine, square waveform shock pulse programmers.High rigidity shock tables.
  • Half sine, square waveform shock pulse programmers.
  • High rigidity shock tables.
  • A full range of safety features.
  • Apply air and hydraulic pressurization, strong friction brake avoiding secondary shock.
  • Apply air spring suspension, hydraulic damping shockproof system, no shock impact on the surrounding, without foundation.

Half-sine Shock Test Machine with PC-based Control System Meet IEC/EN 61960 Standard




Warranty: 12 months from delivery, lifelong time maintainance.
After-sale service: feedback within 4-8 hours after get the call or email.
Service: OEM, ODM

Certificate: China official Third-party Calibration Report / CE Certification

Welcome to contact us with your test inquiry.



Our Services

Pre-sales service
Technical Advisory: Testing method, laboratory planning and advice
Equipment Selection: Type-selecting scheme,FAQ
Product testing scheme
Selling service
Customer Communication,progress communication
Before installation, we will provide guidance of preparation , equipment debugging, equipment commissioning
Cooperate with measuring if need the third party verification
After-sale service
Quality assurance period for one year,lifelong maintenance.
Technical guidance
Feedback within 2 hours after get the call.
Accept OEM,Design service,Buyer lable




Detailed picture​:



Half-sine Shock Test Machine with PC-based Control System Meet IEC/EN 61960 Standard

Half-sine Shock Test Machine with PC-based Control System Meet IEC/EN 61960 Standard
