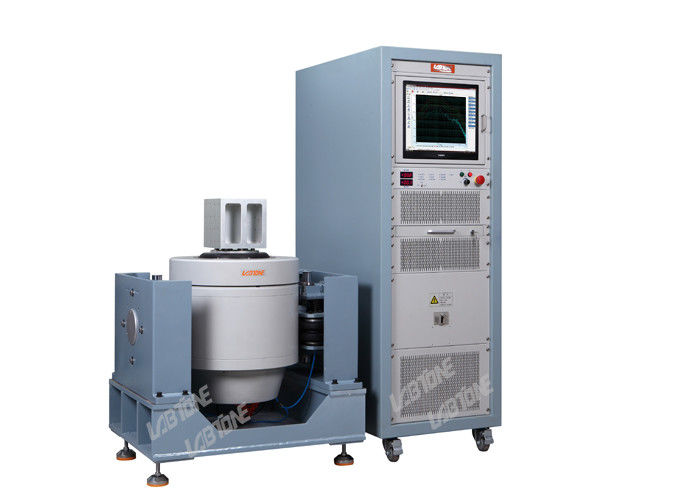

Sin and Random Vibration Test Machine With Vibration Controller And Power Amplifier

Sin and Random Vibration Test Machine With Vibration Controller And Power Amplifier
Sin and Random Vibration Test Machine With Vibration Controller And Power Amplifier Sin and Random Vibration Test Machine With Vibration Controller And Power Amplifier Sin and Random Vibration Test Machine With Vibration Controller And Power Amplifier

Large Image :  Sin and Random Vibration Test Machine With Vibration Controller And Power Amplifier

Product Details:
Place of Origin: Dongguang, China
Brand Name: LABTONE
Certification: CE / ISO
Model Number: EV203
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Plywood Case with Vacuum Packing
Delivery Time: 45 Working Days
Payment Terms: T/T, L/C
Supply Ability: 15 Sets / Month

Sin and Random Vibration Test Machine With Vibration Controller And Power Amplifier

Description
Rated Sine Force: 3 KN Maximum Velocity: 120 Cm/s
Power Amplifier: Amp3k Payload: 120 Kg
Armature Mass: 3 Kg Power Supply: AC 380V 50Hz
High Light:

electrodynamic vibration shaker system

,

dynamic testing equipment



Sin and Random Vibration Test Machine With Vibration Controller And Power Amplifier





Applicable Standards: MIL-STD, DIN, ISO, ASTM, IEC, ISTA, GB, GJB, JIS, BS etc.




Applicable Industries: Automotive, Electronics, Aerospace, Vessel, Telecommunication, Pptoelectronics, Instrument etc.




Features:

  • Strength of the suspension system and linear motion guiding, strong carrying capacity, good guiding functions, high stability.
  • Perfect performance on amplitude variation.
  • High efficient on D Class power conversion, 3 - Sigma peak current, provide the optimization of power consumption and minimum harmonic distortion.
  • Rapid self-test diagnostics and chain safeguard, high high safety and reliability
  • Air gasbag isolation damping device realize the the vibration table with no need for special foundation. Perfect reappearance vibration waveform and the reduction of vibration transmission
  • Different application on the vertical and horizontal tables.
  • Simple operation for the controller.



Working Principle:



Sin and Random Vibration Test Machine With Vibration Controller And Power Amplifier 0



Sin and Random Vibration Test Machine With Vibration Controller And Power Amplifier 1



Specifications: EV103-EV220



Model EV103 EV203 EV106 EV206 EV210 EV220
Vibration Generator VG300/25 VG300/40 VG600/25 VG300/50 VG1000/50 VG2000/50
Frequency(Hz) 2-4000 2-2500 2-3000 2-3000 2-3000 2-2500
Max Exiting Force(kg.f) 300 300 600 600 1000 2000
Max. Displacement (mmp-p) 25 38 25 50 50 50
Max. Acceleration(g) 100 100 100 100 100 100
Max. Velocity(cm/s) 200 120 180 200 200 200
Payload(kg) 110 120 200 200 300 400
Armature Mass(kg) 3 3 6 6 10 20
Armature Diameter(mm) φ150 φ150 φ200 φ200 φ240 φ320
Cooling Method Forced Air Cooling
Vibration Generator Weight(kg) 460 460 720 920 1100 1600
Vibration Generator Dimension L*W*H(MM) 750*560*670 750*555*670 800*600*710 800*600*710 845*685*840 1200*870*1100
Power Amplifier Amp3k Amp3k Amp6k Amp6k Amp12k Amp22k
Cooling Method Forced Air Cooling
Power Amplifier Weight(kg) 250 250 320 320 350 500
Power Amplifier Dimension L*W*H(MM) 800*550*1250 800*550*1250 800*550*1250 800*550*1250 800*550*1520 800*550*1520
Utility
Requirements
3-phase AC380V ±10% 50Hz
Aggregate Capacity(KW) 8 9 18 20 25 35




Warranty: 12 months from delivery, lifelong time maintainance.

After-sale service: feedback within 4-8 hours after get the call or email.

Service: OEM, ODM



Certificate:



The Third-Party calibration report

CE Certiificate

ISO Certificate





Company Profile:



Labtone Test Equipment Co., Ltd. is a +15 year China manufacture of reliable, cost-effective equipments. Our superior products mainly include: Vibration Test Systems, Shock Test Systems, Bump Test Systems, Drop Tester, Packaging Transportation Simulators, and Combined Environmental Test Chambers.

Labtone started business in 2002 in a plant located in Shenzhen and moved to our new, expanded 6,000 square meter facility in Dongguan, Guangdong in 2015. Today, our products are found around the world in electronics, automotive, aerospace, telecommunication, optoelectronics instrument and industrial machinery applications. Our experience and commitment to new product development has resulted in products that are easy to use, accurate and designed for decades of service.

Labtone products carry a one-year(12months) warranty. We provide comprehensive factory services and supports, technical literatures, manuals and guides as well as having qualified staffs and experts to solve your problems.





Product Picture



Sin and Random Vibration Test Machine With Vibration Controller And Power Amplifier 2Sin and Random Vibration Test Machine With Vibration Controller And Power Amplifier 3



Sin and Random Vibration Test Machine With Vibration Controller And Power Amplifier 4
