Product Details:
|
Vibrator Model: | VG600/50 | Vibrator Weight: | 920 Kg |
---|---|---|---|
Vibrator Dimension: | 800 X 600 X 710 Mm | Cooling Method: | Air Cooling |
Power Amplifier Weight: | 320 Kg | Power Amplifer Dimension: | 800 X 550 1250 Mm |
Highlight: | electrodynamic vibration shaker system,vibration testing equipment |

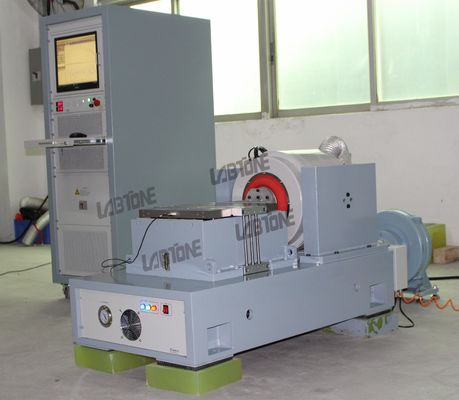

Electrodynamic Vibration Shaker Meet ISTA Standards Perform Random Shock Tests
Introduction:
Electrodynamic shaker simulates the vibration environment under the laboratory condition, and test the impact strength as well as reliability of varous vibration test applications.
Applicable Standards:
MIL-STD, DIN, ISO, ASTM, IEC, ISTA, GB, GJB, JIS, BS etc.
Applicable Industries:
Automotive, Electronics, Aviation, Vessel, Telecommunication, Military Industry, Measuring Instrument etc.
Features:
Working Principle:
Specifications: EV103-EV220
Model | EV203 | EV206 | EV210 | EV220 |
Vibration Generator | VG300/40 | VG300/50 | VG1000/50 | VG2000/50 |
Frequency(Hz) | 2-2500 | 2-3000 | 2-3000 | 2-2500 |
Max Exiting Force(kg.f) | 300 | 600 | 1000 | 2000 |
Max. Displacement (mm p-p) | 38 | 50 | 50 | 50 |
Max. Acceleration(g) | 100 | 100 | 100 | 100 |
Max. Velocity(cm/s) | 120 | 200 | 200 | 200 |
Payload(kg) | 120 | 200 | 300 | 400 |
Armature Mass(kg) | 3 | 6 | 10 | 20 |
Armature Diameter(mm) | φ150 | φ200 | φ240 | φ320 |
Cooling Method | Forced Air Cooling | |||
Vibration Generator Weight(kg) | 460 | 920 | 1100 | 1600 |
Vibration Generator Dimension L*W*H(MM) | 750*555*670 | 800*600*710 | 845*685*840 | 1200*870*1100 |
Power Amplifier | Amp3k | Amp6k | Amp12k | Amp22k |
Cooling Method | Forced Air Cooling | |||
Power Amplifier Weight(kg) | 250 | 320 | 350 | 500 |
Power Amplifier Dimension L*W*H(MM) | 800*550*1250 | 800*550*1250 | 800*550*1520 | 800*550*1520 |
Utility Requirements |
3-phase AC380V ±10% 50Hz | |||
Aggregate Capacity(KW) | 9 | 20 | 25 | 35 |
Our Services:
Pre-sales |
Technical Advisory: Testing method, laboratory planning and advice |
Equipment Selection: Type-selecting scheme,FAQ |
Product testing scheme |
In-sales |
Customer Communication,progress communication |
Before installation, we will provide guidance of preparation , equipment debugging, equipment commissioning |
Cooperate with measuring if need the third party verification |
After-sales |
Quality assurance period for one year,lifelong maintenance. |
Technical guidance |
Feedback within 2 hours after get the call. |
Accept OEM,Design service,Buyer label |
