Product Details:
|
| Rated Force: | 5000 Kg | Max. Velocity: | 200 Cm/s |
|---|---|---|---|
| Maximum Displacement: | 51 Mm | Cooling Method: | Air Cooling |
| Payload: | 100 Kg | Power Amplifier: | 3-phase AC 380V 50Hz |
| High Light: | shaker testing device,vibration table testing equipment |
||
The purpose of vibration testing is to make a series of controllable vibration simulations in the lab, no matter generated by natural or man-made vibration environments; such as waves, tidal flaps, wind, earthquake or rain, and so on. It is to test if the product is capable of sustaining the vibration environment exerted from transporting or usage along its effective life cycle and certify the standard of design & functional requirement of the product. The value of vibration testing is to confirm the reliability of products and effectively screen out the bad products in the factory; avoiding damages occurred at arrival; and to assess the failure analysis on the non-performing products; expecting to reach a high standard, high-reliability products. The vibration test stresses the continuity and fatigue; and contributes to the understanding of the product’s status under vibration circumstance in a normal environment, and avoids the product’s unpredictable damage caused under certain vibrating frequency for a long time.
A Vibration Test System consists of four major components (shown in Figure A-1):
1. The Shaker
2. The Power Amplifier
3. The Cooling Blower
4. The Measurement and Control System
a) Accelerometers and Cables
b) Charge Amplifier, depending on which type of Accelerometers.
c) Control System, sometimes including DATA Analysis Software

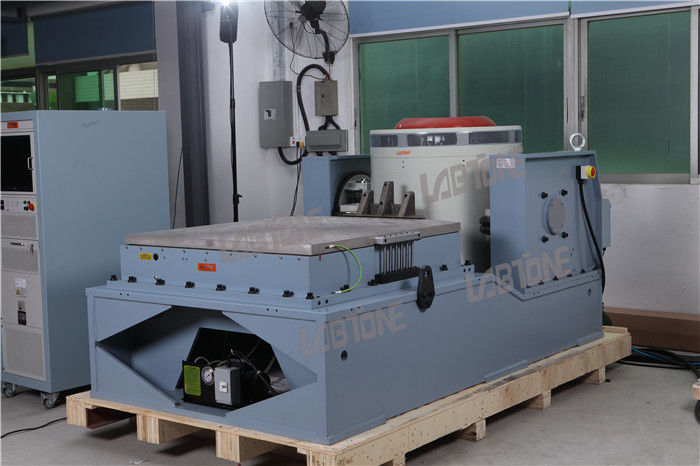

| A50S44 Electrodynamic Shaker | ||
| Generated Force | Sine (Pk) | 5000 kgf |
| Random (Rms) | 5000 kgf @ISO5344 | |
| Shock (Pk) | 10000 kgf @ 6ms | |
| Useable Frequency(Only Armature) | DC-2,500Hz | |
|
Maximum displacement (Peak-Peak): Continuous duty Shock |
51 mm 64 mm |
|
| Maximum Velocity | 2.0 m/s | |
| Maximum Acceleration | 100g | |
|
Fundamental Resonance Frequency (Nominal, Bare Table) |
1950Hz | |
| Nominal armature moment | 500Nm | |
|
Body Suspension Natural Frequency (Thrust Axis) |
Lower than 3 Hz | |
| Power Supply Requirement | 380V/50Hz 3 Phase | |
| Armature Rated Current | 520 Arms | |
| Armature Rated Voltage | 110 Vrms | |
| Armature Coil Resistance | 0.025 Ω | |
| Effective Nominal Armature Mass | 50kg | |
| Armature Diameter | 440 mm | |
| Vertical Load Support | 500 kg | |
| Load Attachment Points (Standard) | 16 stainless steel M10 Inserts | |
| Field Rated Current (DC) cold | 77 ADC | |
| Field Rated Voltage (DC) cold | 260.2 V | |
| Field Coil Resistance R20 | 1.65 Ω X 2 = 3.3 Ω | |
| Drive Coil Isolation Resistance to Armature | >10MΩ | |
| Drive Coil Isolation Resistance to Shaker Body | >10MΩ | |
| Stray Flux Density with degauss coil | 10 gauss @ 110 mm above table | |
| The height between shaker body to the armature table surface after remove the top cover | 130mm | |
| The maximum noise of the system | 112dB (A) @ 1 meter | |
| LA50K Power Amplifier (Refer to amplifier manual for details) | ||
| Rated Output Capacity | 50 kVA | |
|
Amplifier Frequency response (Sine mode, resistive load) |
Full power from 5 Hz to 3000Hz rolling off to 3 dB at 4000 Hz with 6 dB/Octave slope | |
| Distortion (at rated output) | From 5 Hz to 3000Hz less than 1% | |
| Signal-Noise-Ratio | Greater than 65 dB | |
| DC stability |
Less than 0.05% of full output voltage with 10% change in line voltage. |
|
Features:
The Vibration Testing Machine is associated with the shaker, high power amplifier, and multi-functional controller. If conforms to all military, national and commercial vibration testing specifications and is an essential tool for modernized product design, production, QC & QA work. Using it would make your product be the best. The vibration response bandwidth is big and control precision is high; able to simulate all waveforms and specifications; easy to control; good extendibility and easy to maintain.
Vibration Testing Machine service
1,12 months warranty, lifelong maintenance. If any quality problems on our side occurred in this period. we promise we will give you a reply within 48 hours and the solution provide within 3 working days. We can offer operation video and English operation manual. We can provide video-conference. If customers require on-site service,the transport and travel expense shall be borne by the customer.
2, Help choose the right model with a series of service
3, Customization service-OEM, Design service, Buyer label
4, Cooperate with measuring if need the third party verification
