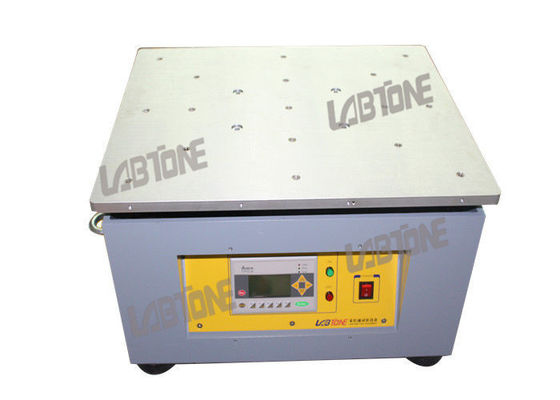

Fixed Displacement Mechanical Vibration Table For Production Line

Fixed Displacement Mechanical Vibration Table For Production Line
Fixed Displacement Mechanical Vibration Table For Production Line Fixed Displacement Mechanical Vibration Table For Production Line

Large Image :  Fixed Displacement Mechanical Vibration Table For Production Line

Product Details:
Place of Origin: Dongguang, China
Brand Name: LABTONE
Certification: CE/ISO
Model Number: VB60S
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: International wooden case
Delivery Time: 30days
Supply Ability: 15 Sets / Month

Fixed Displacement Mechanical Vibration Table For Production Line

Description
Frequency: 15-60 Hz Max. Displacement: 2.5 Mm (p-p)
Max. Acceleration: 14G Max. Payload: 50 Kg
Product Name: Vibration Testing Machine Country: China
High Light:

vibration shaker table systems

,

vibration shaker table



Fixed Displacement Mechanical Vibration Table For Production Line





Product Introduction



There are two main test functions for LABTONE Mechanical Vibration Test System : fixed frequency test and frequency sweep test. These two testing functions provide users to test their products with: vibration function test, durability test, packing and shipping test, resonance search, resonance reside, stress screening, fatigue test...And so on.





Economy mechanical vibration test machine Application


This series of vibration testers is applicable for vibration and engineering testing vertically in laboratory as well as production line. The structure of the vibration tester is reasonable with good reliability, simple operation and is cost effective.


Mechanical vibration test machine specifications


Model VB60S
Frequency(Hz) 15—60
Displacement (mmp-p) 2.5
Acceleration range 14g
Max. payload(kg) 50kg
Table size(L×W) 600×500mm
Test pattern fixed frequency ,sweep frequency
Power supply AC 220V
Machine dimension 560*610*315mm
machine weight 120kg





Maintenance



-  The damping spring of the machine should be regularly (about six months) inspected, make sure

no other debris in the spring.



-  Users should regularly (about a year) check the machine screws, whether there is loosening

   phenomenon.



-  Users should regularly check (about a year) whether the power connector is loose.







Detailed Picture:





Fixed Displacement Mechanical Vibration Table For Production Line 0



Fixed Displacement Mechanical Vibration Table For Production Line 1
