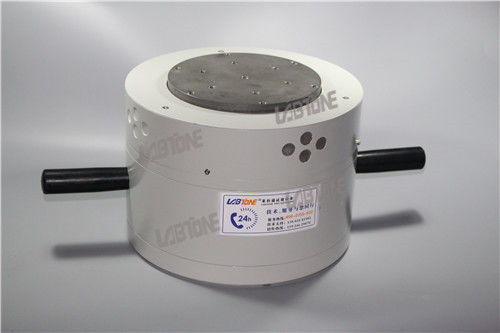

Compact Vibration Shaker System For Laboratory Vibration Testing

Compact Vibration Shaker System For Laboratory Vibration Testing
Compact Vibration Shaker System For Laboratory Vibration Testing Compact Vibration Shaker System For Laboratory Vibration Testing

Large Image :  Compact Vibration Shaker System For Laboratory Vibration Testing

Product Details:
Place of Origin: Dongguang, China
Brand Name: LABTONE
Certification: CE / ISO
Model Number: ET50
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Negotiable
Packaging Details: International standard wooden case
Delivery Time: 30 Working Days
Payment Terms: T/T, L/C
Supply Ability: 15 Sets / Month

Compact Vibration Shaker System For Laboratory Vibration Testing

Description
Product Name: Compact Vibration Shaker Max. Sine Exciting Force: 500 N (50kg.f)
Frequency Range: 2-3800Hz Max. Acceleration: 37 G
Max. Amplitude: 10 Mm Max. Velocity: 1.2 M/s
Shaker Dimensions: DIA 270 * H195mm
High Light:

vibration testing equipment

,

dynamic testing equipment

Compact Vibration Shaker System For Laboratory Vibration Testing





ET series standard vibration table with light weight, small volume, convenient to move, is widely used in the acceleration sensor calibration, the tiny parts of resistance to vibration test, fatigue test and mechanical impedance test. At the same time, the ET series can also be used for teaching and scientific research and laboratory.





Specifications



Model ET50
Rated Sine Exiting Force 50kg.f(500N)
Rated Random Exiting Force 38kg.f(380N)
Frequency Range 2-3800Hz
Max. Acceleration 37G
Max. Amplitude 10mm
Max. Velocity 1.2m/s
Armature Mass 1.2kg
Machine Dimension DIA 270 * H195mm
Cooling Type Forced cooling
Electrical Supply Power AC220V ±10% 50Hz





Features



  • Apply to high precision vibration meter calibration, mechanical impedance test, vibration analysis of the vibration source
  • Apply to various of sensor, electronic, electric machines and other small lightweight vibration test .
  • Apply to the basic test of vibration engineering education equipment, etc.





FAQ

How do you attach the hardware you’re testing to your shaker?
By means of a fixture, usually aluminum or magnesium for lightness coupled with rigidity. They can be cast, or smaller fixtures machined from solid stock. Most fixtures are welded.

How do you control shakers?
If we’re looking for resonances in the product we’re testing, we command the shaker to shake the product at one frequency at a time but to vary that test frequency, to sweep it over a range of frequencies.But more realistically, we command the shaker to vibrate randomly and to excite all the resonances simultaneously.Control commands go into the keyboard of a specially-programmed computer.

What are those resonances?Are they bad?
Have you ever noticed the steering wheel moving with rather large displacement amplitude, larger than the input to the column? That magnification is called resonance. Possibly it annoys you. There’s a slight chance that in a few years that whipping of the steering column might cause bending fatigue failure.When we shake an automotive or ship or land vehicle instrument, we're looking for, for example, portions of printed wiring boards (PWBs) responding with greater motion than we're inputting. That flexing may damage PWB wiring, it may damage the attached components, and it will damage the soldered connections between components and the PWB.





Service



Pre-Sales Service



1)Technical consultation: test method, laboratory planning and suggestion.

2)Equipment selection: selection scheme, FAQ.

3)Product testing scheme.

4)Customer communication and progress report.





After-Sales Service



1)Technical training: operation of equipment, daily maintenance, common fault diagnosis and troubleshooting.

2)Scheduled on-site service: Detection of problem as soon as possible in order to eliminate equipment and anthropogenic hazards. This is to ensure long term and stable equipment operation as well as delivery of latest technical information.

3)Technical support: special paid services are provided according to customer’s needs.





Product Detail:



Compact Vibration Shaker System For Laboratory Vibration Testing 0
