Incline Impact Test Machine, Incline Shock Test Meet ASTMD880-92 Standard

Incline Impact Test Machine, Incline Shock Test Meet ASTMD880-92 Standard

Product Application

Labtone Inclined Impact Test Systems meet industry specifications with the added benefit of some new and innovative design features. The unique articulating carriage system we utilize allows the carriage to pivot and raise so that it becomes parallel with the ground. This design feature makes it much safer and easier to load test items with a forklift. After the specimen has been loaded, the carriage pivots back into its testing position and you are ready to begin impact testing.

Technical Parameter

• Max. Payload: 300kg
• Max. Dimension of Specimen: 1200x1200x1600 mm
• Max. Shock Distance: 1.8M (discussible)
• Impact Velocity Range: 1 - 2.1 m/s
• Tolerance of Impact Speed: ≤ ±5%
• Speed Display: three-digit numbers
• The Impact Angle: 10°±1°(Negotiable, nonstandard)
• Base Dimension: W1800×H2000mm (Equipped with solid wood board)

Working Principle

By using the principle of potential energy into kinetic energy, the box is free to slide to the bottom of the predetermined position to obtain a certain impact speed and a speed direction perpendicular to the impact plate collision to achieve the intended test purposes.

III. Equipment Components

Our service

• 12 months warranty, lifelong maintenance. If any quality problems on our side occured in this period. we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation muanual. We can provide video-conference. If customers require on-site service,the transport and travel expense shall be borne by customer.
• Help choose right model with series of service
• third party verification

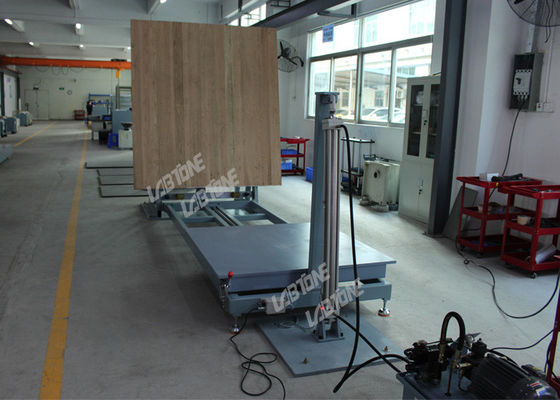

 Product Picture
