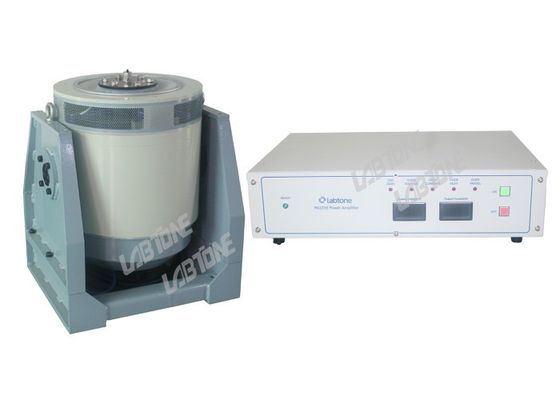

Portable Vibration Test Machine, Small Vibration Shaker With 55kf.G Sine Force

Portable Vibration Test Machine, Small Vibration Shaker With 55kf.G Sine Force
Portable Vibration Test Machine, Small Vibration Shaker With 55kf.G Sine Force

Large Image :  Portable Vibration Test Machine, Small Vibration Shaker With 55kf.G Sine Force

Product Details:

Place of Origin: Dongguang, China
Brand Name: LABTONE
Certification: CE / ISO
Model Number: ET55

Payment & Shipping Terms:

Minimum Order Quantity: 1 SET
Price: Negotiable
Packaging Details: Plywood Case with Vacuum Packing
Delivery Time: 30 Working Days
Payment Terms: T/T, L/C
Supply Ability: 15 Sets / Month
Detailed Product Description
Rated Sine Force: 550 N (55kg.f) Frequency Range: 5-5000Hz
Max. Acceleration: 37 G Max. Amplitude: 19 Mm
Max. Velocity: 1.2 M/s Machine Dimension: 445mm L X 333mm D X 203mm H
High Light:

electrodynamic vibration shaker system

,

dynamic testing equipment



Portable Vibration Test Machine, Small Vibration Shaker With 55kf.G Sine Force





Introduction:



Minitype Vibration Test System

With light weight, small volume, convenient to move, ET series standard vibration table is widely used in the acceleration sensor calibration; vibration test, fatigue test and mechanical impedance test of micro parts; at the same time, the ET series can also be used for teaching and scientific research and laboratory.

Vibration test is a process of exciting or shocking some part or device to observe its reaction in real environment. Vibration test is widely applied in many fields, ranging from circuit board, airplane, ship, rocket, missile, automobile, household appliance and other industrial products.

Labtone can offer you the whole vibration and testing proposal, and provide you with the quality certificates of products according to national and international standards, including GB, GJB, UL, JIS, DIN, ISO, BS, MIL, IEC and ASTM standards.





 Features:

  • Apply to high precision vibration meter calibration, mechanical impedance test, vibration analysis of the vibration source
  • Apply to various of sensor, electronic, electric machines and other small lightweight vibration test .
  • Apply to the basic test of vibration engineering education equipment, etc.



Specifications:

ET55 Electrodynamic shaker
Max. sine exciting force 55Kg.f peak (550N)
Frequency range 5~5000Hz
Max. displacement 19 mm p-p
Max. velocity 1.22 m/s
Max. acceleration 30 G (300 m/s2)
Vertical load support 20 kg
Armature diameter Ф120 mm
Armature weight 1.8 kg
Over all Dimension 445mm L x 333mm D x 203mm H
Shaker weight 97 Kg
Cooling type Air Cooling by inner axial fan
PA500E Power Amplifier
Output power 900 VA
Amplifier cabinet dimension 430mm×200mm×500mm
Servo protection system
Functions: FUSE, OSC ZERO, OVER DISP, OVER VILTAGE, OVER CURRENT, OVER HEAT, EXT-TRIP, EXT-STOP





Equipment Configuration



Item Configuration Qty.
1. Vibration shaker
  ET55 Shaker 1 set
2. Digital switch power amplifier
  PA500E Power Amplifier 1 set
3. Digital vibration controller
  Master unit of digital vibration controller 1 set
  System acceleration sensor 1 pcs
  Control software installation disc 1 set
4. Attached accessories
  Extension cable and duct hose 1 set
  Operation instructions, inspection report, certificate, maintenance manual, etc. 1 set
  Attached special tools 1 set





Our Services:


Pre-sales service
Technical Advisory: Testing method, laboratory planning and advice
Equipment Selection: Type-selecting scheme,FAQ
Product testing scheme
Selling service
Customer Communication,progress communication
Before installation, we will provide guidance of preparation , equipment debugging, equipment commissioning
Cooperate with measuring if need the third party verification
After-sale service
Quality assurance period for one year,lifelong maintenance.
Technical guidance
Feedback within 2 hours after get the call.
Accept OEM,Design service,Buyer lable





Reference picture:



Portable Vibration Test Machine, Small Vibration Shaker With 55kf.G Sine Force 0



Portable Vibration Test Machine, Small Vibration Shaker With 55kf.G Sine Force 1
