Bump Test Machine Vibration Test for High Speed Shock test

Bump Test Machine Vibration  Test for High Speed Shock test
Bump Test Machine Vibration  Test for High Speed Shock test Bump Test Machine Vibration  Test for High Speed Shock test Bump Test Machine Vibration  Test for High Speed Shock test

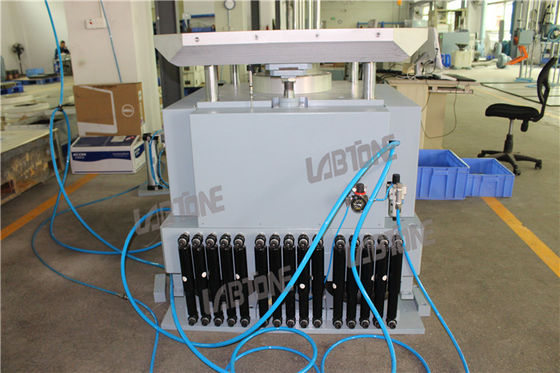

Large Image :  Bump Test Machine Vibration Test for High Speed Shock test

Product Details:
Place of Origin: CHINA
Brand Name: LABTONE
Certification: CE ISO
Model Number: SKM500
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: international wooden case
Delivery Time: 30days
Payment Terms: T/T
Supply Ability: 15 Sets / Month

Bump Test Machine Vibration Test for High Speed Shock test

Description
Table Size: 1000*1000 Mm Payload: 500kg
Wave Form: Haf Sine Pulse Acceleration Range: 5-80 G
Pulse Duration: 6-18ms Bumo Repetition Frequency: 1-80
Drop Height Range: 5-180mm Max Velocity Variation: 2.8m/s
High Light:

bump test equipment

,

bump test vibration

High Speed Shock And Bump Test Machine For Component Testing



Product Description


Excellent Durability Repetitive Mechanical Bump Testing Equipment product is suitable for components, equipment

and other electronic electrician products during transport or using which may be subjected to repeated shocks.

Bump testing machines can also be used to ensure a specimen reaches a satisfying design in structure, or as a means of quality control.

The test based on the specimen undergoing the standard pulse repeat shocking which is specified peak acceleration and duration.



Excellent Durability Repetitive Mechanical Bump Testing Equipment Speicifications



Model SKM500 SKM700 SKM800 SKM1000
Table size(mm) 500*700 700*800 800*800 1000*1000
Payload(kg) 50 100 200 500
Wave form                                                 Half sine pulse
Acceleration range(G) 5-120 5-100 5-100 5-80
Pluse duration(ms)                                                      6--18
Bump repetition frequency 1-120 1-120 1-120 1-80
Drop height range 5-120mm 5-120mm 5-120mm 5-180mm
Max velocity variation 2.2m/s 2.2m/s 2.6m/s 2.8m/s
Machine dimension(mm) 750*660*880 900*900*800 900*960*800 1200*1150*860
Machine weight(kg) 1000 1260 2160 3660
Power & Air supply AC220V ±10% 50Hz Air supply:8kg 23m3 gasholder
Standards GB/T2423.4,GB/T2423.6, IEC68-2-29, JJG497-2000, JISC0042-1995 etc

Bump Test Machine Vibration  Test for High Speed Shock test 0







Packaging & Shipping




Simulation Animatronic Customer Triceratops are covered with air bubble film before put them into the wooden case,which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless,moisture corrosion, good transparency etc







Customer Services



Presales:

  • Technical consultation: test method, laboratory planning and suggestion.
  • Equipment selection: selection scheme, FAQ.
  • Product testing scheme.



In-Sales:

  • Customer communication and progress report.
  • Guidance for pre-installation preparation, equipment commissioning and test run.
  • Calibration (when Third Party’s verification is required).



After-Sales:

  • Technical training: operation of equipment, daily maintenance, common fault diagnosis and troubleshooting.
  • Scheduled on-site service: Detection of problem as soon as possible in order to eliminate equipment and anthropogenic hazards. This is to ensure long term and stable equipment operation as well as delivery of latest technical information.
  • Technical support: special paid services are provided according to customer’s needs.
