3-Phase AC 380V 50Hz Vibration Shaker System , Automotive Vibration Testing IEC 62133

3-Phase AC 380V 50Hz Vibration Shaker System , Automotive Vibration Testing IEC 62133
3-Phase AC 380V 50Hz Vibration Shaker System , Automotive Vibration Testing IEC 62133 3-Phase AC 380V 50Hz Vibration Shaker System , Automotive Vibration Testing IEC 62133 3-Phase AC 380V 50Hz Vibration Shaker System , Automotive Vibration Testing IEC 62133

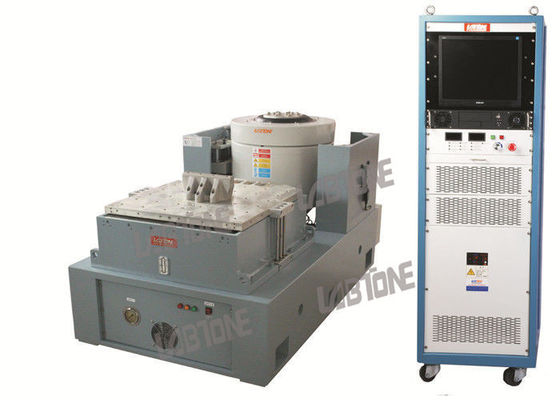

Large Image :  3-Phase AC 380V 50Hz Vibration Shaker System , Automotive Vibration Testing IEC 62133

Product Details:
Place of Origin: Dongguang, China
Brand Name: LABTONE
Certification: CE / ISO
Model Number: EV210
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Plywood Case with Vacuum Packing
Delivery Time: 45 Working Days
Payment Terms: T/T, L/C
Supply Ability: 15 Sets / Month

3-Phase AC 380V 50Hz Vibration Shaker System , Automotive Vibration Testing IEC 62133

Description
Rated Force: 10 KN Max. Velocity: 200 Cm/s
Maximum Displacement: 50 Mm Frequency Range: 2-3000 Hz
Payload: 300 Kg Power Amplifier: 3-phase AC 380V 50Hz
High Light:

vibration table testing equipment

,

industrial shaker table

High-performance Vibration Shaker Vibration Testing Machine IEC 62133





Applicable Standards: MIL-STD, DIN, ISO, ASTM, IEC, ISTA, GB, GJB, JIS, BS etc.




Applicable Industries: Automotive, Electronics, Aerospace, Vessel, Telecommunication, Photoelectronics, Instrument etc.







Specifications:



Model EV203 EV206 EV210 EV220
Vibration Generator VG300/40 VG300/50 VG1000/50 VG2000/50
Frequency(Hz) 2-2500 2-3000 2-3000 2-2500
Max Exiting Force(kg.f) 300 600 1000 2000
Max. Displacement (mmp-p) 38 50 50 50
Max. Acceleration(g) 100 100 100 100
Max. Velocity(cm/s) 120 200 200 200
Payload(kg) 120 200 300 400
Armature Mass(kg) 3 6 10 20
Armature Diameter(mm) φ150 φ200 φ240 φ320
Cooling Method Forced Air Cooling
Vibration Generator Weight(kg) 460 920 1100 1600
Vibration Generator Dimension L*W*H(MM) 750*555*670 800*600*710 845*685*840 1200*870*1100
Power Amplifier Amp3k Amp6k Amp12k Amp22k
Cooling Method Forced Air Cooling
Power Amplifier Weight(kg) 250 320 350 500
Power Amplifier Dimension L*W*H(MM) 800*550*1250 800*550*1250 800*550*1520 800*550*1520
Utility
Requirements
3-phase AC380V ±10% 50Hz
Aggregate Capacity(KW) 9 20 25 35




Features:



  • Rugged suspension system and linear motion guiding, strong carrying capacity, good guiding functions, high stability
  • Load center airbag has high static stiffness and low dynamic stiffness, strong carrying capacity, perfect performance on amplitude variation
  • High efficiency D class power switching, 3-sigma peak current, provide finest power consumption and minimize harmonic distortion
  • Quick self-diagnosis with safety interlock, high safety reliability
  • Airbag shock isolation device for vibration platform without the need of additional foundation, perfect reproduction of vibrational wave and reduce vibration transmittance
  • Provide horizontal and vertical expansion platform for different application
  • Simple controller operation





Dynamic Shaker Vibration Testing Machine simulates the vibration environment under the laboratory condition, and test the impact strength as well as reliability of various vibration test applications. In the laboratory, with the aid of vibration testing system, model simulation of reproduction of sinusoidal, random, resonant search and dwell, classical shock and road simulation, etc. can be achieved. It is essential for product quality assurance, new product research and development.



A Labtone electrodynamic shaker can be used in a variety of applications, making it a versatile and highly adaptable piece of equipment. A Labtone Vibration Shaker can test in a vertical or horizontal orientation; utilize a fixture, sliptable, or head expander.





Customer Services



Presales:

  • Technical consultation: test method, laboratory planning and suggestion.
  • Equipment selection: selection scheme, FAQ.
  • Product testing scheme.



In-Sales:

  • Customer communication and progress report.
  • Guidance for pre-installation preparation, equipment commissioning and test run.
  • Calibration (when Third Party’s verification is required).



After-Sales:

  • Technical training: operation of equipment, daily maintenance, common fault diagnosis and troubleshooting.
  • Scheduled on-site service: Detection of problem as soon as possible in order to eliminate equipment and anthropogenic hazards. This is to ensure long term and stable equipment operation as well as delivery of latest technical information.
  • Technical support: special paid services are provided according to customer’s needs.

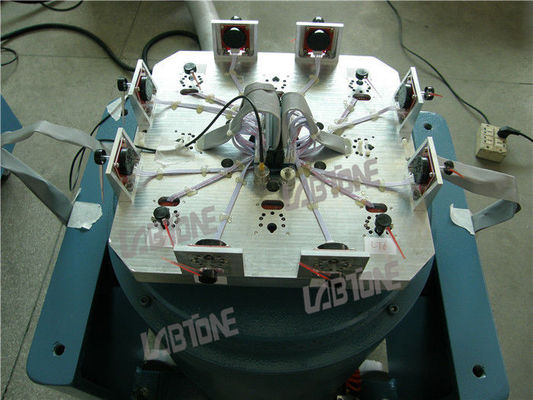

Detailed Pictures:



3-Phase AC 380V 50Hz Vibration Shaker System , Automotive Vibration Testing IEC 62133 0
