Product Details:
|
| Rated Force: | 600 Kg | Max. Velocity: | 200 Cm/s |
|---|---|---|---|
| Maximum Displacement: | 50 Mm | Cooling Method: | Air Cooling |
| Payload: | 200 Kg | Power Amplifier: | 3-phase AC 380V 50Hz |
| High Light: | electrodynamic vibration shaker system,dynamic testing equipment |
||

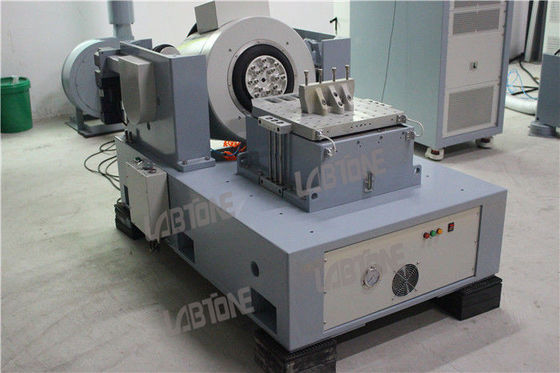

Vibration Test Equipment Manufacturers With IEC 60068-2-6 Standard Axis Test
Dynamic Shaker Vibration Testing Machine simulates the vibration environment under the laboratory condition, and test the impact strength as well as reliability of various vibration test applications. In the laboratory, with the aid of vibration testing system, model simulation of reproduction of sinusoidal, random, resonant search and dwell, classical shock and road simulation, etc. can be achieved. It is essential for product quality assurance, new product research and development.
Electrodynamic shaker Specifications:
| Model | EV206 |
| Vibration Generator | VG300/50 |
| Frequency(Hz) | 2-3000 |
| Max Exiting Force(kg.f) | 600 |
| Max. Displacement (mmp-p) | 50 |
| Max. Acceleration(g) | 100 |
| Max. Velocity(cm/s) | 200 |
| Payload(kg) | 200 |
| Armature Mass(kg) | 6 |
| Armature Diameter(mm) | φ200 |
| Cooling Method | Air Cooling |
| Vibration Generator Weight(kg) | 920 |
| Vibration Generator Dimension L*W*H(MM) | 800*600*710 |
| Power Amplifier | Amp6k |
| Cooling Method | Forced Air Cooling |
| Power Amplifier Weight(kg) | 320 |
| Power Amplifier Dimension L*W*H(MM) | 800*550*1250 |
| Utility Requirements |
3-phase AC380V ±10% 50Hz |
| Aggregate Capacity(KW) | 20 |
Electrodynamic shaker Applicable Standards: MIL-STD, DIN, ISO, ASTM, IEC, ISTA, GB, GJB, JIS, BS etc.
Electrodynamic shaker Applicable Industries: Automotive, Electronics, Aerospace, Vessel, Telecommunication, Photoelectronics, Instrument etc.
Electrodynamic shaker Features:
Electrodynamic shaker Working Principle:
Customer Services
Presales:
In-Sales:
After-Sales:
Detailed Pictures:
