Product Details:
|
Max Exiting Force: | 600kg (6kN) | Frequency Range: | 2-3000 Hz |
---|---|---|---|
Max Displacement: | 50 Mm | Payload: | 200kg |
Max Velocity: | 200cm/s | Power Supply: | 3 Phase AC 380V 50Hz |
Highlight: | electrodynamic vibration shaker system,vibration testing equipment |

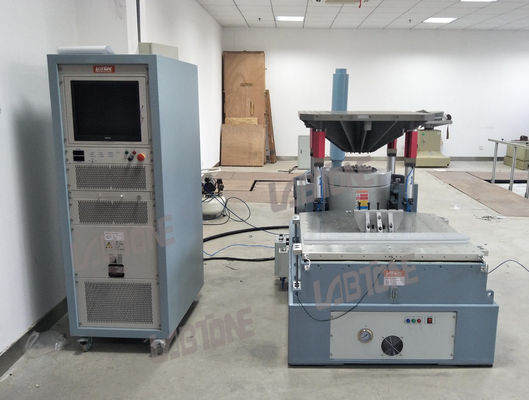

2-3000Hz Vibration Testing Machine for Military Products Meet MIL-STD-810
Applicable Standards: MIL-STD, DIN, ISO, ASTM, IEC, ISTA, GB, GJB, JIS, BS etc.
Applicable Industries: Automotive, Electronics, Aerospace, Vessel, Telecommunication, Potoelectronics, Instrument etc.
Features:
Working Principle:
Specifications: EV103-EV220
Model | EV103 | EV203 | EV106 | EV206 | EV210 | EV220 |
Vibration Generator | VG300/25 | VG300/40 | VG600/25 | VG300/50 | VG1000/50 | VG2000/50 |
Frequency(Hz) | 2-4000 | 2-2500 | 2-3000 | 2-3000 | 2-3000 | 2-2500 |
Max Exiting Force(kg.f) | 300 | 300 | 600 | 600 | 1000 | 2000 |
Max. Displacement (mmp-p) | 25 | 38 | 25 | 50 | 50 | 50 |
Max. Acceleration(g) | 100 | 100 | 100 | 100 | 100 | 100 |
Max. Velocity(cm/s) | 200 | 120 | 180 | 200 | 200 | 200 |
Payload(kg) | 110 | 120 | 200 | 200 | 300 | 400 |
Armature Mass(kg) | 3 | 3 | 6 | 6 | 10 | 20 |
Armature Diameter(mm) | φ150 | φ150 | φ200 | φ200 | φ240 | φ320 |
Cooling Method | Forced Air Cooling | |||||
Vibration Generator Weight(kg) | 460 | 460 | 720 | 920 | 1100 | 1600 |
Vibration Generator Dimension L*W*H(MM) | 750*560*670 | 750*555*670 | 800*600*710 | 800*600*710 | 845*685*840 | 1200*870*1100 |
Power Amplifier | Amp3k | Amp3k | Amp6k | Amp6k | Amp12k | Amp22k |
Cooling Method | Forced Air Cooling | |||||
Power Amplifier Weight(kg) | 250 | 250 | 320 | 320 | 350 | 500 |
Power Amplifier Dimension L*W*H(MM) | 800*550*1250 | 800*550*1250 | 800*550*1250 | 800*550*1250 | 800*550*1520 | 800*550*1520 |
Utility Requirements |
3-phase AC380V ±10% 50Hz | |||||
Aggregate Capacity(KW) | 8 | 9 | 18 | 20 | 25 | 35 |
Service
Pre-Sales Service
1)Technical consultation: test method, laboratory planning and suggestion.
2)Equipment selection: selection scheme, FAQ.
3)Product testing scheme.
4)Customer communication and progress report.
After-Sales Service
1)Technical training: operation of equipment, daily maintenance, common fault diagnosis and troubleshooting.
2)Scheduled on-site service: Detection of problem as soon as possible in order to eliminate equipment and anthropogenic hazards. This is to ensure long term and stable equipment operation as well as delivery of latest technical information.
3)Technical support: special paid services are provided according to customer’s needs.
Packing:
Production pictures for reference:
