50-10000G Acceleration Shock Testing System High Acceleration Drop Shock Tester For Product Fragility Testing

Large Image : 50-10000G Acceleration Shock Testing System High Acceleration Drop Shock Tester For Product Fragility Testing

Product Details:

Place of Origin:	China
Brand Name:	LABTONE
Certification:	CE, ISO
Model Number:	HSKT20

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Plywood Case with Vacuum Packing
Delivery Time:	15 working days
Payment Terms:	L/C, T/T
Supply Ability:	45 Sets / Month

Contact Now

50-10000G Acceleration Shock Testing System High Acceleration Drop Shock Tester For Product Fragility Testing

Description

Model:	HSKT20	Acceleration Range::	50-10000 G
MTable Size::	200 X 200 Mm	Max Velocity:	18.8 M/s
Pulse Duration Range::	0.2~18 Ms	Highlight::	Mechanical Testing Equipment, Vibration And Shock Testing
Highlight:	high acceleration shock testing system , drop shock tester for fragility testing , 50-10000G acceleration shock tester

High Speed Drop Shock Tester Product description

Application

Apply high acceleration to computer's parts, digital cameras, smart phones, tablets, mobiles, displays, small household appliances, and mobile products for the Product fragility testing.

The equipment conforms to such testing specifications as GB/T2423-2008, GJB150, GJB360, GJB548, GJB1217, UN38.3, MIL-STD-202F, IEC-68-2-27, MIL-STD-810F, MIL-STD-883E, etc.

High Speed Drop Shock Tester Specification

Model	HSKT10	HSKT10D	G-HSKT15	G-HSKT30	G-HSKT35
Table Size(mm)	200 x 250	300 x 300	250 x 250	250 x 250	250 x 250
Max. Payload (kg)	10	25	10	10	10
Shock Pulse	Half Sine Wave
Acceleration Range(G)	20~2000 (bare table)	20~10000 (bare table)	20~15000 (bare table)	20~30000 (bare table)	20~35000 (bare table)
Pulse Duration(ms)	0.2~18		0.1~11

Model		SKT30	SKT50	SKT100	SKT200	SKT300	SKT600	SKT1000
Table Size (cm)		40 x 40	50 x 60	70 x 80	100 x 100	120 x 120	150 x 150	200 x 200
Max. Specimen Weight(kg)		30	50	100	200	300	600	1000
Max. Acceleration (G)	Half Sine	600	600	600	500	500	300	300
	Saw-tooth	100	100	100	100	100	100	100
	Square		150	150	150	100	100	100
Pulse duration (ms)	Half Sine	30—0.5	30～1	30～1	30～2	20～3	20～3	20～3
	Saw-tooth	18～6	18～6	18～6	18～6	18～6	16～6	18～6
	Square		30～6	30～6	30～6	30～6	30～6	30～6
Controller cabinet dimension(cm)		W55D50H80
Machine weight(Kg)		1900	2300	3200	4200	8500	15500	21500
Power supply		3(phase) AC380V 50/60Hz Compressed air 0.5～0.8MPa
Standards		GB/T2423-2008 GJB1217 GJB360.23 GJB150 GJB548 MIL-STD-202F IEC-68-2-27 MIL-STD-883E MIL-STD-810F ISTA UL

High Speed Drop Shock Tester Main Feature

HSKT references JEDEC JESD22-B111. HSKT is the best Shock Machine to make sure the product, smartphones, tablets and others mobiles can withstand shock.
A half-sine wave shock can be generated to produce a required pulse duration by replacing the rubber pad.
All operation accomplished automatically. Rebound brake mechanism by automatically controlled.
High rigid shock table.
Using the anvil as a vibration insulation seismic base, to reduce the vibration effect the surrounding.

Customer Services

Presales:

Technical consultation: test method, laboratory planning and suggestion.
Equipment selection: selection scheme, FAQ.
Product testing scheme.

In-Sales:

Customer communication and progress report.
Guidance for pre-installation preparation, equipment commissioning and test run.
Calibration (when Third Party’s verification is required).

After-Sales:

Technical training: operation of equipment, daily maintenance, common fault diagnosis and troubleshooting.

Scheduled on-site service: Detection of problem as soon as possible in order to eliminate equipment and anthropogenic hazards. This is to ensure long term and stable equipment operation as well as delivery of latest technical information.

Technical support: special paid services are provided according to customer’s needs.

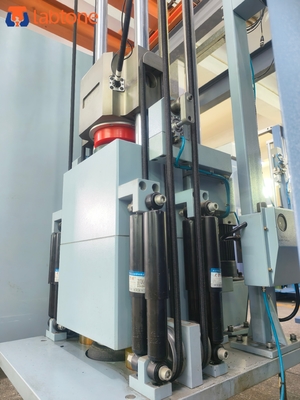

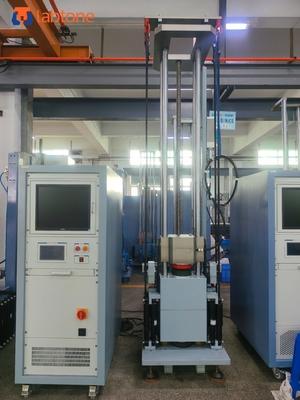

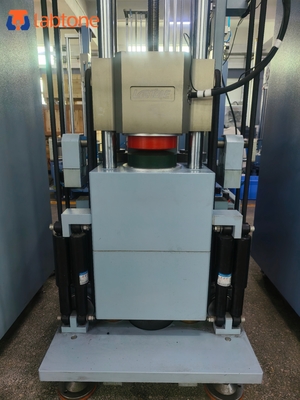

Details images :

50-10000G Acceleration Shock Testing System High Acceleration Drop Shock Tester For Product Fragility Testing 0

50-10000G Acceleration Shock Testing System High Acceleration Drop Shock Tester For Product Fragility Testing 1
