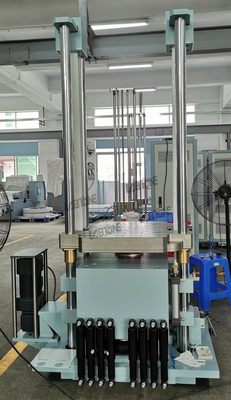

50KG Payload Bump Test System For Half Sine Wave Complies With CE / ISO Standards

50KG Payload Bump Test System For Half Sine Wave Complies With CE / ISO Standards
50KG Payload Bump Test System For Half Sine Wave Complies With CE / ISO Standards 50KG Payload Bump Test System For Half Sine Wave Complies With CE / ISO Standards 50KG Payload Bump Test System For Half Sine Wave Complies With CE / ISO Standards

Large Image :  50KG Payload Bump Test System For Half Sine Wave Complies With CE / ISO Standards

Product Details:
Place of Origin: CHINA
Brand Name: LABTONE
Certification: CE,ISO
Model Number: SKM500
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: International wooden case
Delivery Time: 30-35 working days
Payment Terms: T/T, L/C
Supply Ability: 15 Sets / Month
Contact Now

50KG Payload Bump Test System For Half Sine Wave Complies With CE / ISO Standards

Description
Model:: SKM500 Table Size:: 500*700mm
Ax. Payload:: 50kg Wave Form:: Half Sine Force
Acceleration Range:: 5~120g Pulse Duration:: 6~18ms
Highlight:: 700mm Bump Test Machine, Half Sine Force Bump Test Machine, 50g Payload Bump Testing Machine
Highlight:

CE Bump Test System

,

50KG Payload Bump Test System

,

Half Sine Wave Bump Test System

Introduction


Excellent Durability Repetitive Mechanical Bump Testing Equipment product is suitable for components, equipmentand other electronic electrician products during transport or using which may be subjected to repeated shocks.

SKM500 provides high quality shock pulse capability with the added benefit of a must faster cycle time up to 120 shock impacts per minute. SKM500 Shock Test System can generate high energy impacts with velocity changes up to 6.8m/s.



Excellent Durability Repetitive Mechanical Bump Testing Equipment Speicifications



Main parameters of the shock tester
Table Size(mm) 500 × 700
Max. Specimen Weight 100KG
Peak acceleration

Half sine wave: 5 to 200G


Pulse duration

Half sine wave: 2 to 18 ms


Max. Velocity change 6.8m/s
Measuring system
Input channels 2 channels(hardware)
Sampling frequency 192KHz
Pulse duration 0.5 to 100ms
Max. acceleration 5000G
Communication interface USB2.0
Supportive standard ISO, UN38.3,MIL-STD-810, user defined
Operating system Win7/Win8
System acceleration sensor
Brand LAB
Model 11100
Output mode IEPE TYPE
Sensitivity 10 ±10% mV/g
Frequency range 1.2 to 12KHz
Acceleration range ±500G
Operating environment -40 to +120℃
Other information
Power supply AC, 1 phase, 220V±10% 3KVA
Compressed air 0.5 to 0.8Mpa
Temperature RT~40℃
Humidity 25℃, ＜ 85RH%
Safety

Mean time between failure≥ 5000 hours;

Continuous use of half sine waveform generator≥ 10000 times,

Storage time in clean environment at normal temperature≥ 5 years.
Applicable standards GB2423.5, GJB150.18, GJB360.23,UN38.3,IEC68-2-27, MIL—STD202F, MIL-STD810B, GB/T18287, etc.
Testing standard JJG541-2005



Packaging & Shipping




Simulation Animatronic Customer Triceratops are covered with air bubble film before put them into the wooden case,which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless,moisture corrosion, good transparency etc







Customer Services



Presales:

  • Technical consultation: test method, laboratory planning and suggestion.
  • Equipment selection: selection scheme, FAQ.
  • Product testing scheme.



In-Sales:

  • Customer communication and progress report.
  • Guidance for pre-installation preparation, equipment commissioning and test run.
  • Calibration (when Third Party’s verification is required).



After-Sales:

  • Technical training: operation of equipment, daily maintenance, common fault diagnosis and troubleshooting.
  • Scheduled on-site service: Detection of problem as soon as possible in order to eliminate equipment and anthropogenic hazards. This is to ensure long term and stable equipment operation as well as delivery of latest technical information.
  • Technical support: special paid services are provided according to customer’s needs.
