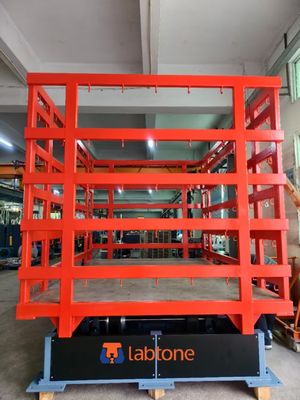

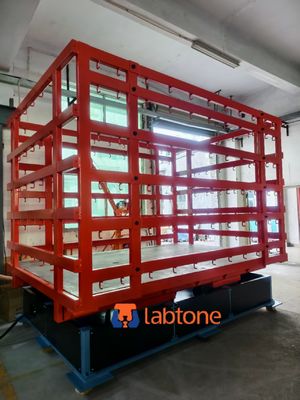

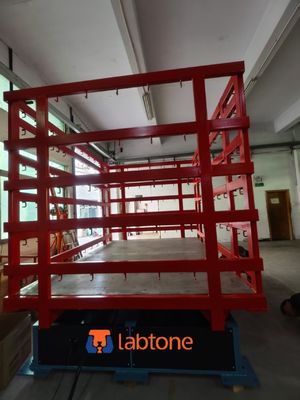

Large Sized Packaging Transportation Simulators Mechnical Vibration Testing Shaker Table YST3200 Perform ASTM D4728 ASTM D999

Large Image : Large Sized Packaging Transportation Simulators Mechnical Vibration Testing Shaker Table YST3200 Perform ASTM D4728 ASTM D999

Product Details:

Place of Origin:	CHINA
Brand Name:	LABTONE
Certification:	CE, ISO
Model Number:	YST3200

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	International wooden case
Delivery Time:	45 working days
Payment Terms:	T/T
Supply Ability:	15 Sets Per Month

Contact Now

Large Sized Packaging Transportation Simulators Mechnical Vibration Testing Shaker Table YST3200 Perform ASTM D4728 ASTM D999

Description

Model:	YST3200	Max Payload(kg):	1000
Table Size(mm):	2300*3300	Frequency Range:	2~5Hz(120~300)RPM
Displacement:	25.4mm Fixed	Test Motions:	Rotary (Synchronous)
Highlight::	Vibration Shaker Table Systems, Mechanical Vibration Testing
Highlight:	Simulators Vibration Testing , Large-sized Packaging Vibration Testing , Transportation Vibration Testing

Description and Application

The YST 3200 performs repetitive shock, loose load, or bounce tests in accordance with ISTA, ASTM, TAPPI, ISO, MIL-STD, UN, DOT, and other industry, government, and international standards. The YST2000 operates on an eccentric cam principle, and can be easily adjusted to perform circular-synchronous or vertical linear motions

Standard features

Rotary (Synchronous) Motion (Standard)
Digital LCD Speed Display
Digital Timer w/ Test Settings & Expiration
Infinitely Variable Frequency Adjustment throughout the 2-5 Hz Range
Adjustable High Back Fences
Low Front Fences
Conveniently Mounted Standard Controls
Movable Floor Stand
Motor Controls Pre-Wired Per Customer Specifications
Hard Decking for Excellent Wear Resistance
100# – 400# & 1000# – 2000# Capacity

Optional features

Non-Synchronous Motion (N/S)
Vertical Linear Motion (V/L)
Non – Standard Voltage
Expanded Table
CE compliant

Specifications

Model	YST100	YST200	YST500	YST1000	YST2000
Max Payload(kg)	100	200	500	1000	2000
Table Size(mm)	1000x1200	1200x1200	1200x1500	1500x1500	1500x1500
Frequency Range	2~5Hz(120~300)RPM
Displacement	25.4mm Fixed
Test Motions	Rotary (Synchronous)
Power Supply	AC220V±10% 50Hz		3-phase 380V±10% 50Hz

Customer Services:

Presales

Technical consultation: test method, laboratory planning and suggestion.
Equipment selection: selection scheme, FAQ.
Product testing scheme.

In-Sales

Customer communication and progress report.
Guidance for pre-installation preparation, equipment commissioning and test run.
Calibration (when Third Party’s verification is required).

After-Sales

Technical training: operation of equipment, daily maintenance, common fault diagnosis and troubleshooting.

Scheduled on-site service: Detection of problem as soon as possible in order to eliminate equipment and anthropogenic hazards. This is to ensure long term and stable equipment operation as well as delivery of latest technical information.

Technical support: special paid services are provided according to customer’s needs.
