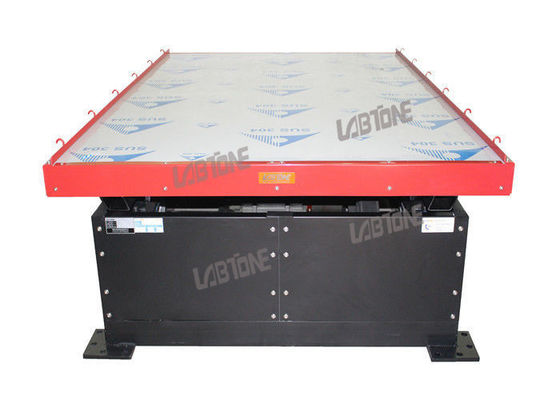

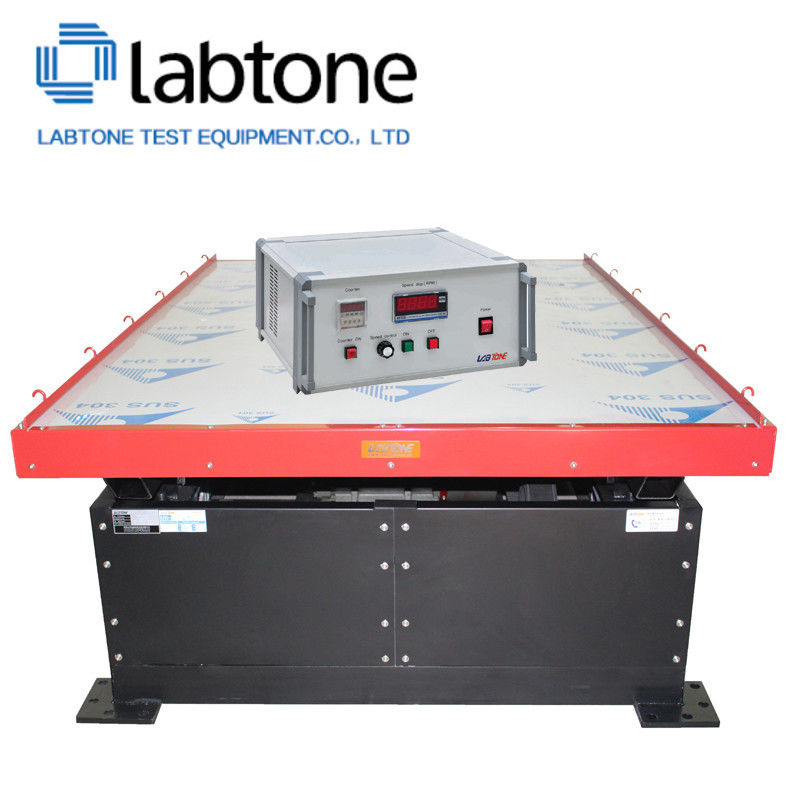

2000kg Package Mechnical Shaker Table Perform ASTM D4728 ASTM D999

2000kg Package Mechnical Shaker Table Perform ASTM D4728 ASTM D999
2000kg Package Mechnical Shaker Table Perform ASTM D4728 ASTM D999 2000kg Package Mechnical Shaker Table Perform ASTM D4728 ASTM D999 2000kg Package Mechnical Shaker Table Perform ASTM D4728 ASTM D999

Large Image :  2000kg Package Mechnical Shaker Table Perform ASTM D4728 ASTM D999

Product Details:
Place of Origin: CHINA
Brand Name: LABTONE
Certification: CE, ISO
Model Number: YST2000
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: International wooden case
Delivery Time: 30 working days
Payment Terms: T/T
Supply Ability: 15 Sets Per Month
Contact Now

2000kg Package Mechnical Shaker Table Perform ASTM D4728 ASTM D999

Description
Payload:: 2000 Kg Frequency:: 2~5Hz(120~300)RPM
Vibration Pattern:: Rotation, 30° Unbalance Vibration(asynchronous) Table Size:: 1500 X 1500
Amplitude:: 1 Inch (25.4MM) Fixed Power Supply:: AC 380V±10% 50Hz
Highlight:: Vibration Shaker Table Systems, Vibration Shaker Table
Highlight:

2000kg Package Shaker Table

,

D999 Shaker Table

,

ASTM D4728 Shaker Table

Description and Application

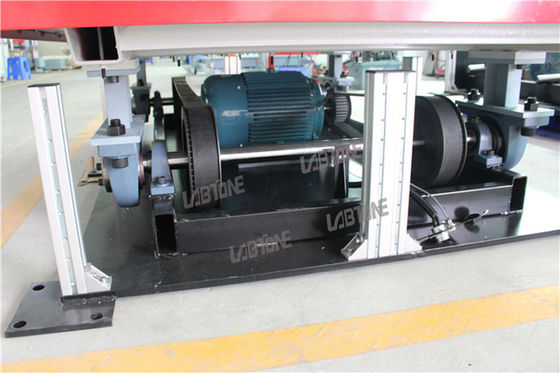

The YST 2000 performs repetitive shock, loose load, or bounce tests in accordance with ISTA, ASTM, TAPPI, ISO, MIL-STD, UN, DOT, and other industry, government, and international standards. The YST2000 operates on an eccentric cam principle, and can be easily adjusted to perform circular-synchronous or vertical linear motions




Standard features

  • Rotary (Synchronous) Motion (Standard)
  • Digital LCD Speed Display
  • Digital Timer w/ Test Settings & Expiration
  • Infinitely Variable Frequency Adjustment throughout the 2-5 Hz Range
  • Adjustable High Back Fences
  • Low Front Fences
  • Conveniently Mounted Standard Controls
  • Movable Floor Stand
  • Motor Controls Pre-Wired Per Customer Specifications
  • Hard Decking for Excellent Wear Resistance
  • 100# – 400# & 1000# – 2000# Capacity

Optional features

  • Non-Synchronous Motion (N/S)
  • Vertical Linear Motion (V/L)
  • Non – Standard Voltage
  • Expanded Table
  • CE compliant




Specifications

Model YST100 YST200 YST500 YST1000 YST2000

Max Payload(kg)		 100 200 500 1000 2000
Table Size(mm) 1000x1200 1200x1200 1200x1500 1500x1500 1500x1500
Frequency Range 2~5Hz(120~300)RPM
Displacement 25.4mm Fixed
Test Motions Rotary (Synchronous)
Power Supply AC220V±10% 50Hz 3-phase 380V±10% 50Hz


























Customer Services:

Presales

  • Technical consultation: test method, laboratory planning and suggestion.
  • Equipment selection: selection scheme, FAQ.
  • Product testing scheme.

In-Sales

  • Customer communication and progress report.
  • Guidance for pre-installation preparation, equipment commissioning and test run.
  • Calibration (when Third Party’s verification is required).

After-Sales

  • Technical training: operation of equipment, daily maintenance, common fault diagnosis and troubleshooting.
  • Scheduled on-site service: Detection of problem as soon as possible in order to eliminate equipment and anthropogenic hazards. This is to ensure long term and stable equipment operation as well as delivery of latest technical information.
  • Technical support: special paid services are provided according to customer’s needs.
  •
  •
