500kg Payload Mechanical Vibration Shaker For Rotary Motion Vibration With ISTA Standard

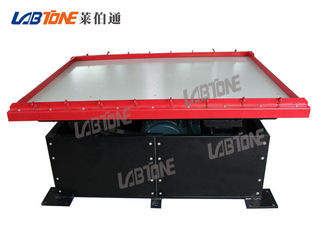

Large Image : 500kg Payload Mechanical Vibration Shaker For Rotary Motion Vibration With ISTA Standard

Product Details:

Place of Origin:	CHINA
Brand Name:	LABTONE
Certification:	CE, ISO
Model Number:	YST500

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	International wooden case
Delivery Time:	45 working days
Payment Terms:	T/T
Supply Ability:	15 Sets Per Month

Contact Now

500kg Payload Mechanical Vibration Shaker For Rotary Motion Vibration With ISTA Standard

Description

Payload::	500 Kg	Frequency::	2~5Hz(120~300)RPM
Vibration Pattern::	Rotation, 30° Unbalance Vibration(asynchronous)	Table Size::	1200 X 1500mm
Amplitude::	1 Inch (25.4mm) Fixed	Power Supply::	AC 380V±10% 50Hz
Highlight::	Vibration Shaker Table Systems, Vibration Shaker Table
Highlight:	500kg Mechanical Vibration Shaker , ISTA Standard Mechanical Vibration Shaker , Rotary Motion Vibration Shaker

Description and Application

Mainly used in repeating impact, unloading or jump test that comply to ISTA , ASTM, TAPPI, ISO MIL-STD, FED-STD, UN, DOT and other industrial and government standards. Frequency range is 2-5Hz with fixed displacement of 1 inch (25.4 mm)and maximum acceleration of 1.25 G.

YST series vibration shakers apply electric cam principle to achieve rotation (marquee), vertical and non-synchronized (30°unbalance vibration) vibration modes

Features

Precise digital display for the vibration frequency.
Synchronous low noise wide belt drive mechanism.
Guide Rail type fixture for specimen, easy to operate.
Heavy channel iron base equipped with damper rubber makes the machine easy to install, having large loading capacity, ensuring stable running.
Rotational Vibration method complies with international test standard.
Suitable for toys, electronics, furniture, gifts, porcelain, packaging industries for packaging transportation simulation test.

Operating mode

Specifications

Model	YST100	YST200	YST500	YST1000	YST2000
Max Payload(kg)	100	200	500	1000	2000
Table Size(mm)	1000x1200	1200x1200	1200x1500	1500x1500	1500x1500
Frequency Range	2~5Hz(120~300)RPM
Displacement	25.4mm Fixed
Test Motions	Rotary (Synchronous)
Power Supply	AC220V±10% 50Hz		3-phase 380V±10% 50Hz

Detailed Picture

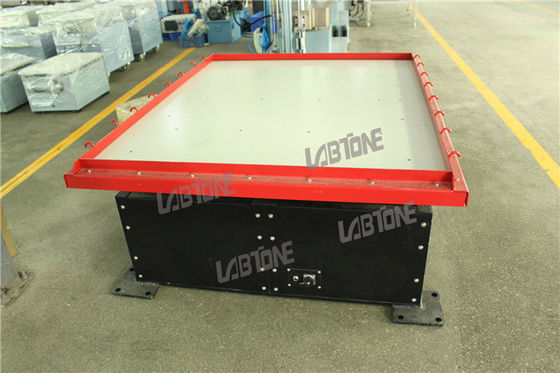

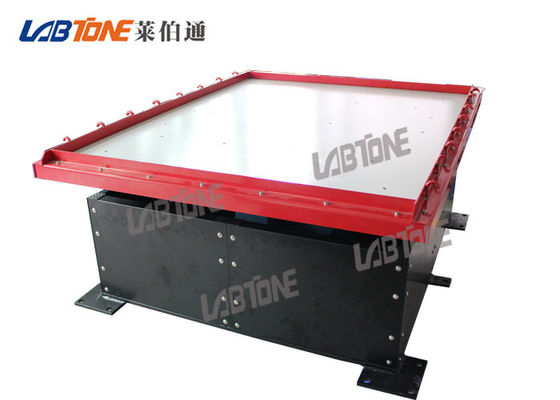

500kg Payload Mechanical Vibration Shaker For Rotary Motion Vibration With ISTA Standard 1
