Large Sized Packaging Transportation Simulators Payload 1000kg For Vibration Test With ISTA / ASTM / TAPPI Standards

Large Sized Packaging Transportation Simulators Payload 1000kg For Vibration Test With ISTA / ASTM / TAPPI Standards
Large Sized Packaging Transportation Simulators Payload 1000kg For Vibration Test With ISTA / ASTM / TAPPI Standards Large Sized Packaging Transportation Simulators Payload 1000kg For Vibration Test With ISTA / ASTM / TAPPI Standards Large Sized Packaging Transportation Simulators Payload 1000kg For Vibration Test With ISTA / ASTM / TAPPI Standards

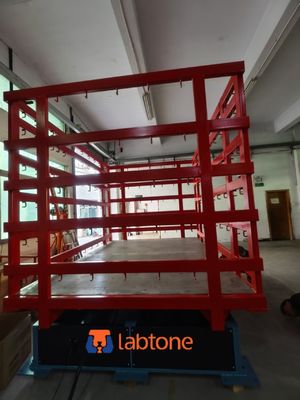

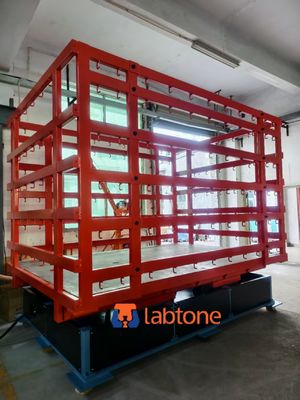

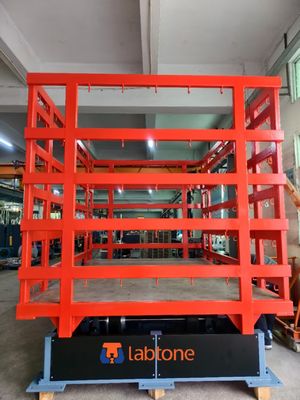

Large Image :  Large Sized Packaging Transportation Simulators Payload 1000kg For Vibration Test With ISTA / ASTM / TAPPI Standards

Product Details:
Place of Origin: CHINA
Brand Name: LABTONE
Certification: CE, ISO
Model Number: YST3200
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: International wooden case
Delivery Time: 60 working days
Payment Terms: T/T
Supply Ability: 15 Sets Per Month
Contact Now

Large Sized Packaging Transportation Simulators Payload 1000kg For Vibration Test With ISTA / ASTM / TAPPI Standards

Description
Payload:: 1000 Kg Frequency:: 2~5Hz(120~300)RPM
Vibration Pattern:: Rotation, 30° Unbalance Vibration(asynchronous) Table Size:: 2300*3300mm
Amplitude:: 1 Inch (25.4MM) Fixed Power Supply:: AC 380V±10% 50Hz
Highlight:: Vibration Shaker Table Systems, Vibration Shaker Table
Highlight:

ISTA Transportation Simulators

,

TAPPI Transportation Simulators

Description and Application

Mainly used in repeating impact, unloading or jump test that comply to ISTA , ASTM, TAPPI, ISO MIL-STD, FED-STD, UN, DOT and other industrial and government standards. Frequency range is 2-5Hz with fixed displacement of 1 inch (25.4 mm)and maximum acceleration of 1.25 G.



YST series vibration shakers apply eccentric cam principle to achieve rotation (marquee), vertical and non-synchronized (30°unbalance vibration) vibration modes



Features

  • Precise digital display for the vibration frequency.
  • Synchronous low noise wide belt drive mechanism.
  • Guide Rail type fixture for specimen, easy to operate.
  • Heavy channel iron base equipped with damper rubber makes the machine easy to install, having large loading capacity, ensuring stable running.
  • Rotational Vibration method complies with international test standard.
  • Suitable for toys, electronics, furniture, gifts, porcelain, packaging industries for packaging transportation simulation test.

Operating mode


Large Sized Packaging Transportation Simulators Payload 1000kg For Vibration Test With ISTA / ASTM / TAPPI Standards 0


Specifications



Model YST100 YST200 YST500 YST1000 YST2000



Max Payload(kg)

 100 200 500 1000 2000

Table Size(mm)



 1000x1200 1200x1200 1200x1500 1500x1500 1500x1500
Frequency Range 2~5Hz(120~300)RPM
Displacement 25.4mm Fixed
Test Motions Rotary (Synchronous)
Power Supply AC220V±10% 50Hz 3-phase 380V±10% 50Hz
