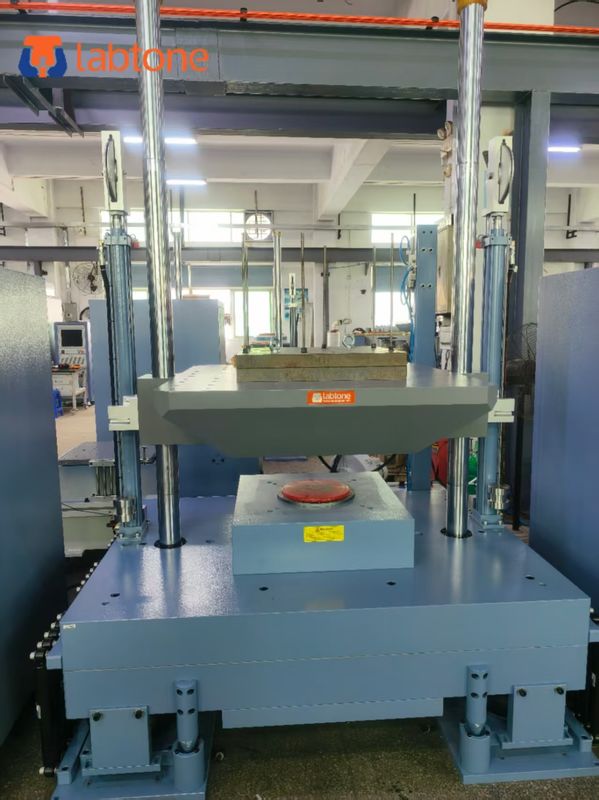

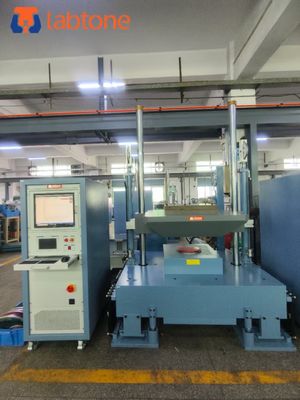

Bump Test Machine For Electronic Components 1000*1000mm SKM1000

Large Image : Bump Test Machine For Electronic Components 1000*1000mm SKM1000

Product Details:

Place of Origin:	CHINA
Brand Name:	LABTONE
Certification:	CE,ISO
Model Number:	SKM1000

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	International wooden case
Delivery Time:	15-20 days
Payment Terms:	L/C
Supply Ability:	50 Sets / Month

Contact Now

Bump Test Machine For Electronic Components 1000*1000mm SKM1000

Description

Max. Payload::	500kg	Acceleration Range::	5~80g
Table Size::	1000*1000mm	Wave Form::	Half Sine Force
Pulse Duration::	6~18ms	Highlight::	1000*1000mm Bump Test Machine, Bump Test Machine For Electronic Components, 500kg Bump Tester

Description

Components and other electronic and electrical products may experience repeating impact during transportation or use. Bump test can be used as a method to ensure the satisfaction of design structure or as a quality assurance method. Specimen will experience regular peak acceleration and continuous impact with standard pulse during the bump test.

Standards: GB/T2423.4 GB/T2423.6 IEC68-2-29 JJG497-2000 JIS C0042-1995 etc

Specifications

Model	SKM500	SKM800	SKM1000	SKM1500
Table size (mm)	500*700	800*800	1000*1000	1500*1500
Max. Payload (kg)	50	200	500	1000
Wave Form	Half Sine Wave
Acceleration Range (g)	5~120	5~100	5~80	5~60
Pulse duration(ms)	6~18
Bump repetition frequency(Hz)	1~20		1~80
Drop height range(mm)	350		5~180
Maximum acceleration variation(m/s)	2.2	2.6	2.8
Machine dimension(mm)	12509501480	155010401550	12001150860	160016501200
Machine weight(kg)	2200	2900	3660	6500
Power & Air Supply	AC220V±10% 50Hz Air supply(8kg 23m³ gasholder)
Standards	GB/T2423.4 GB/T2423.6 IEC68-2-29 JJG497-2000 JIS C0042-1995 etc

FAQ

1. How to you attach the hardware you're testing to your shaker?

By means of a fixture, usually aluminium or magnesium for lightness coupled with rigidity. They can be cast, or smaller fixtures machined from solid stock. Most fixtures are welded.

2. How do you control shakers?

If we're looking for resonances in the product we're testing, we command the shaker to shake the product at one frequency at a time but to vary that test frequency, to sweep it over a range of frequencies. But more realistically, we command the shaker to vibrate randomly and to excite all the resonances simultaneously. Control commands go into the keyboard of a specially programmed computer.

3. What are those resonances? Are they bad?

Have you ever noticed the steering wheel moving with rather a large displacement amplitude, larger than the input to the column? That magnification is called resonance. Possibly it annoys you. There's a slight chance that in a few years that whipping of the steering column might cause bending fatigue failure. When we shake an automotive or ship or land vehicle instrument, we're looking for, for example, portions of printed wiring boards (PWBs) responding with greater motion than we're inputting. That flexing may damage PWB wiring, it may damage the attached components and the PWB.

Service

Pre-Sales

Technical consultation: test method, laboratory planning and suggestion.
Equipment selection: selection scheme, FAQ.
Product testing scheme.

In-Sales

Customer communication and progress report.
Guidance for pre-installation preparation, equipment commissioning and test run.
Calibration (when third party's verification is required).

After-Sales

Technical training: operation of equipment, daily maintenance, common fault diagnosis and troubleshooting.
Scheduled on-site service: Detection of problem as soon as possible in order to eliminate equipment and anthropogenic hazards. This is to ensure long term and stable equipment operation as well as delivery of latest technical information.
Technical support: special paid services are provided according to customer’s needs.
