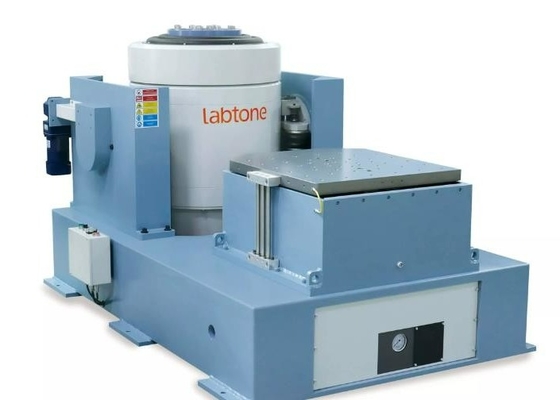

Force Air Cooled Electromagnetic Vibration Test System 5000kgf For Laboratory

Force Air Cooled Electromagnetic Vibration Test System 5000kgf For Laboratory
Force Air Cooled Electromagnetic Vibration Test System 5000kgf For Laboratory

Large Image :  Force Air Cooled Electromagnetic Vibration Test System 5000kgf For Laboratory

Product Details:

Place of Origin: Dongguang, China
Brand Name: LABTONE
Certification: CE / ISO
Model Number: EV350

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: International standard wooden case
Delivery Time: 45 Working Days
Payment Terms: T/T, L/C
Supply Ability: 15 Sets / Month
Detailed Product Description
Product Name: Vibration Tester Systems Max. Velocity: 2 M/s
Maximum Displacement: 76 Mmp-p Frequency Range: 5-2700 Hz
Payload: 500 Kg Rated Force: 5000kgf
Max. Acceleration: 90g Armature Diameter: 442mm
High Light:

Lab 2m/s Vibration Test System

,

5000kgf Vibration Testing System

,

Sinusoidal Vibration Test System

5000 kgf Force Air-Cooled Electromagnetic Vibration Test System





Standards: MIL-STD, DIN, ISO, ASTM, IEC, ISTA, GB, GJB, JIS, BS etc.



Air Cooled Vibration Test System 4000kgf-7000kgf



Labtone EV series of electrodynamic shaker vibration test system simulate the vibration environment under the laboratory condition, and test the impact strength as well as reliability of various vibration test applications.



It simulate the vibration environment under the laboratory condition, and test the impact strength as well as reliability of various vibration test applications. In the laboratory, with the aid of vibration testing system, simulations of reproduction of sinusoidal, random, resonant search and dwell, classical shock and road models, etc. can be achieved. It is essential for product quality assurance, new product research and development.



Specifications

Model EV240 EV350 EV260 EV370
Frequency(Hz) 5-3000 5-2700 5-2800 5-2500
Max Exiting Force(kg.f) 4000 5000 6000 7000
Max. Displacement (mmp-p) 51 76 51 76
Max. Acceleration(g) 100 90 100 100
Max. Velocity(m/s) 2 2 2 2
Payload(kg) 500 500 500 1000
Armature Diameter(mm) φ342 φ442 φ442 φ452
Cooling Method Forced Air Cooling
Vibration Generator Weight(kg) 2800 4900 4900 5300
Vibration Generator Dimension L*W*H(MM) 1235*1000*1230 1550*1200*1310 1550*1180*1310 1550*1180*1350
Power Amplifier Weight(kg) 520 560 600 640
Power Amplifier Dimension L*W*H(MM) 620*960*2000 620*960*2000 620*960*2000 620*960*2000
Utility
Requirements
3-phase AC380V ±10% 50Hz





Description



Labtone EV series of electromagnetic vibration testing system is specially designed to meet the need for long time operation. Vertical and horizontal vibrations can be achieved by the installation of vibration resistant base. The standard platform is equipped with high efficiency airbag shock isolation device, so that the vibration transmitted to the building can be minimized. There is no need for additional foundation in most of the cases.



A complete set of vibration testing system is composed of shaker, power amplifier and vibration measuring control system, in accordance with the relevant national and international standards (such as: MIL-STD, DIN, ISO, ASTM, IEC, ISTA, GB, GJB, JIS, BS, etc.) to provide technical support for establishing product quality inspection.





Main Features

  • Rugged suspension system and linear motion guiding, strong carrying capacity, good guiding functions, high stability
  • Load center airbag has high static stiffness and low dynamic stiffness, strong carrying capacity, perfect performance on amplitude variation
  • High efficiency D class power switching, 3-sigma peak current, provide finest power consumption and minimize harmonic distortion
  • Quick self-diagnosis with safety interlock, high safety reliability
  • Airbag shock isolation device for vibration platform without the need of additional foundation, perfect reproduction of vibrational wave and reduce vibration transmittance
  • Provide horizontal and vertical expansion platform for different application
  • Simple controller operation





Service



1.Pre-Sales Service

  • Technical consultation: test method, laboratory planning and suggestion.
  • Equipment selection: selection scheme, FAQ.
  • Product testing scheme.
  • Customer communication and progress report.

2.In-sales

  • Customer communication and progress report.
  • Guidance for pre-installation preparation, equipment commissioning and test run.
  • Calibration (when third party's verification is required).

3.After-Sales Service

  • Technical training: operation of equipment, daily maintenance, common fault diagnosis and troubleshooting.
  • Scheduled on-site service: Detection of problem as soon as possible in order to eliminate equipment and anthropogenic hazards. This is to ensure long term and stable equipment operation as well as delivery of latest technical information.
  • Technical support: special paid services are provided according to customer’s needs.





Product images



Force Air Cooled Electromagnetic Vibration Test System 5000kgf For Laboratory 0



Force Air Cooled Electromagnetic Vibration Test System 5000kgf For Laboratory 1
