Product Details:
|
| Sine Force: | 4000 Kg.f | Max. Velocity: | 2 M/s |
|---|---|---|---|
| Maximum Displacement: | 51 Mm | Armature Mass: | 35 Kg |
| Payload: | 500 Kg | Frequency: | 5-3000Hz |
| Max. Acceleration: | 100g | Amarture Diameter: | 342mm |
| High Light: | 40kN Vibration Test Equipment,Electrodynamic Vibration Test Equipment,40kN Electrodynamic Vibration Shaker |
||
High Frequency Electrodynamic Vibration Test System Comply With MIL-STD DIN ISO ASTM IEC
Applicable Standards: MIL-STD, DIN, ISO, ASTM, IEC, ISTA, GB, GJB, JIS, BS etc.
Applicable Industries: Automotive, Electronics, Aerospace, Vessel, Telecommunication, Photoelectronics, Instrument etc.
Specifications
| Model | EV240 |
| Frequency(Hz) | 5-3000 |
| Max Exiting Force(kg.f) | 4000 |
| Max. Displacement (mmp-p) | 51 |
| Max. Acceleration(g) | 100 |
| Max. Velocity(m/s) | 2 |
| Payload(kg) | 500 |
| Armature Mass(kg) | 35 |
| Armature Diameter(mm) | φ342 |
| Vibration Generator Weight(kg) | 2800 |
| Vibration Generator Dimension L*W*H(MM) | 1235*1000*1230 |
| Power Amplifier | LA40K |
| Cooling Method | Forced Cooling |
| Power Amplifier Weight(kg) | 520 |
| Power Amplifier Dimension L*W*H(MM) | 620*960*2000 |
| Utility Requirements |
3-phase AC380V ±10% 50Hz |
| Aggregate Capacity(KW) | 56 |
Features:
Frequently Asked Questions
1.How do you attach the hardware you're testing to your shaker ?
By means of a fixture, usually aluminium or magnesium for lightness coupled with rigidity. They can be cast, or smaller fixtures machined from soild stock. Most fixtures are welded.
2.How do you control shakers ?
If we're looking for resonances in the product we're testing, we command the shaker to shaker the product at one frequency at a time but to vary that test frequency, to sweep it over a range frequencies. But more realistically, we command the shaker to vibrate randomly and to excite all the resonances simultaneously. Control commands go into the keyboard of a specially programmed computer.
3.What are those resonances ? Are they bad ?
Have you ever noticed the steering wheel moving with rather a large displacement amplitude, large than the input to the column? That magnification is called resonance. Possibly it annoys you. There's a slight chance that in a few years that whipping of the steering column might cause bending fatigue failure. When we shake an automotive or ship or land vehicle instrument, we're looking for, for example, portions of printed wiring boards (PWBs) responding with greater motion than we're inputting. That flexing may damage PWB wiring, it may damage the attached components, and it will damage the soldered connections between components and the PWB.

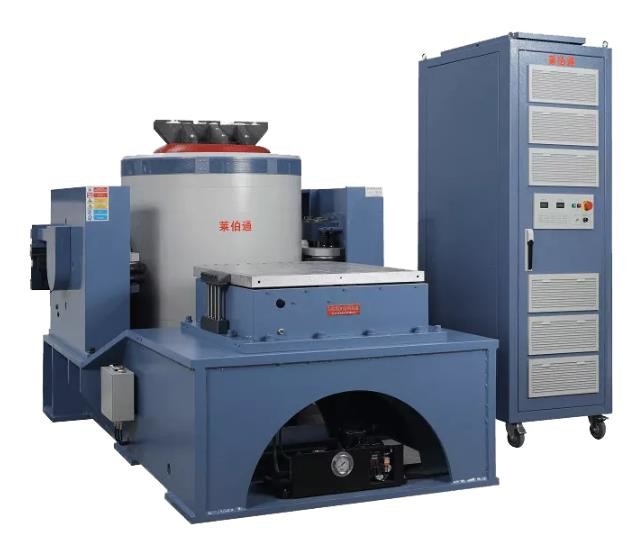

Product images:
