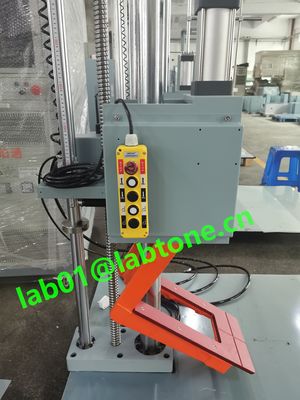

Packaged Products Free Fall Drop Tester Meet ASTM D 5276 ISTA 1A 2A 3A 6A

Packaged Products Free Fall Drop Tester Meet ASTM D 5276 ISTA 1A 2A 3A 6A
Packaged Products Free Fall Drop Tester Meet ASTM D 5276 ISTA 1A 2A 3A 6A
Packaged Products Free Fall Drop Tester Meet ASTM D 5276 ISTA 1A 2A 3A 6A Packaged Products Free Fall Drop Tester Meet ASTM D 5276 ISTA 1A 2A 3A 6A Packaged Products Free Fall Drop Tester Meet ASTM D 5276 ISTA 1A 2A 3A 6A Packaged Products Free Fall Drop Tester Meet ASTM D 5276 ISTA 1A 2A 3A 6A Packaged Products Free Fall Drop Tester Meet ASTM D 5276 ISTA 1A 2A 3A 6A

Large Image :  Packaged Products Free Fall Drop Tester Meet ASTM D 5276 ISTA 1A 2A 3A 6A

Product Details:
Place of Origin: CHINA
Brand Name: LABTONE
Certification: CE ISO
Model Number: DT150
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: international wooden case
Delivery Time: 15-20 days
Payment Terms: T/T
Supply Ability: 50 Sets / Month

Packaged Products Free Fall Drop Tester Meet ASTM D 5276 ISTA 1A 2A 3A 6A

Description
Drop Height: 300-1500mm Package Weight: 85kg
Package Size: 800*800*800mm Drop Mode: Free Fall Drop
Machine Dimension: 1500*1000*2150mm Machine Weight: 480kg
Warranty: 12 Months Power Supply: AC220V 50Hz
High Light:

AC220V Free Fall Drop Tester

,

Hydraulic Cushioning Free Fall Drop Tester

,

50Hz Packaging Drop Test Machine



Packaged-Products Free Fall Drop Tester Meet ASTM D 5276, ISTA 1A, 2A, 3A, 6A

Packaging Drop Tester DT150 technical specificatio...



Drop Tester

Packaging drop test is used to determine the effect of impact on the package during use, transportation, loading and unloading. The strictly designed LABTONE “1G+” ensures its accuracy. Apart from accurate plane fall test, it can also perform edge drop and corner drop test to make a complete evaluation on the performance of packaging and product.





Main Parameters



Drop height range: 300 - 1500mm

Max. Load: 85Kg

Height display: standard scale

Machine type: test pieces supported by single bracket arm; pneumatic free drop

Control means: handle control

Drop mode: free drop

Height adjustment means: motor control and adjustment by precision screw

Dimension of specimen: 800 × 800 × 800 mm

Cushioning mechanism: hydraulic cushioning

Dimension of Machine (mm): 1500 (W) ×1850 (H) ×1000 (D)

Base plate dimensions (mm): 1500 (W) ×26 (H) × 1000 (D)

Power supply: 220V 50Hz

Air pressure requirement: 0.5~0.7Mpa

Equipment weight: about 480kg




Models


Model DT150 DT200
Drop height range (mm) 300---1500 300----2000
Specimen max.weight (kg) 85 85
Specimen max. size (mm) 800*800*800 800*800*800
Drop mode Freedom
Machine Dimension (mm) 1500*1000*2150 1700*1200*2750
Machine weight (kg) 480 550
Power supply AC220V 50Hz compressed air 0.5~0.7Mpa
Standards ISO2244, ASTM D 5276, ISTA 1A 2A 6A




Features

  • Satisfy and even beyond GB, IEC, ASTM, ISTA and other industrial standards.
  • Can perform surfaces, corner and edge drops.
  • Precise guiding system and pneumatical driving
  • Unique swing arm structural design, escape acceleration of swing arm greater than 3G.
  • With double column guide, hydraulic buffer will absorb the dynamic force of the swing arm such that the movement is stable, reliable with low noise.
  • Self-locking screw in lifting mechanism to prevent accidental downward glide.
  • Automatic pneumatic interlocks to prevent abnormal detachment of swing arm.
  • Extensible support bracket and bottom slab.




FAQ


1. Q: What is your warranty ?

  • 12 months product warranty.Free components will be provided if any performance failure occurs within 12 months caused by non-human damage.

2. Q: How-to vedio provided ?

  • Yes, if required, our engineers will record a specialize how-to video for you.

3. Q: Is the machine made in your own plant ?

  • Yes, welcome to visit our plant(factory), also we support OEM and ODM.

4. Q: What about the quality ?

  • Each instruments must be carried out 100% quality examination and test when shipping and delivery goods.
  • All of our machine are strictly according to CE & ISO standards.


Company Profile:

Labtone Test Equipment Co., Ltd. is a +15 year China manufacture of reliable, cost-effective equipments. Our superior products mainly include: Vibration Test Systems, Shock Test Systems, Bump Test Systems, Drop Tester, Packaging Transportation Simulators, and Combined Environmental Test Chambers.
Labtone started business in 2002 in a plant located in Shenzhen and moved to our new, expanded 6,000 square meter facility in Dongguan, Guangdong in 2015. Today, our products are found around the world in electronics, automotive, aerospace, telecommunication, optoelectronics instrument and industrial machinery applications. Our experience and commitment to new product development has resulted in products that are easy to use, accurate and designed for decades of service.
Labtone products carry a one-year(12months) warranty. We provide comprehensive factory services and supports, technical literatures, manuals and guides as well as having qualified staffs and experts to solve your problems.



Packaging

Plywood case with vacuum packing
