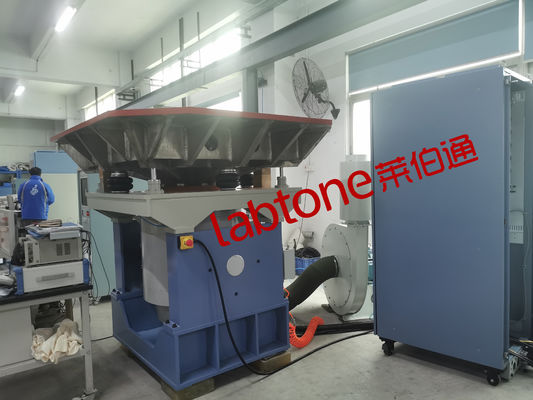

4000kg.f Vibration Shaker System Comply with SAE J575 / J1211 / J1455 / J1810

4000kg.f Vibration Shaker System Comply with SAE J575 / J1211 / J1455 / J1810
4000kg.f Vibration Shaker System Comply with SAE J575 / J1211 / J1455 / J1810

Large Image :  4000kg.f Vibration Shaker System Comply with SAE J575 / J1211 / J1455 / J1810

Product Details:

Place of Origin: Dongguang, China
Brand Name: LABTONE
Certification: SGS CE / ISTA / ISO
Model Number: EV440

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Plywood Case with Vacuum Packing
Delivery Time: 45 Working Days
Payment Terms: T/T, L/C
Supply Ability: 15 Sets / Month
Detailed Product Description
Sine Force Peak: 4000kg.f Random Force: 4000kg.f
Frequency Range: DC-3000 Hz Software: Sine, Random, Shock
Control Computer: Acer Displacement: 100mm P-p
Machine Weight: 2700kg Machine Dimension: 1283L×1000D×1138H Mm
High Light:

SAE J575 Vibration Shaker System

,

4000kg.f Vibration Shaker System

,

Random Electrodynamic Vibration Shaker



Vibration Shaker System Comply with SAE J575, SAE J1211, SAE J1455, SAE J1810





Vibration testing simulates the vibration conditions that a product might experience during its lifetime but under a controlled and repeatable test environment. Vibration tests are conducted in an accredited vibration testing lab to ensure that finished products can perform safely during operation or transit and to avoid unexpected performance issues or early failure during use. Because products spend their lifetime in different environments and these environments exhibit unique vibration profiles, our vibration testing services are tailored to fit each unique environment with specific vibration control profiles.



Vibration Shaker System Specifications: EV440



Shaker Specifications A30T44
Peak Sine (Pk) 4000Kg.f peak (40KN)
Random (RMS) 4000Kg.f r.ms (40KN) @ISO5344
Shock (Pk) 8000Kg.f peak (80KN) @6ms
Usable Frequency DC~3000Hz
Maximum Displacement (p-p) 100mm (4inch) intermittence,76mm (3inch) continuous
Max. velocity 2m/s
Max. acceleration Sine:100g (980 m/s2);Random: 60g (588 m/s2)
Vertical Load Support 500 kg

Body Suspension Natural

Frequency (Thrust Axis)

Less than 2.5 Hz
Armature Diameter Ф440 mm
Armature Weight 36kg

Fundamental Resonance

Frequency (Bare table)

2,500 Hz (nom.) +/- 5%

Load Attachment

Points (Standard)

16 stainless steel M10 Inserts
Stray Flux Density <10gauss
Allowable partial force 500.N.M
Shaker dimensions 1283mmL×1000mmD×1138mmH
Weight of Shaker About 2700Kg
Power Amplifier Specifications LA40k
Rated Output Capacity 40KVA(120Vrms/380Arms)
Signal to Noise Ratio Greater than 65 dB
Amplifier Efficiency Greater than 90%
Amplifier Overall Dimensions 650mmL×920mmD×2100mmH
Weight of Amplifier About 470Kg
Interlock Protection ●Input Over/Under Voltage ●Logic Fault ●Output Over Voltage/Current ●Control Power ●External ●Shaker Oil Pressure ●Module O/T ●Shaker Temp ●Shaker Travel





The model selection of the vibration test system has the following steps:


1. Determine the test frequency range and limit peak motion (acceleration, velocity and displacement) according to the test conditions.


2. Determine the mass (DUT) of the item under test and the dimensions of the mounting surface required to bolt the DUT to a shaker table with its center of gravity (CG) over the table’s center. This may require use of a head expander and/or other mounting fixture. Determine the mass of such additional hardware including all mounting fasteners.



Look at the shaker specifications for the test system. Verify that the mass of the part under test and any mounting fixture is less than the maximum static load rating of the shaker. Verify that the component under test (or its mounting hardware) can be bolted to the shaker armature or head expander. Add the effective armature mass and expansion head mass to the mass of the object under test as well as the mass of any mounting clamps and fasteners and the mass of any accelerometers mounted on the object under test -- this is the total moving mass the shaker must move during the test. Multiply the total moving mass by the acceleration determined in step 1 to calculate the force required. Verify that the test and DUT required to determine the test frequency range, force, peak acceleration, peak velocity, and peak displacement is less than the corresponding performance rating of the selected shaker system. If this is true, the shaker chosen is acceptable. If not, a more powerful shaker is required.







Working Principle:



4000kg.f Vibration Shaker System Comply with SAE J575 / J1211 / J1455 / J1810 0





Application:



4000kg.f Vibration Shaker System Comply with SAE J575 / J1211 / J1455 / J1810 1







Services:

  • Uptime is paramount: We strive to ensure rapid, high-quality service and support
  • Dialogue: We are committed to responding promptly to all customer requests and questions and to keeping customers informed regarding service and support status so they can plan efficiently
  • Skilled team of technicians and engineers: Our staff continuously receives the latest training in order to deliver the best possible service and support

Contact Details
Labtone Test Equipment Co., Ltd

Contact Person: Ms. Jessica Wang

Tel: +8618819097469

Send your inquiry directly to us (0 / 3000)
