Product Details:
|
| Payload: | 2000kg | Displacement: | Fixed 1 Inch (25.4 Mm) |
|---|---|---|---|
| Frequency: | 2~5Hz(120~300)RPM | Meet Standards: | ISTA 1A 2A |
| Vibration Pattern: | Rotary | Power Supply: | AC 380V±10% 50Hz |
| Usage: | Vibration Test Machine, Mechanical Vibration Table | Warranty: | 1 Year |
| High Light: | Fixed Displacement Vibration Test Table,ASTM D 999 Vibration Test Table,fixed displacement vibration shaker table |
||

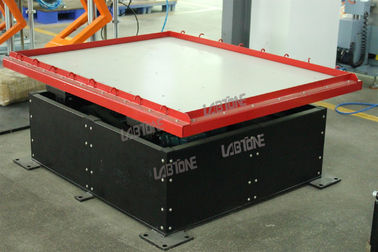

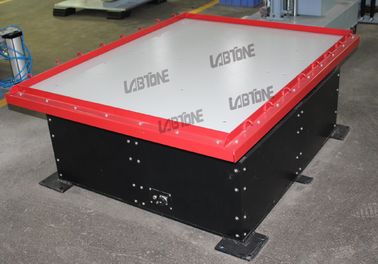

Fixed Displacement Vibration Test Table Transport Simulator Meet ASTM D 999
Transportation Simulator is used in laboratory to simulate the truck transportation situation on different road conditions. The purpose is to inspect and estimate the performance of packaging in such conditions.
Mainly used in repeating impact, unloading or jump test that comply to ISTA, ASTM, TAPPI, ISO MIL-STD, FED-STD, UN, DOT and other industrial and government standards. Frequency range is 2-5Hz with fixed displacement of 1 inch (25.4 mm) and maximum acceleration of 1.25 G.
YST series vibration tester adopts eccentric cam principle to achieve rotation (synchronous) vibration mode.
Specifications of Vibration Test Table
| Parameter | YST2000 |
| Maximum Payload | 2000 kg |
| Frequency Range | 2-5 Hz (120～300 CPM) |
| Displacement | 25.4 mm(1 inch) |
| Motion Type | Rotary(synchronous) |
| Vibration Table Size | 1500 × 1500 mm |
| Power Supply | 3-phase 380V / 50Hz / 11KW |
| Weight | 1500 Kg (about) |
| Ambient Conditions | 5～40℃；≤85%RH |
| Test Standard complied | ISTA 1A / 2A / 6A, MIL-STD-810G, etc. |
Other models
| Model | YST100 | YST200 | YST500 | YST1000 | YST2000 |
|
|
100 | 200 | 500 | 1000 | 2000 |
|
Table Size(mm) |
1000x1200 | 1200x1200 | 1200x1500 | 1500x1500 | 1500x1500 |
| Frequency Range | 2~5Hz(120~300)RPM | ||||
| Displacement | 25.4mm Fixed | ||||
| Test Motions | Rotary (Synchronous) | ||||
| Power Supply | AC220V±10% 50Hz | 3-phase 380V±10% 50Hz | |||
Features of Vibration Test Table
Vibration Test Table Meet Test Standard
Customer Services:
Presales
In-Sales
After-Sales
Company Profile
Labtone Test Equipment Co., Ltd. is a +16 year China manufacture of reliable, cost-effective equipments. Our superior products mainly include: Vibration Test Systems, Shock Test Systems, Bump Test Systems, Drop Tester, Packaging Transportation Simulators, and Combined Environmental Test Chambers.
Labtone started business in 2002 in a plant located in Shenzhen and moved to our new, expanded 6,000 square meter facility in Dongguan, Guangdong in 2015. Today, our products are found around the world in electronics, automotive, aerospace, telecommunication, optoelectronics instrument and industrial machinery applications. Our experience and commitment to new product development has resulted in products that are easy to use, accurate and designed for decades of service.
Labtone products carry a one-year(12months) warranty. We provide comprehensive factory services and supports, technical literatures, manuals and guides as well as having qualified staffs and experts to solve your problems.
We sincerely invite you to visit our factory.

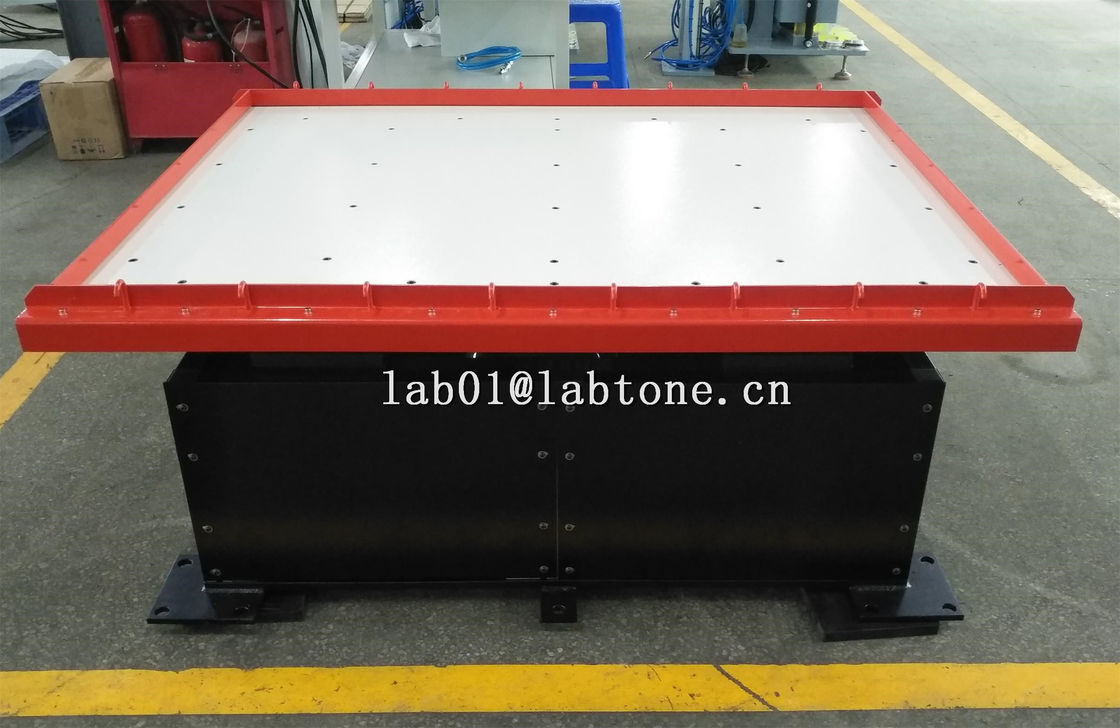

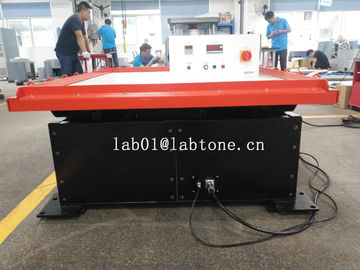

Detailed Pictures:
