ASTM999 Package Vibration Shaker Table With Payload 200kg

ASTM999 Package Vibration Shaker Table With Payload 200kg
ASTM999 Package Vibration Shaker Table With Payload 200kg
ASTM999 Package Vibration Shaker Table With Payload 200kg ASTM999 Package Vibration Shaker Table With Payload 200kg ASTM999 Package Vibration Shaker Table With Payload 200kg ASTM999 Package Vibration Shaker Table With Payload 200kg

Large Image :  ASTM999 Package Vibration Shaker Table With Payload 200kg

Product Details:
Place of Origin: CHINA
Brand Name: LABTONE
Certification: CE, ISO
Model Number: YST200
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: International Plywood Case
Delivery Time: 30-35 Work Days
Payment Terms: T/T, L/C
Supply Ability: 15 Sets / Month
Contact Now

ASTM999 Package Vibration Shaker Table With Payload 200kg

Description
Payload: 200 Kg (440lbs) Table Size: 1200 X 1200 Mm
Frequency: 2~5Hz(120~300)RPM Amplitude: 1 Inch (25.4MM) Fixed
Meet Standard: ISTA 1A 2A Machine Weight: 450 Kg
High Light:

ISO 2247 Vibration Shaker Table

,

Payload 200kg Vibration Shaker Table

,

ASTM D999 Vibration Test Machine



ASTM999 Package Vibration Shaker Table With Payload 200kg​



Descriptions

Mainly used in repeating impact, unloading or jump test that comply to ISTA , ASTM, TAPPI, ISO MIL-STD, FED-STD, UN, DOT and other industrial and government standards. Frequency range is 2-5Hz with fixed displacement of 1 inch (25.4 mm)and maximum acceleration of 1.25 G.



YST series vibration shakers apply eccentric cam principle to achieve rotation (marquee), vertical and non-synchronized (30°unbalance vibration) vibration modes





Specifications



Model YST100 YST200 YST500 YST1000 YST2000

Max Payload(kg)

 100 200 500 1000 2000

Table Size(mm)

 1000x1200 1200x1200 1200x1500 1500x1500 1500x1500
Frequency Range 2~5Hz(120~300)RPM
Displacement 25.4mm Fixed
Test Motions Rotary (Synchronous)
Power Supply AC220V±10% 50Hz 3-phase 380V±10% 50Hz





Features

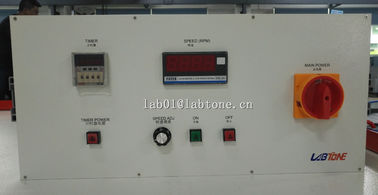

  • Precise digital display for the vibration frequency.
  • Synchronous low noise wide belt drive mechanism.
  • Guide Rail type fixture for specimen, easy to operate.
  • Heavy channel iron base equipped with damper rubber makes the machine easy to install, having large loading capacity, ensuring stable running.
  • Rotational Vibration method complies with international test standard.
  • Suitable for toys, electronics, furniture, gifts, porcelain, packaging industries for packaging transportation simulation test.





Meet Test Standard

  • ISTA 1A 1B 1C 1D 1E 2A 2B
  • ASTM D999
  • ISO 2247
  • Mil Std 810G
  • TAPPI, JIS, UN, Fed Std 101





Customer Services:



Presales

  • Technical consultation: test method, laboratory planning and suggestion.
  • Equipment selection: selection scheme, FAQ.
  • Product testing scheme.

In-Sales

  • Customer communication and progress report.
  • Guidance for pre-installation preparation, equipment commissioning and test run.
  • Calibration (when Third Party’s verification is required).

After-Sales

  • Technical training: operation of equipment, daily maintenance, common fault diagnosis and troubleshooting.
  • Scheduled on-site service: Detection of problem as soon as possible in order to eliminate equipment and anthropogenic hazards. This is to ensure long term and stable equipment operation as well as delivery of latest technical information.
  • Technical support: special paid services are provided according to customer’s needs.





Detailed Pictures:

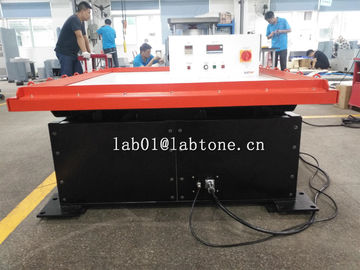

ASTM999 Package Vibration Shaker Table With Payload 200kg 0
