Auto Parts Vibration Test Machine , Battery Vibration Testing Equipment 1 - 300Hz

China Auto Parts Vibration Test Machine , Battery Vibration Testing Equipment 1 - 300Hz supplier
Auto Parts Vibration Test Machine , Battery Vibration Testing Equipment 1 - 300Hz supplier Auto Parts Vibration Test Machine , Battery Vibration Testing Equipment 1 - 300Hz supplier Auto Parts Vibration Test Machine , Battery Vibration Testing Equipment 1 - 300Hz supplier

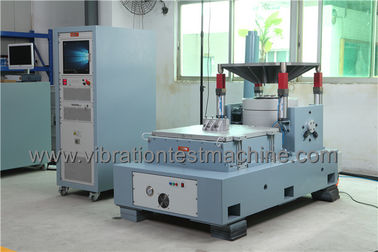

Large Image :  Auto Parts Vibration Test Machine , Battery Vibration Testing Equipment 1 - 300Hz

Product Details:

Place of Origin: Dongguang, China
Brand Name: LABTONE
Certification: CE / ISO
Model Number: EV220

Payment & Shipping Terms:

Minimum Order Quantity: 1 SET
Price: Negotiable
Packaging Details: Plywood Case with Vacuum Packing
Delivery Time: 45 Working Days
Payment Terms: T/T, L/C
Supply Ability: 15 Sets / Month
Contact Now
Detailed Product Description
Rated Sine Force: 2000 Kg (20kN) Random Force: 2000 Kg (20kN)
Shock Force: 4000 Kg (40kN) Payload: 300 Kg
Max Velocity: 200 Cm/s Power Supply: 3 Phase AC 380V 50Hz



Auto Parts Vibration Test Machine, Battery Vibration Testing Equipment





Description



The working principle of the electrodynamic vibration shaker is similar to a loudspeaker whereby electrical conductor is moved by the action of electromagnetic force in the magnetic field. The force to accelerate the moving part is generated by the balance between driving current and magnetic flux. Therefore, by controlling the driving current, one can control the vibration generator.





Specifications: EV203-EV220


Model EV203 EV206 EV210 EV220
Vibration Generator VG300/40 VG300/50 VG1000/50 VG2000/50
Frequency(Hz) 1-2500 1-3000 1-3000 1-2500
Max Exiting Force(kg.f) 300 600 1000 2000
Max. Displacement (mmp-p) 38 50.8 50.8 50.8
Max. Acceleration(g) 100 100 100 100
Max. Velocity(cm/s) 120 200 200 200
Payload(kg) 120 200 300 400
Armature Mass(kg) 3 6 10 20
Armature Diameter(mm) φ150 φ200 φ240 φ320
Cooling Method Forced Air Cooling
Vibration Generator Weight(kg) 460 920 1100 1600
Vibration Generator Dimension L*W*H(MM) 750*555*670 800*600*710 845*685*840 1200*870*1100
Power Amplifier Amp3k Amp6k Amp12k Amp22k
Cooling Method Forced Air Cooling
Power Amplifier Weight(kg) 250 320 350 500
Power Amplifier Dimension L*W*H(MM) 800*550*1250 800*550*1250 800*550*1520 800*550*1520
Utility
Requirements
3-phase AC380V ±10% 50Hz
Aggregate Capacity(KW) 9 20 25 35




Applicable Standards:


MIL-STD, DIN, ISO, ASTM, IEC, ISTA, GB, GJB, JIS, BS etc.



Applicable Industries:


Automotive, Electronics, Aviation, Large Ships, Military Industry, Rail Transit, Potoelectronics, Measuring Instrument etc.



Features:

  • Dual magnetic structure;
  • Frameless armatures;
  • Pneumatic load support;
  • Rugged trunnion design with air isolation;
  • Active armature suspension system;
  • Small waveform distortion, high carrying capacity, good guidance quality;
  • Protection functions for safety interlock;
  • Good compatibity with slip table head expander, climatic test chamber, air isolation mounts, etc.


Working Principle:

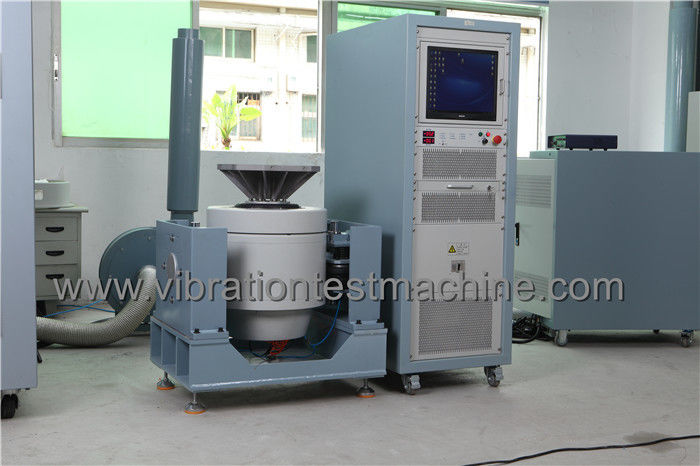

Auto Parts Vibration Test Machine , Battery Vibration Testing Equipment 1 - 300Hz




Digital Vibration Controller



VCS series vibration controller has the full range of vibration test function, which can achieve vibration tests, such as random, sinusoidal sweep, resonance search and dwell, classical shock, sinusoidal-random, random-random, narrowband random-sinusoidal, shock response spectrum control, transient simulation, and road spectrum simulation on electro-dynamic or hydraulic vibration table. Control software is performed in Windows 7/8/10 with friendly interface and convenient operation. At the same time, the system also provides perfect testing process management, data instructions and test report generation, making the test more convenient and reliable.



Vibration control system adopts modular design and distributed data processing program to carry out the expansion of the channel and test function easily. Composed of 32-bit high speed DSP processing structure, low noise circuit design technology, 24 bit A/D and D/A hardware, high-speed USB2.0 data communication circuit. The control software of the adaptive control algorithm is powerful, and promotes the technical performance of vibrational control system to a new level.




 Packaging:


Simulation Animatronic Customer Triceratops are covered with air bubble film before put them into the wooden case,which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless,moisture corrosion, good transparency etc

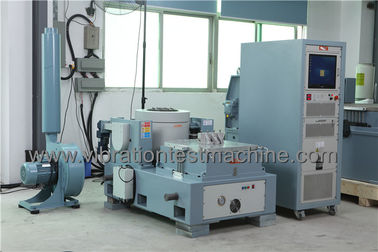

Auto Parts Vibration Test Machine , Battery Vibration Testing Equipment 1 - 300Hz
Workshop:


Auto Parts Vibration Test Machine , Battery Vibration Testing Equipment 1 - 300Hz
