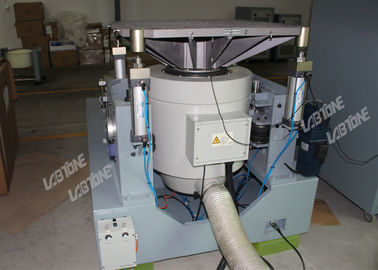

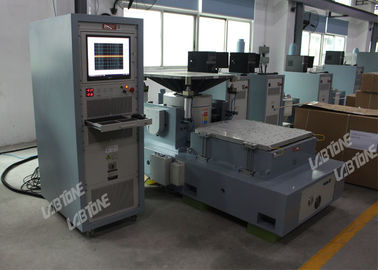

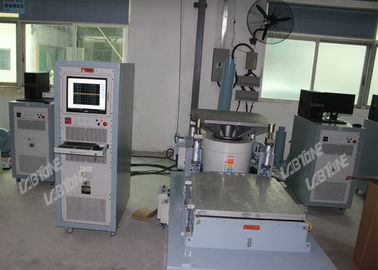

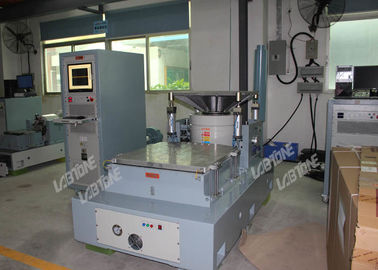

1 - 3000Hz Dynamic Vibration Bench Shaker For Accumulators Vibration Test Meet EN 50342-1 Standard

1 - 3000Hz Dynamic Vibration Bench Shaker For Accumulators Vibration Test Meet EN 50342-1 Standard
1 - 3000Hz Dynamic Vibration Bench Shaker For Accumulators Vibration Test Meet EN 50342-1 Standard 1 - 3000Hz Dynamic Vibration Bench Shaker For Accumulators Vibration Test Meet EN 50342-1 Standard 1 - 3000Hz Dynamic Vibration Bench Shaker For Accumulators Vibration Test Meet EN 50342-1 Standard 1 - 3000Hz Dynamic Vibration Bench Shaker For Accumulators Vibration Test Meet EN 50342-1 Standard

Large Image :  1 - 3000Hz Dynamic Vibration Bench Shaker For Accumulators Vibration Test Meet EN 50342-1 Standard

Product Details:
Place of Origin: Dongguang, China
Brand Name: LABTONE
Certification: CE / ISO
Model Number: EV210
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: International standard wooden case
Delivery Time: 45 Working Days
Payment Terms: T/T, L/C
Supply Ability: 15 Sets / Month

1 - 3000Hz Dynamic Vibration Bench Shaker For Accumulators Vibration Test Meet EN 50342-1 Standard

Description
Product Name: Dynamic Vibration Bench Max. Velocity: 200 Cm/s
Maximum Displacement: 50.8mmp-p Frequency Range: 1-3000 Hz
Payload: 300 Kg Power Amplifier: 3-phase AC 380V 50Hz
Rated Force: 1000kgf (32KN) Cooling Method: Forced Cooling
High Light:

electrodynamic vibration shaker system

,

vibration testing equipment



1-3000Hz Dynamic Vibration Bench Shaker For Accumulators Vibration Test Meet EN 50342-1 Standard





Standards: MIL-STD, DIN, ISO, ASTM, IEC, ISTA, GB, GJB, JIS, BS etc.




Application: Automotive, Electronics, Aerospace, Vessel, Telecommunication, Photoelectronics, Instrument etc.





Specifications



Model EV203 EV206 EV210 EV220 EV232
Vibration Generator VG300/40 VG300/50 VG1000/50 VG2000/50 VG3200/50
Frequency(Hz) 1-2500 1-3000 1-3000 1-3000 1-3000
Max Exiting Force(kg.f) 300 600 1000 2000 3200
Max. Displacement (mmp-p) 40 50.8 50.8 50.8 50.8
Max. Acceleration(g) 100 100 100 100 100
Max. Velocity(cm/s) 120 200 200 200 200
Payload(kg) 120 200 300 400 500
Armature Mass(kg) 3 6 10 20 32
Armature Diameter(mm) φ150 φ200 φ240 φ320 φ400
Cooling Method Forced Air Cooling
Vibration Generator Weight(kg) 460 920 1100 1600 2500
Vibration Generator Dimension L*W*H(MM) 750*555*670 800*600*710 845*685*840 1200*870*1100 1270*980*1140
Power Amplifier Amp3k Amp6k Amp12k Amp22k Amp35k
Cooling Method Forced Air Cooling
Power Amplifier Weight(kg) 250 320 350 500 550
Power Amplifier Dimension L*W*H(MM) 800*550*1250 800*550*1250 800*550*1520 800*550*1520 910*620*1550
Utility
Requirements
3-phase AC380V ±10% 50Hz
Aggregate Capacity(KW) 9 20 25 35 56





Main Features



  • Rugged suspension system and linear motion guiding, strong carrying capacity, good guiding functions, high stability
  • Load center airbag has high static stiffness and low dynamic stiffness, strong carrying capacity, perfect performance on amplitude variation
  • High efficiency D class power switching, 3-sigma peak current, provide finest power consumption and minimize harmonic distortion
  • Quick self-diagnosis with safety interlock, high safety reliability
  • Airbag shock isolation device for vibration platform without the need of additional foundation, perfect reproduction of vibrational wave and reduce vibration transmittance
  • Provide horizontal and vertical expansion platform for different application
  • Simple controller operation





Service



Pre-Sales Service



1)Technical consultation: test method, laboratory planning and suggestion.

2)Equipment selection: selection scheme, FAQ.

3)Product testing scheme.

4)Customer communication and progress report.



After-Sales Service



1)Technical training: operation of equipment, daily maintenance, common fault diagnosis and troubleshooting.

2)Scheduled on-site service: Detection of problem as soon as possible in order to eliminate equipment and anthropogenic hazards. This is to ensure long term and stable equipment operation as well as delivery of latest technical information.

3)Technical support: special paid services are provided according to customer’s needs.





Details



1 - 3000Hz Dynamic Vibration Bench Shaker For Accumulators Vibration Test Meet EN 50342-1 Standard 0

1 - 3000Hz Dynamic Vibration Bench Shaker For Accumulators Vibration Test Meet EN 50342-1 Standard 1
