Product Details:
|
| Table Size: | 1000 X 1000 Mm | Payload: | 1000 Kg |
|---|---|---|---|
| Acceleration Range: | 5-100 G | Pulse Duration: | 6-18 Ms |
| Frequency: | 1-120 Hz | Power Supply: | AC 220V 50Hz |
| Machine Weight: | 3600 Kg | ||
| High Light: | bump test equipment,bump test vibration |
||

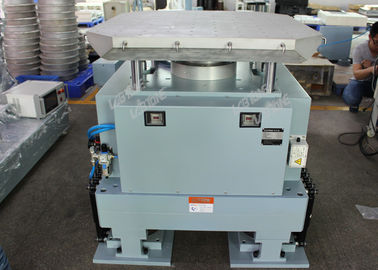

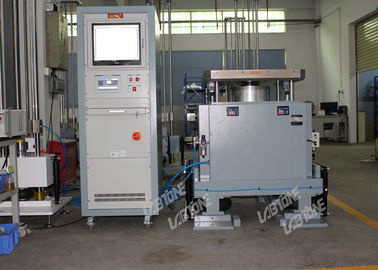

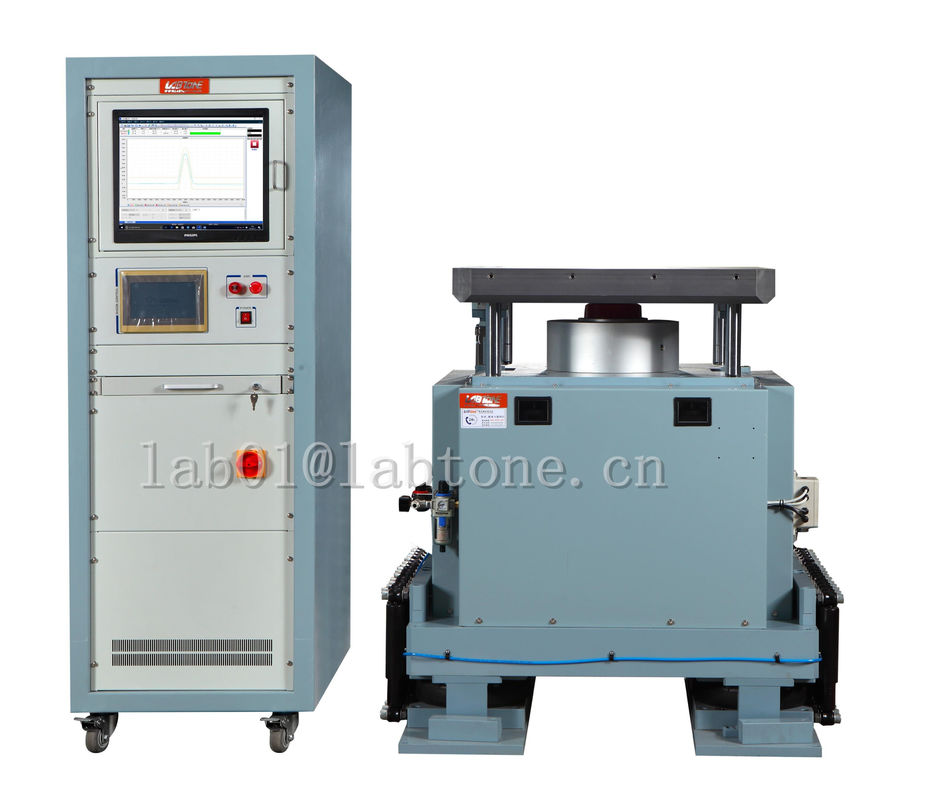

Electric BumpTest Equipment Repeat Shock Test Half-Sine Waveform 20G 20ms
Components and other electronic and electical products may experience repeating impact during transportation or use. Bump test can be used as a method to ensure the design structure is satisfying or as a quality assurance method. Specimen will experience regular peak acceleration and continuous impact with standard pulse during the bump test.
Speicifications
| Model | SKM500 | SKM700 | SKM800 | SKM1000 |
| Table size(mm) | 500*700 | 700*800 | 800*800 | 1000*1000 |
| Payload(kg) | 50 | 100 | 200 | 500 |
| Wave form | Half sine pulse | |||
| Acceleration range(G) | 5-120 | 5-100 | 5-100 | 5-80 |
| Pluse duration(ms) | 6--18 | |||
| Bump repetition frequency | 1-120 | 1-120 | 1-120 | 1-80 |
| Drop height range | 5-120mm | 5-120mm | 5-120mm | 5-180mm |
| Max velocity variation | 2.2m/s | 2.2m/s | 2.6m/s | 2.8m/s |
| Machine dimension(mm) | 750*660*880 | 900*900*800 | 900*960*800 | 1200*1150*860 |
| Machine weight(kg) | 1000 | 1260 | 2160 | 3660 |
| Power & Air supply | AC220V ±10% 50Hz Air supply:8kg 23m3 gasholder | |||
| Standards | GB/T2423.4,GB/T2423.6, IEC68-2-29, JJG497-2000, JISC0042-1995 etc | |||
Packaging & Shipping
Simulation Animatronic Customer Triceratops are covered with air bubble film before put them into the wooden case,which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless,moisture corrosion, good transparency etc
