20mm Steel Base Max Load 85kg Lab Drop Tester Meet ISTA 1A 2A Standards

China 20mm Steel Base Max Load 85kg Lab Drop Tester Meet ISTA 1A 2A Standards supplier
20mm Steel Base Max Load 85kg Lab Drop Tester Meet ISTA 1A 2A Standards supplier 20mm Steel Base Max Load 85kg Lab Drop Tester Meet ISTA 1A 2A Standards supplier 20mm Steel Base Max Load 85kg Lab Drop Tester Meet ISTA 1A 2A Standards supplier

Large Image :  20mm Steel Base Max Load 85kg Lab Drop Tester Meet ISTA 1A 2A Standards

Product Details:

Place of Origin: CHINA
Brand Name: LABTONE
Certification: CE ISO
Model Number: DT150

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: international wooden case
Delivery Time: 15-20 days
Payment Terms: T/T
Supply Ability: 50 Sets / Month
Contact Now
Detailed Product Description
Drop Height: 300-1500mm Package Weight: 85kg
Package Size: 800*800*800mm Drop Mode: Free Fall Drop
Machine Dimension: 1500*1000*2150mm Machine Weight: 480kg
Warranty: 12 Months Power Supply: AC220V 50Hz

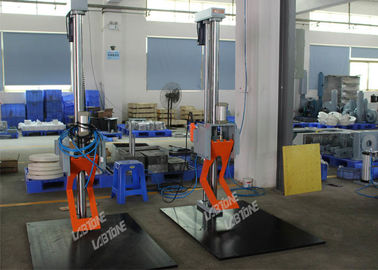

Lab Drop Tester with 20mm Steel Base Max load 85kg Meet ISTA 1A 2A Standards





Drop Tester


DT series package drop testers are mainly used for assessing the degree of influence of drop impact on the packages in the process of actual transport and handling, and assessing impact strength of packages in the process of handling and rationality of package design.

  • 180 lbs (85 kg) payload capacity
  • 11.8″ to 59″ (300 mm to 1500 mm) drop height
  • 31″ (800 mm) deep, package size
  • Precision servo ballscrew drive system
  • Adjustable limit switches
  • Adjustable air control valve
  • Dual unit flow gauge
  • Exclusive hand-held operator control
  • Versatile corner and edge holding device
  • Meets ASTM, TAPPI, ISO, JIS and ISTA standards




Specifications


Model DT150
Drop height range 300 - 1500 mm
Max. Payload 85 Kg
Dimension of specimen 800 × 800 × 800 mm
Height display Standard scale
Machine type Test pieces supported by single bracket arm; pneumatic free drop
Control means Handle control
Drop mode Free drop
Height adjustment means Motor control and adjustment by precision screw
Cushioning mechanism Hydraulic cushioning
Dimension of Machine 1500 (W) ×2150 (H) ×1000 (D) mm
Base plate dimensions 1500 (W) × 20 (H) × 1000 (D) mm
Equipment weight 480 kg
Power supply AC 220V 50Hz (can be adjusted according to customer’s needs)
Air pressure requirement 0.5~0.7 Mpa


Features

  • Satisfy and even beyond GB, IEC, ASTM, ISTA and other industrial standards.
  • Can perform surfaces, corner and edge drops.
  • Precise guiding system and pneumatical driving
  • Unique swing arm structural design, escape acceleration of swing arm greater than 3G.
  • With double column guide, hydraulic buffer will absorb the dynamic force of the swing arm such that the movement is stable, reliable with low noise.
  • Self-locking screw in lifting mechanism to prevent accidental downward glide.
  • Automatic pneumatic interlocks to prevent abnormal detachment of swing arm.
  • Extensible support bracket and bottom slab.



FAQ




1. Q: What is your warranty ?

  • 12 months product warranty.Free components will be provided if any performance failure occurs within 12 months caused by non-human damage.

2. Q: How-to vedio provided ?

  • Yes, if required, our engineers will record a specialize how-to video for you.

3. Q: Is the machine made in your own plant ?

  • Yes, welcome to visit our plant(factory), also we support OEM and ODM.

4. Q: What about the quality ?

  • Each instruments must be carried out 100% quality examination and test when shipping and delivery goods.
  • All of our machine are strictly according to CE & ISO standards.


Company Profile:

Labtone Test Equipment Co., Ltd. is a +15 year China manufacture of reliable, cost-effective equipments. Our superior products mainly include: Vibration Test Systems, Shock Test Systems, Bump Test Systems, Drop Tester, Packaging Transportation Simulators, and Combined Environmental Test Chambers.
Labtone started business in 2002 in a plant located in Shenzhen and moved to our new, expanded 6,000 square meter facility in Dongguan, Guangdong in 2015. Today, our products are found around the world in electronics, automotive, aerospace, telecommunication, optoelectronics instrument and industrial machinery applications. Our experience and commitment to new product development has resulted in products that are easy to use, accurate and designed for decades of service.
Labtone products carry a one-year(12months) warranty. We provide comprehensive factory services and supports, technical literatures, manuals and guides as well as having qualified staffs and experts to solve your problems.



Packaging

Plywood case with vacuum packing
