500kg Mechanical Shaker Table for Fixed Displacement Rotary Vibration Test

Large Image : 500kg Mechanical Shaker Table for Fixed Displacement Rotary Vibration Test

Product Details:

Place of Origin:	CHINA
Brand Name:	LABTONE
Certification:	CE, ISO
Model Number:	YST500

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Negotiable
Packaging Details:	International Plywood Case
Delivery Time:	30 Days
Payment Terms:	T/T, L/C
Supply Ability:	15 Sets / Month

Contact Now

500kg Mechanical Shaker Table for Fixed Displacement Rotary Vibration Test

Description

Payload:	500 Kg	Table Size:	1200 X 1500
Adjustable Frequency:	2~5Hz(120~300)RPM	Fixed Amplitude:	1 Inch (25.4MM)
Vibration Pattern:	Rotation, 30° Unbalance Vibration(asynchronous)	Power Supply:	AC 380V±10% 50/60Hz
Name:	500kg Mechanical Shaker Table For Fixed Displacement Rotary Vibration Test
Highlight:	vibration shaker table systems , mechanical vibration testing

500kg Mechanical Shaker Table for Fixed Displacement Rotary Vibration Test

Transportation Simulators

Packaged-products must withstand vibration and impact dynamic energy while being transported. Mechanical shakers are a low-cost testing equipment option for challenging the integrity of your packaging designs. LABTONE Mechanical Shakers comply with repetitive shock requirements as referenced in industry-standard testing specifications including ASTM, ISTA, ISO, and MIL-STD.

Transportation Simulators Capabilities

Table Size(mm): 1200 x1500
Frequency range: 2-5Hz(120~300)RPM
Fixed Displacement: 1inch (25.4mm)
Test Motions: Rotary (Synchronous)
Maximum payload: 500 kg

Transportation Simulators Features

Precise digital display for the vibration frequency
Synchronous low noise wide belt drive mechanism
Guide Rail type fixture for specimen, easy to operate
Heavy channel iron base equipped with damper rubber makes the machine easy to install, having large loading capacity, ensuring stable running.
Rotational Vibration method complies with the international test standard
Suitable for toys, electronics, furniture, gifts, porcelain, packaging industries for packaging transportation simulation test.

Transportation Simulators Specifications

Model	YST100	YST200	YST500	YST1000	YST2000
Max Payload(kg)	100	200	500	1000	2000
Table Size(mm)	1000x1200	1200x1200	1200x1500	1500x1500	1500x1500
Frequency Range	2~5Hz(120~300)RPM
Displacement	25.4mm Fixed
Test Motions	Rotary (Synchronous)
Power Supply	AC220V±10% 50Hz		3-phase 380V±10% 50Hz

Company profile:

Labtone Test Equipment Co., Ltd. is a +15 year China manufacture of reliable, cost-effective equipment. Our superior products mainly include Vibration Test Systems, Shock Test Systems, Bump Test Systems, Drop Tester, Packaging Transportation Simulators, and Combined Environmental Test Chambers.

Labtone started business in 2002 in a plant located in Shenzhen and moved to our new, expanded 6,000 square meter facility in Dongguan, Guangdong in 2015. Today, our products are found around the world in electronics, automotive, aerospace, telecommunication, optoelectronics instrument and industrial machinery applications. Our experience and commitment to new product development have resulted in products that are easy to use, accurate and designed for decades of service.

Labtone products carry a one-year(12months) warranty. We provide comprehensive factory services and supports, technical literature, manuals and guides as well as having qualified staff and experts to solve your problems.

We sincerely invite you to visit our factory.

Transportation Simulators Services:

Presales

Technical consultation: test method, laboratory planning and suggestion.
Equipment selection: selection scheme, FAQ.
Product testing scheme.

In-Sales

Customer communication and progress report.
Guidance for pre-installation preparation, equipment commissioning and test run.
Calibration (when Third Party’s verification is required).

After-Sales

Technical training: operation of equipment, daily maintenance, common fault diagnosis and troubleshooting.

Scheduled on-site service: Detection of problem as soon as possible in order to eliminate equipment and anthropogenic hazards. This is to ensure long term and stable equipment operation as well as delivery of latest technical information.

Technical support: special paid services are provided according to the customer’s needs.

Detailed Picture

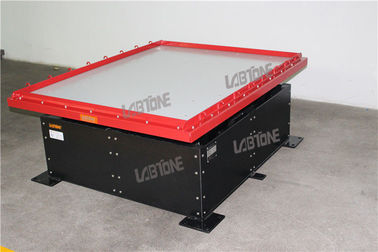

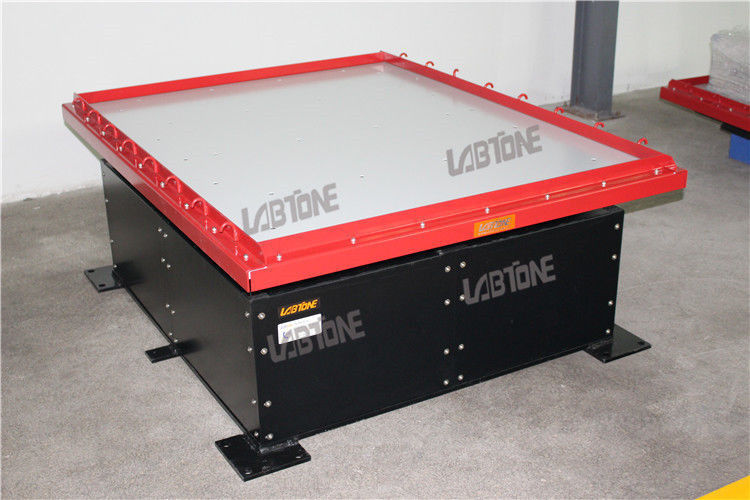

500kg Mechanical Shaker Table for Fixed Displacement Rotary Vibration Test 0

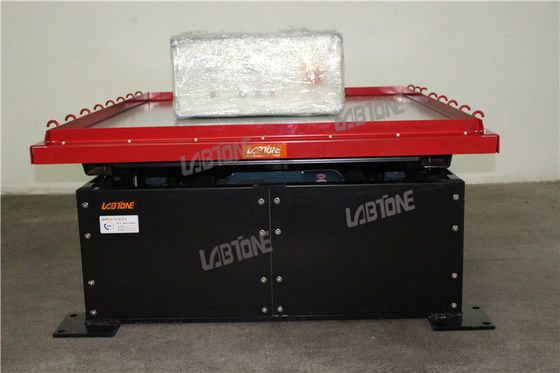

500kg Mechanical Shaker Table for Fixed Displacement Rotary Vibration Test 1
