Product Details:
|
| Name: | UN/DOT 38.3 Electrodynamic Shaker For Random Vibration Test And Shock Test | Sine Force: | 400kg.f(3kN) |
|---|---|---|---|
| Shock Froce: | 800kg.f(6kN) | Displacement: | 40mm |
| Armature Mass: | 3kg | Cooling Method: | Air-Cooling |
| Highlight: | electrodynamic vibration shaker system,vibration testing equipment |
||
Vibration Test System Configuration
| Item | Configuration | Qty. |
| 1) | Vibration shaker | |
| A04S15 shaker ((including Pneumatic Centering Controller) | 1 set | |
| B112D blower (including silencer and Duct ) | 1 set | |
| Horizontal Slip Table HG50M | 1 set | |
| 2) | Power Amplifier | |
| LA4K power amplifier(including Field power supply) | 1 set | |
| 3) |
Vibration Controller-Vcs-4 (Including Hardware and Control Functions Program software CDS |
|
| Accelerometer (Including Length 10m low noise BNC-M5 cable) | 1 set | |
| Computer(Including keyboard, mouse and monitor) | 1 set | |
| 4) |
Documentation Operation Manual, Test Report, Packing List |
1 set |
| 5) | Accessories | |
| Maintenance Tools | 1 set | |
| Standard Spare Parts | 1 set |
Vibration Test SystemSpecification:
| Shaker Specifications | |
| Peak Sine (Pk) | 400Kg.f peak (4KN) |
| Random (RMS) | 400Kg.f r.ms (4KN) @ISO5344 |
| Shock (Pk) | 800Kg.f peak (8KN) @6ms |
| Usable Frequency | 5～4000Hz |
| Maximum Displacement (p-p) | 40mm |
| Max. velocity | 2.0m/s |
| Max. acceleration | 100g |
| Vertical Load Support | 120 kg |
|
Body Suspension Natural Frequency (Thrust Axis) |
Less than 2.5 Hz |
| Armature Diameter | Ф120 mm |
| Armature Weight | 4kg |
|
Fundamental Resonance Frequency (Bare table) |
2,800 Hz (nom.) +/- 5% |
| Load Attachment Points (Standard) | 12 Stainless Steel Inserts of M8 |
| Allowable partial force | 190.N.M |
| Stray Flux Density | < 1 mT (10 gauss) |
| Overall Dimensions | 780x570x660mm |
| Weight | About 460Kg |
| Power Amplifier Specifications LA4K | |
| Rated Output Capacity | 4KVA |
| Signal to Noise Ratio | Greater than 65 dB |
| Amplifier Efficiency | Greater than 90% |
| Amplifier Overall Dimensions | 620mmx960mmx 800mm |
| Weight of Amplifier | 320Kg |
Vibration Test System Main Features
1) Rugged suspension system and linear motion guiding, strong carrying capacity, good guiding functions, high stability.
2) Load center airbag with high static stiffness and low dynamic stiffness, strong carrying capacity, perfect performance on amplitude variation.
3) High efficiency D class power switching, 3-sigma peak current, low power consumption and minimum harmonic distortion.
4) Quick self-diagnosis with safety interlock, high safety reliability
5) Airbag shock isolation device for vibration platform without the need of additional foundation, perfect reproduction of vibrational wave and reduction in vibration transmittance
6) Horizontal and vertical expansion platforms for different applications
7) Simple controller operation
Presales:
In-Sales:

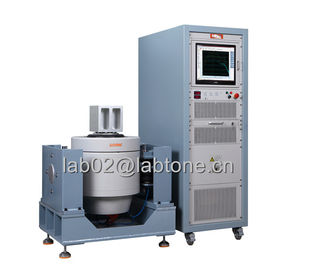

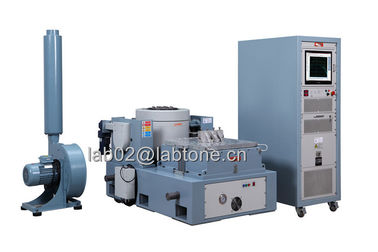

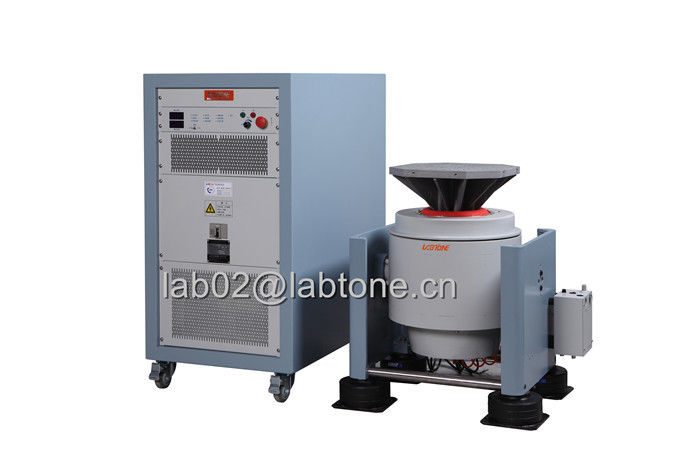

Vibration Test System Images:
