Shock Testing Equipment , Vibration Testing Machine Meet ASTM D999 and ASTM D4728

China Shock Testing Equipment , Vibration Testing Machine Meet ASTM D999 and ASTM D4728 supplier
Shock Testing Equipment , Vibration Testing Machine Meet ASTM D999 and ASTM D4728 supplier Shock Testing Equipment , Vibration Testing Machine Meet ASTM D999 and ASTM D4728 supplier Shock Testing Equipment , Vibration Testing Machine Meet ASTM D999 and ASTM D4728 supplier

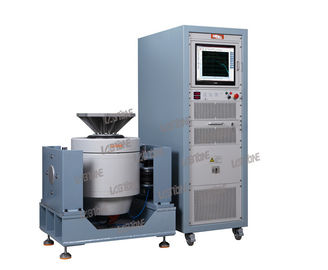

Large Image :  Shock Testing Equipment , Vibration Testing Machine Meet ASTM D999 and ASTM D4728

Product Details:

Place of Origin: Dongguang, China
Brand Name: LABTONE
Certification: CE / ISO
Model Number: EV206

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Plywood Case with Vacuum Packing
Delivery Time: 45 Working Days
Payment Terms: T/T, L/C
Supply Ability: 15 Sets / Month
Contact Now
Detailed Product Description
Max Sine Force: 600 Kg.f Frequency Range: 1-2500 Hz
Cooling Method: Forced Air Cooling Test Type: Sine, Random, Shock
Armature Mass: 6 Kg Power Supply: AC 380V 50Hz



Vibration and Shock Testing Equipment Meet ASTM D999 and ASTM D4728

600kg.f Vibration Test System -Technical Specifica...





Vibration Test Systems



Vibration test is a process of exciting or shocking some part or device to observe its reaction in real environment. Vibration test is widely applied in many fields, ranging from circuit board, airplane, ship, rocket, missile, automobile, household appliance and other industrial products.



Labtone can offer you the whole vibration and testing proposal, and provide you with the quality certificates of products according to national and international standards, including GB, GJB, UL, JIS, DIN, ISO, BS, MIL, IEC and ASTM standards.





Specifications: EV203-EV220



Model EV203 EV206 EV210 EV220
Vibration Generator VG300/40 VG300/50 VG1000/50 VG2000/50
Frequency Range (Hz) 1-2500 1-3000 1-3000 1-3000

Max Exiting Force (kg.f)

300 600 1000 2000

Max. Displacement

(mmp-p)

38 50.8 50.8 50.8
Max. Acceleration(g) 100 100 100 100
Max. Velocity(cm/s) 120 200 200 200
Payload(kg) 120 200 200 300
Armature Mass(kg) 3 6 10 20
Armature Diameter(mm) φ150 φ200 φ240 φ320
Cooling Method Forced Air Cooling
Vibration Generator Weight(kg) 460 920 1100 1600
Vibration Generator Dimension L*W*H(MM) 750*555*670 800*600*710 845*685*840 1200*870*1100
Power Amplifier Amp3k Amp6k Amp12k Amp22k
Cooling Method Forced Air Cooling
Power Amplifier Weight(kg) 250 320 350 500
Power Amplifier Dimension L*W*H(MM) 800*550*1250 800*550*1250 800*550*1520 800*550*1520
Utility
Requirements
3-phase AC380V ±10% 50Hz
Aggregate Capacity(KW) 9 20 25 35






Features:

  • Strength of the suspension system and linear motion guiding, strong carrying capacity, good guiding functions, high stability.
  • Perfect performance on amplitude variation.
  • High efficient on D Class power conversion, 3 - Sigma peak current, provide the optimization of power consumption and minimum harmonic distortion.
  • Rapid self-test diagnostics and chain safeguard, high high safety and reliability
  • Air gasbag isolation damping device realize the the vibration table with no need for special foundation. Perfect reappearance vibration waveform and the reduction of vibration transmission
  • Different application on the vertical and horizontal tables.
  • Simple operation for the controller.



Introduction to digital vibration controller



The vibration controller is of advanced distribution structure system, and closed-loop control is achieved by DSP processor. PC is independent of control loop to ensure real-time and high efficiency of the control system so as to timely and rapidly respond to any changes of the test system, and ensure control stability and high precision. 32-bit floating-point DSP processor with primary frequency up to 300MHz and 24-bit resolution ADC/DAC are used for hardware in coordination with high precision floating-point digital filtering and low noise design technology of hardware circuit. The dynamic random control range of the controller is more than 90dB and the signal to noise ratio is more than 100dB.





Service commitment and support:



Pre-sales service Technical Advisory;
Equipment Selection;
Product testing scheme.
In-sales service Close and effective communication with clients;
Timely and effectively solve the related issues.
After-sales service Warranty period of one year ;
Equipment installation and debugging;
Technical training;
Feedback within 2 hours after get the call.
Others Maintenance, modification and upgrade for the machine;
Design and producing for special fixtures and table

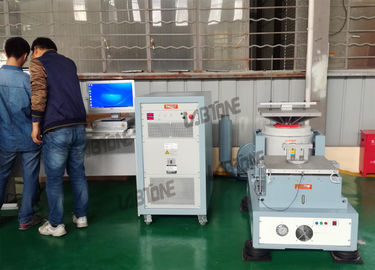

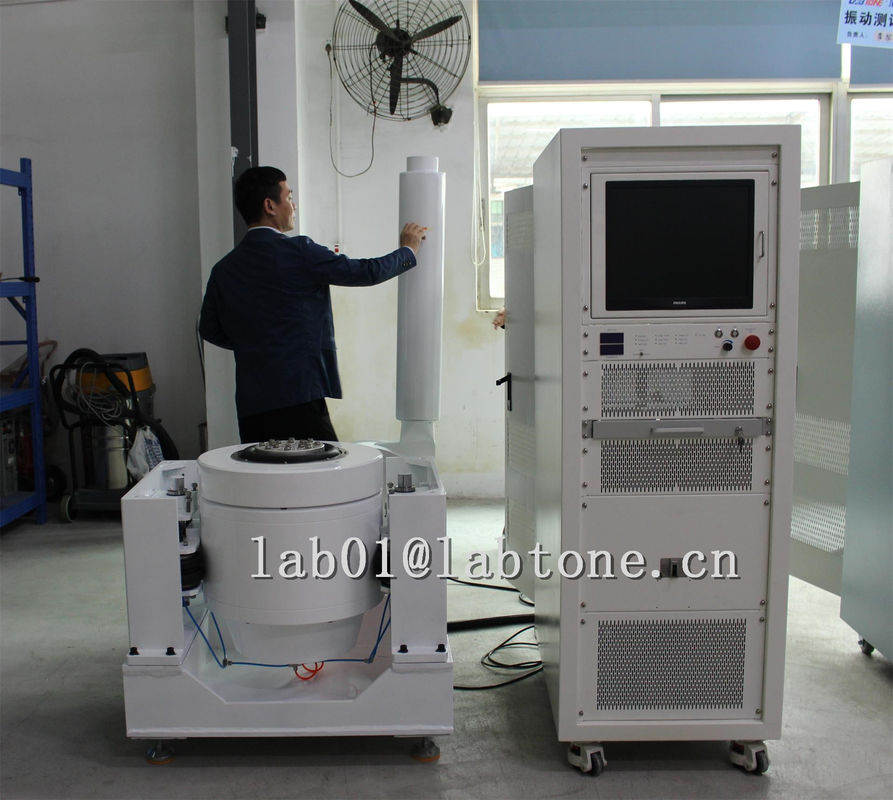

Detailed Pictures:



Shock Testing Equipment , Vibration Testing Machine Meet ASTM D999 and ASTM D4728
